Metal Deck Machine USA Steel Floor Deck Roll Forming Machine Steel Deck Sheet Roll Former1. Description of Floor Deck Sheet Roofing MachineThere are different
Detailed Content
Metal Deck Machine USA Steel Floor Deck Roll Forming Machine Steel Deck Sheet Roll Former
1. Description of Floor Deck Sheet Roofing Machine
There are different steel deck roll forming machines manufacturing metal decks for different applications, and the configuration or components of each machine vary accordingly, for example, some deck machine have embossing rolling tools while some others do not. Generally a metal deck or steel deck roll forming machine consists of a 8 TON manual de-coiler, feeding guide, an electrical entry shearing with 0.75KW motor power,a roll forming part including an embossing tools, transmission system, hydraulic system, a PLC control cabinet, a hydraulic oil pump and runout tables to support the final products. sometimes customer will choose 10 ton hydraulic decoiler and 12m automatic stacker to match with the floor deck sheet machine.
2. Advantage of Floor Deck Sheet Roofing Machine
- The steel decks are flat, high precision within 1mm, and the effective width is controlled within 5mm;
- Adopt 85-95mm solid shaft and H-shaped steel as the underframe, so that the machine can withstand long-term production without deformation of the machine, thus ensuring long-term machine use life;
- The rollers are processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of the final deck.
- Our cut blade frame is stress-relieved to ensure that it is not deformed during long-term production and makes the final product smooth.
- Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the machine, and the cutting length tolerance is within ± 2mm
- Forming speed can reach 15m per minute
- The machine weighs about 15-18 tons

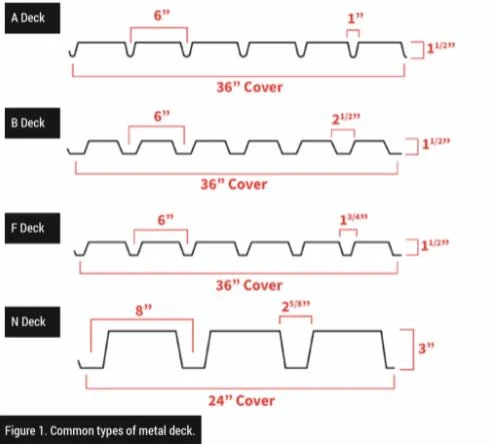

3. Profile drawing of Floor Deck Sheet Roofing Machine

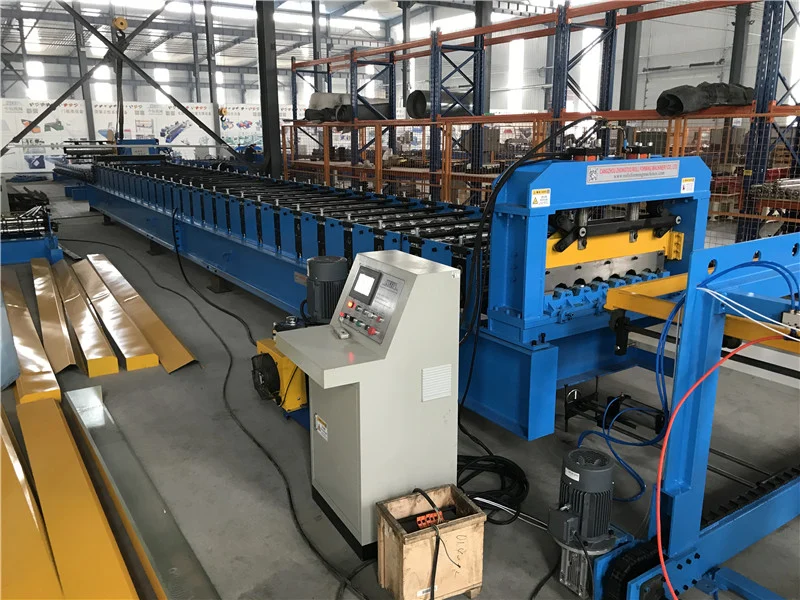

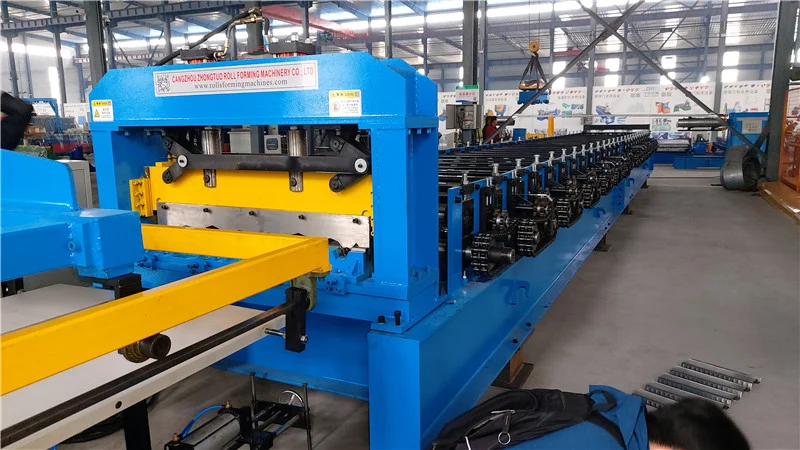

3. Photo of Floor Deck Sheet Roofing Machine
5. Video of Floor Deck Sheet Roofing Machine
