American b deck composite floor deck roll forming machine metal deck roll former

American b deck composite floor deck roll forming machine metal deck roll former

B Deck is usuallly produced using 0.8-1.5mm(Gauge 22, Gauge 20, Gauge 18, Gauge 16) thickness galvanized steel.

B Deck is a conventional metal deck profile in the USA which meets recent North American Specification(ANSI standard). B Deck is usuallly produced using 0.8-1.5mm(Gauge 22, Gauge 20, Gauge 18, Gauge 16) thickness galvanized steel, it is used as construction floor system for support concrete cement.

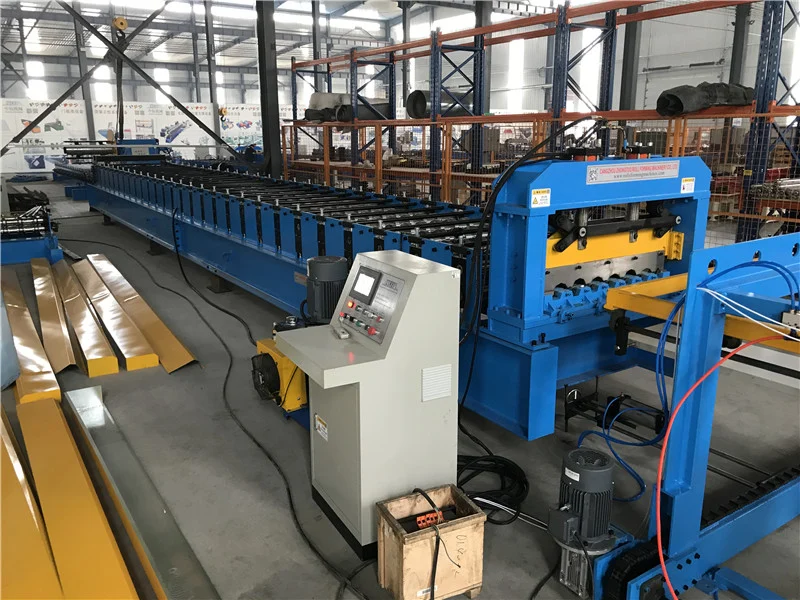

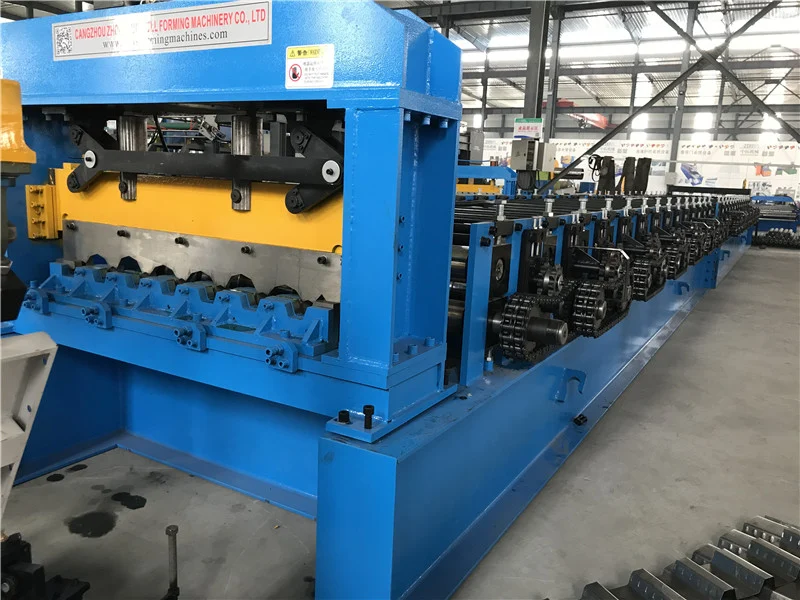

Our roll forming machine uses 28 forming stations to make perfect B Deck profile, if the yield strength of steel material is higher than 345MPa, it will need more forming stations. Our machine body is sturdy and durable. The machine body is about 20 meters long, it can be disassembled into 2 sections for easy transportation and installation.

Zhongtuo machinery also produce other types of metal deck roll forming machines, any interest, welcome to contact us.


                                               B deck Roll Forming Machine
1.Raw material Thickness 0.8-1.5mm
2.Decoiler Operation automatic
Weight apacity 10 ton
3.Main body Roller station 28 stations
Diameter of shaft 90mm
Material of rollers 45# steel
Material of shaft 45# steel
Frame 20mm
Chain 2inch
4.Cutter Operate auto
Blade Material cr12mov
5. Power Voltage customized
Power 22kw
6.Control system Electric Box customized/Delta
Language English Chinese/customized
7.Forming Speed Forming Speed 15-20m/min
