Dovetail style floor deck roll forming machine

Dovetail-shaped floor decks are much stronger than other kinds of floor decks because of their unusual shape, allowing for more sound absorbing concrete materials than other deck design. In addition, dovetail-shaped decks are equipped with embossed ribs. The decks form a very strong, permanent bond with the concrete poured onto it, and act as reinforcement for the slab.
Take this video for example of floor deck machine working process. And if you are interested in our products, please contact us right away.

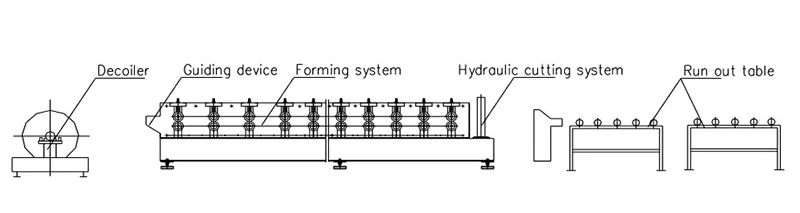

Here is a drawing profile of dovetail-style floor deck roll forming machine for your reference:

Working process is displayed here:

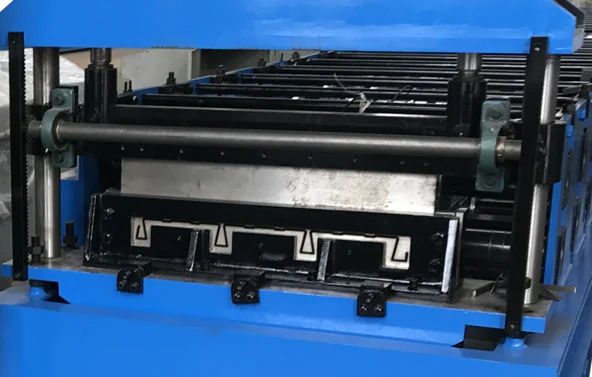

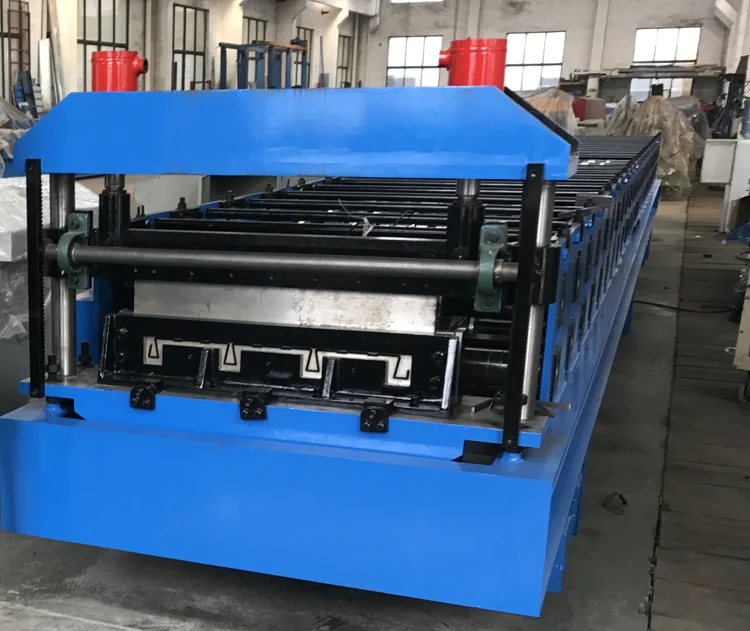

Next, more details of the machine will be showed for your reference:

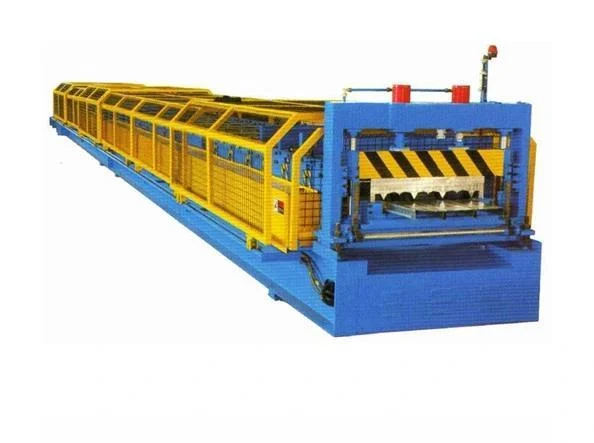

1. Dovetail-shaped floor deck roll forming machine is displayed as a whole in this picture.

The machine enjoys long lifetime and easy to operate. It has been equipped with PLC controlling system.

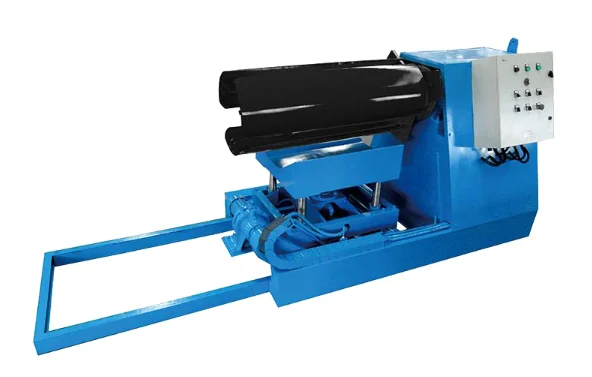

DECOILER

1. Max. Width: 1250 mm
2. Inner Diameter: Φ450 – Φ550 mm
3. Out Diameter: 1500 mm
4. Max. Loading Capacity: 5000 kgs

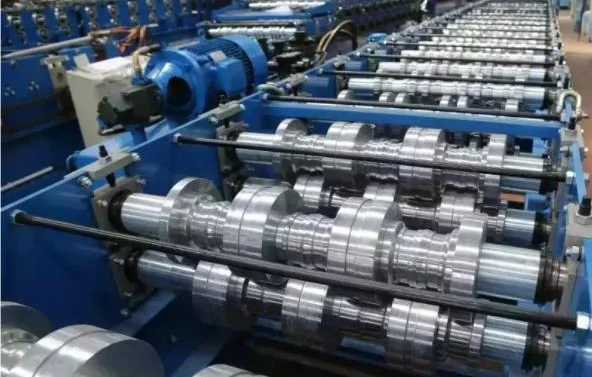

ROLLER PART

1. Material Thickness: 0.3-0.8 mm PPGI and GI
2. NO. of roller Stations:32groups
3. Material for Rollers: high grade GCR15 quencing steel polished and coated with chrome HRC55-60°
4. Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
5. Diameter of shaft: 90mm
6. Frame panel thickness:30mm
7. Bottom frame: 36# H-section steel
8. Motor Power: 3kw
9. Driven type:0.6"Chain

CUT-OFF DEVICE

1. Material for Cut-Off Modular:Cr12 steel after treatment
2. Hardness for Heat Treatment:HRC55 – 60°
3. Cut-Off Type: Hydraulic, Automatic Cut-Off
4. Motor for Hydraulic Stand: 3kW

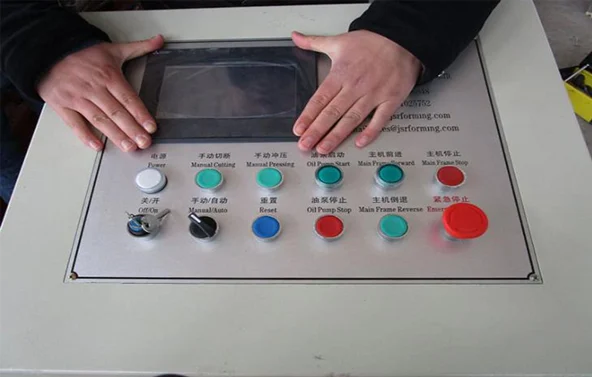

PLC CONTROL BOX

1. Type: PLC Frequency Control System with touch screen
2. PLC Brand: Delta
3. Encoder Brand: Omron
4. Length Error: ±2mm
5. Language: English and Chinese
6. Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
