Metal Decking Roll Forming Machine is designed to make the metal decking machine in batch fully automatically.
Detailed Content

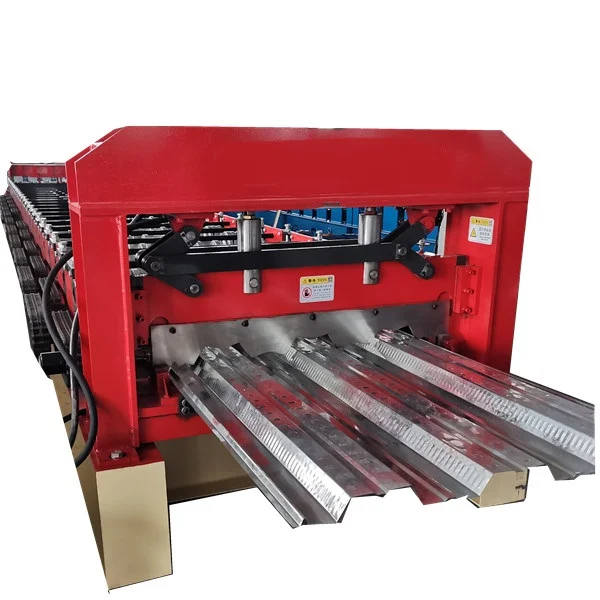

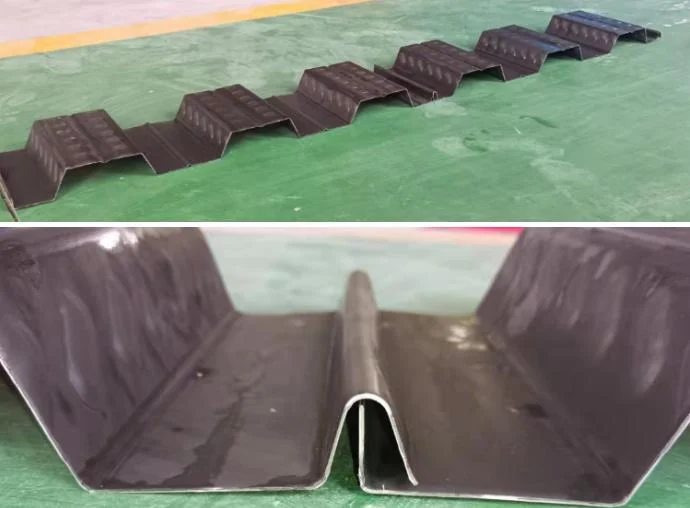

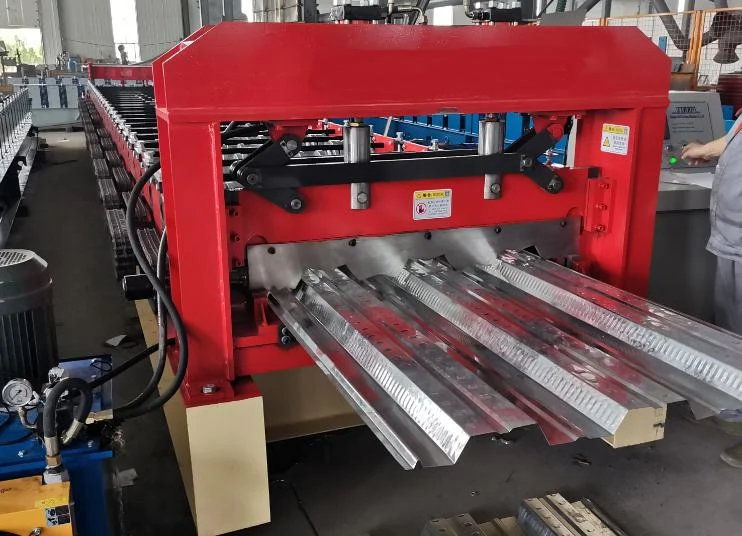

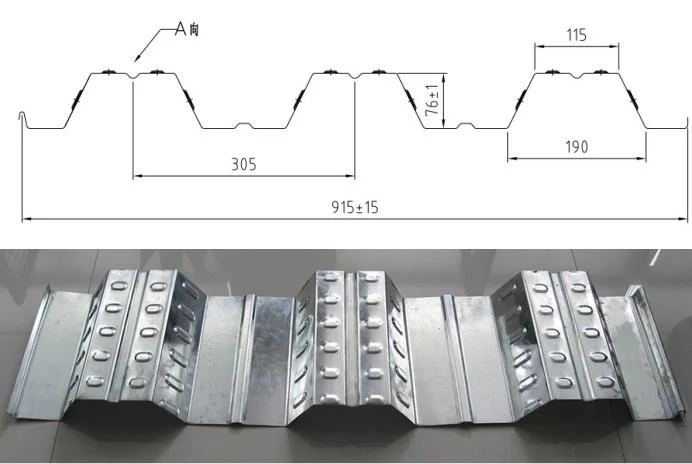

Metal Decking Roll Forming Machine is designed to make the metal decking machine in batch fully automatically. The metal decks are manufactured generally for the construction of pitched, flat, or curved roofing almost on all kinds of buildings; The metal decking machine is composed by embarrassments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system. Here I take a random drawing profile of metal decking for your reference:
When overlapping:
Metal Decking Roll Forming Machine Design:
| Machine Specifications of metal decking rolling forming machine | |
| Weight | About 15000kgs |
| Size | About 16m x 1.8m x 1.5m (length x width x height) |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 0.8-1.2mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Diameter of forming rollers shafts | 95mm but the embossing shaft is 120mm |
| Roll Forming Speed | 10-15/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 3x11kw for give power more evenly |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
More details of the metal decking rolling forming machine:

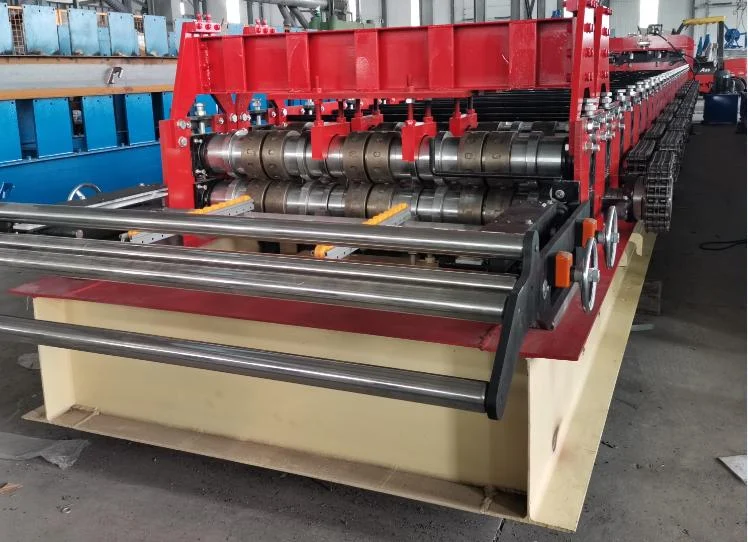

- Leveling part with the embossing rollers, strong shaft for long time to use. The embossing roller not only stronger than others, also we use the holder to protect the shaft of the embossing rollers.
2.Leveling part also designed with the plastic roller, either for feeding coil more easily or for not scratch the surface of the coil.
3.For the transmission we use the double chain.

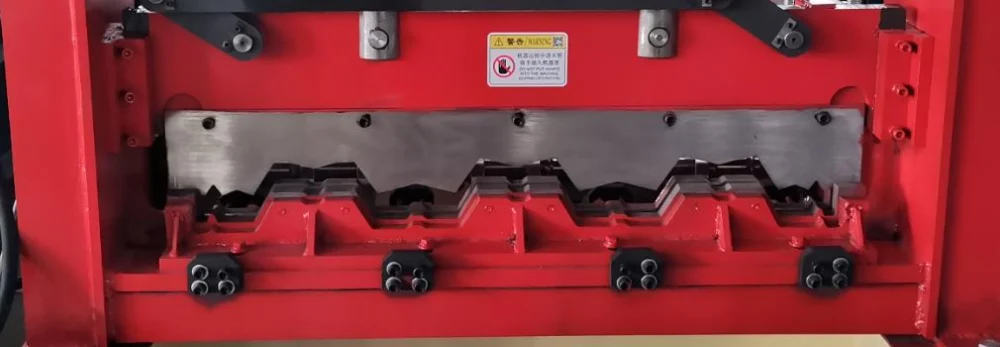

4.For the shearing we design using molding frame structure in the Mechanical way sliding, then it can protect the cutter for using a long time.

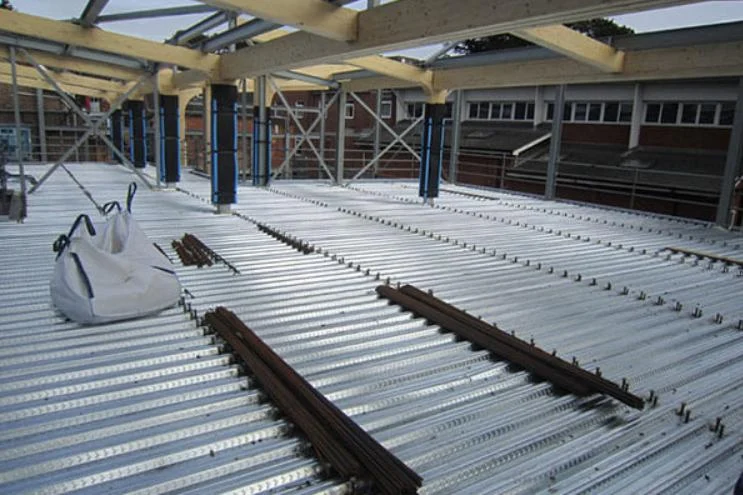

Where to use of the metal decking sheet and why it became popular
Steel deck or floor deck are widely use nowadays, for following advantage:
1.Reduce steel frame weight
2.No need formwork for concreting
3.Install speed faster
4.Safe working platform for workers.
