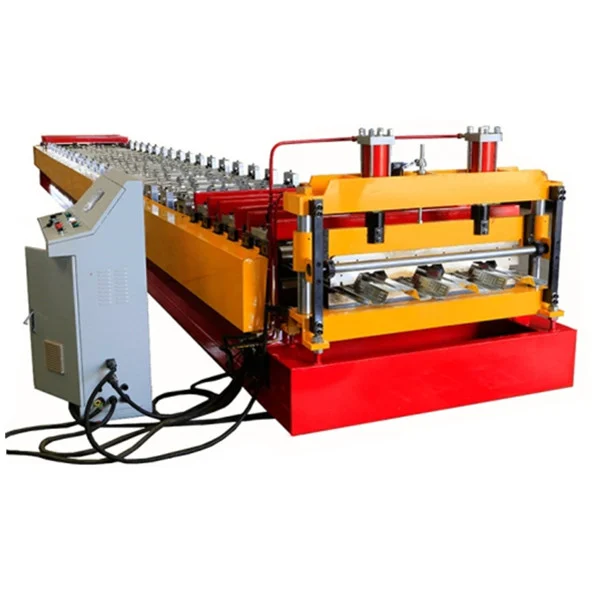

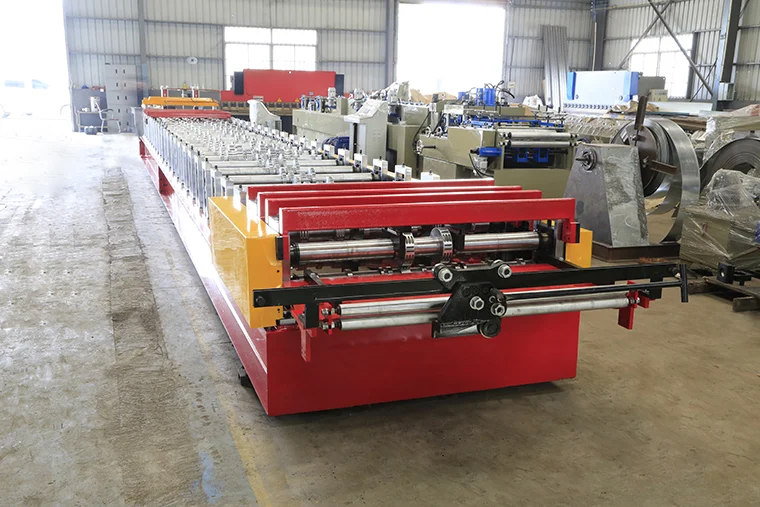

Floor Deck Forming Machine For ZT76-320-960

Floor Deck Forming Machine For ZT76-320-960

The drawing profile as follow:

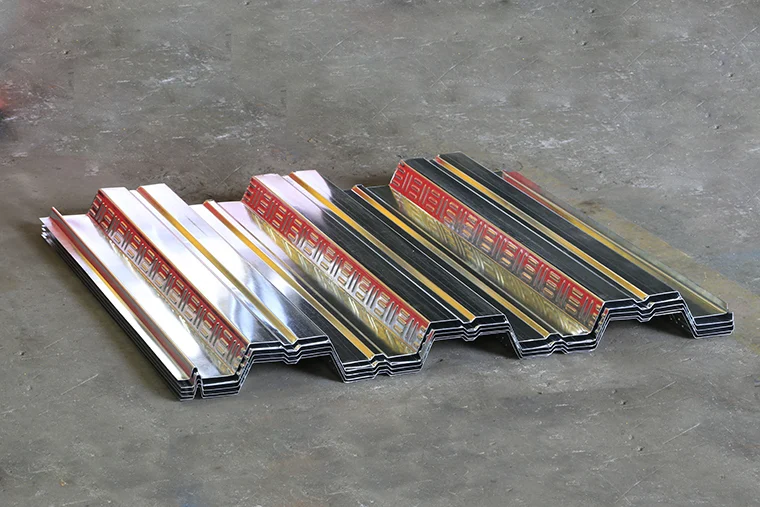

The finished product show:

The advantages of floor decking machine are as follows:
1.The machine produced floor decking sheet have the features of low cost, light weight but highstrength
2.short building period, and re-cycle use.2.Save material , no waste.
3.Easy operation, low maintenance cost
4.One machine for 3 models for optional(by changing spacer)2.Detailed Images of YX76-960 floor decking forming machine
Machine Parts
1)ZT76-960 floor decking machine manual pre-cutter
Only for cutting the first piece and the end of piece of the sheet.For easy operation and save material:The precutter is connected with PLC control system,PLC is calculating profile length within roll forming.Once material is required to change,PLC is calculating the length for total quantity and remind operator,production finishes and able to manual shearing material before roll forming so as to change material fornew production.It is the advanced function and good for production to save material, no waste.

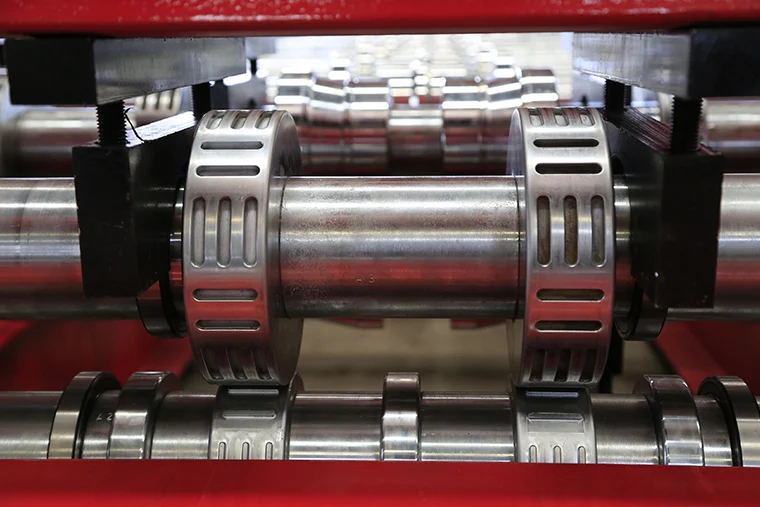

2)ZT76-960 floor decking machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.with Hard-Chrome Coating for long working life.
Body framemade from 400# H type steel by welding
The material for Embossing roller:bearing steel GCr15, heat treament

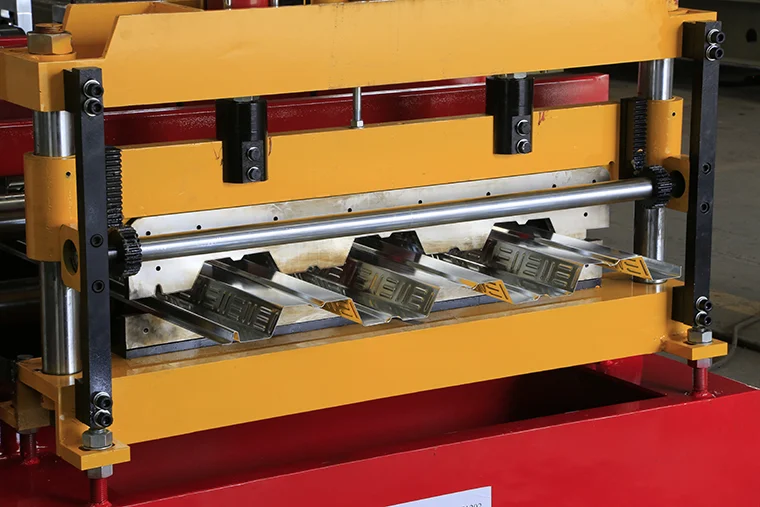

3)ZT76-960 floor decking machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by weldinghydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa
