Metal deck roll forming machine
Metal deck roll forming machine
Metal Floor Deck Machine is for producing metal floor decking as per drawings. The thickness is 0.8-1.5mm as usual.
Detailed Content
Metal deck roll forming machine for Mexico
Metal Floor Deck Machine is for producing metal floor decking as per drawings. The thickness is 0.8-1.5mm as usual Zhongtuo metal deck roll forming machine is composed by 10 Ton Hydraulic Uncoiler with Coil Car, Roll Forming Machine Mill 2 parts for easy loading), Hydraulic shearing system, hydraulic Station ,controlled Box ( All electric elements conform to CE standard.)

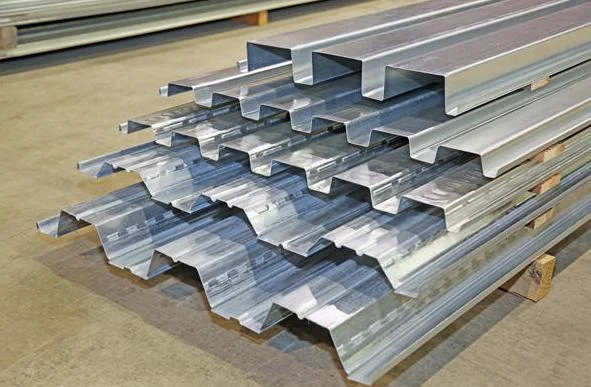

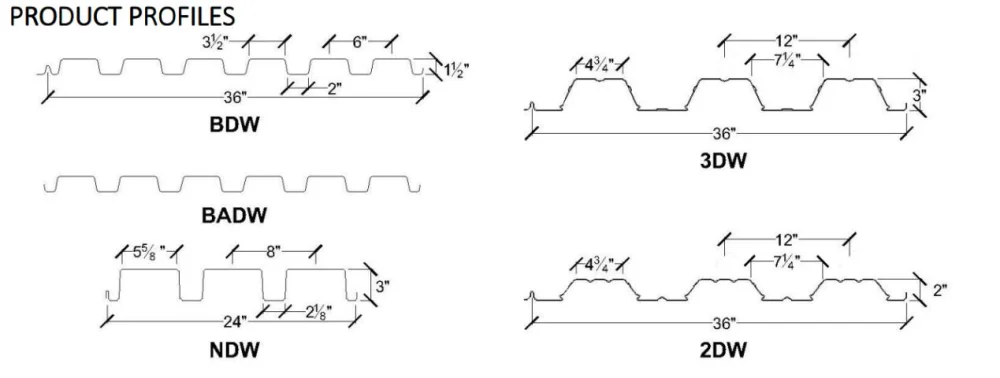

Metal deck there are two many types, here I show me for example;

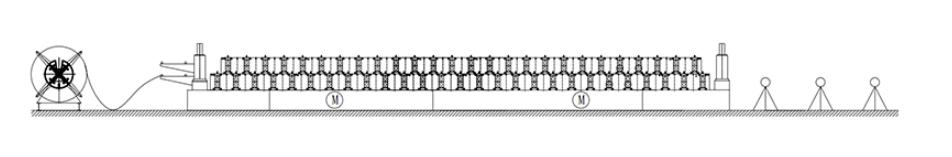

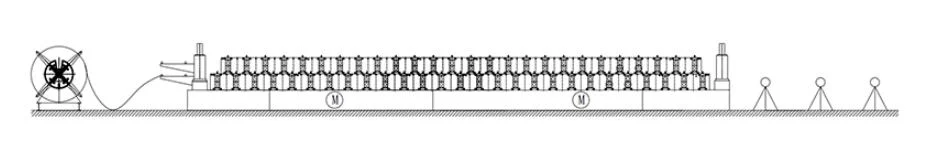

Metal deck roll forming machine design:
Metal deck roll forming machine Work Flow .
5T Hydraulic Decoiler-→Manual Pre-Cutter Device- + Feeding Guide Device-→Roll Forming System- >Hydraulic Post Cutter Device-→AUTO Exit Rack
Advantages of Metal Floor Deck Machine are as follows:
1.Floor decking sheet produced by this machine has the features of low cost , light weight buy high strength ,shorten building period and re-cycle use .
2.Save material with no waste
3. Easy operation , low maintenance cost
4. It is easy for installation.
| Metal decking machine | Forming steps | 28 steps |
| Shaft diameter | 90mm | |
| Design type | Middle plate welded | |
| Machine frame thickness | 20mm | |
| Machine frame | 400# H steel welded | |
| roller material | 45# steel, surface hard chromium plating. | |
| shaft material | 45# steel | |
| Work speed including shearing | 8-12m/min | |
| Transport | By chains of 1.25mm | |
| Power of main machine | 15kw |

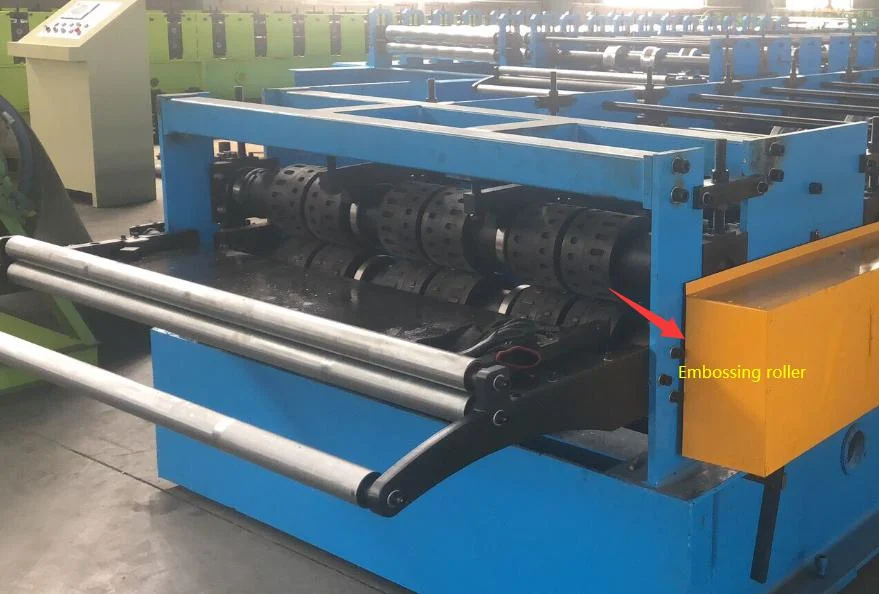

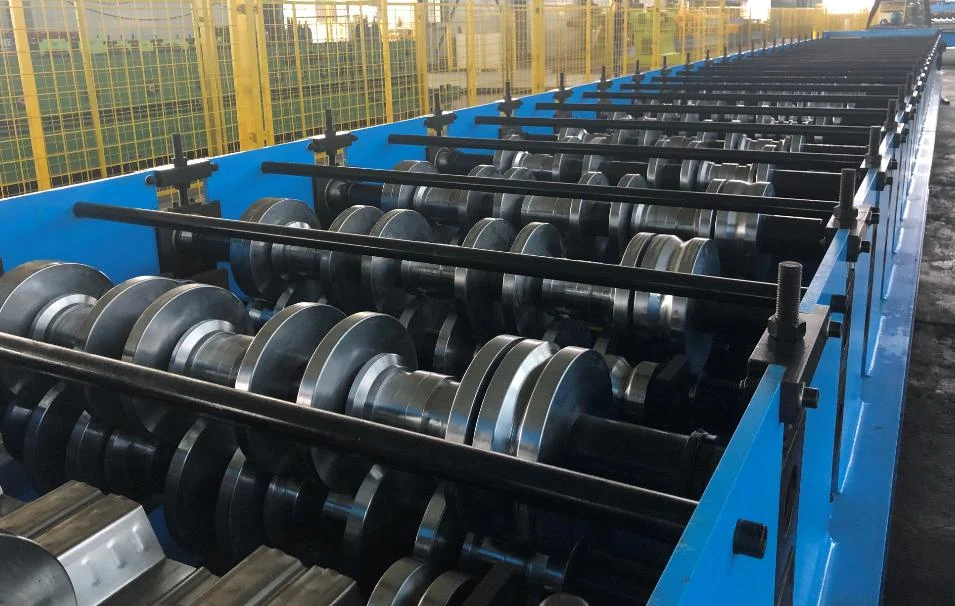

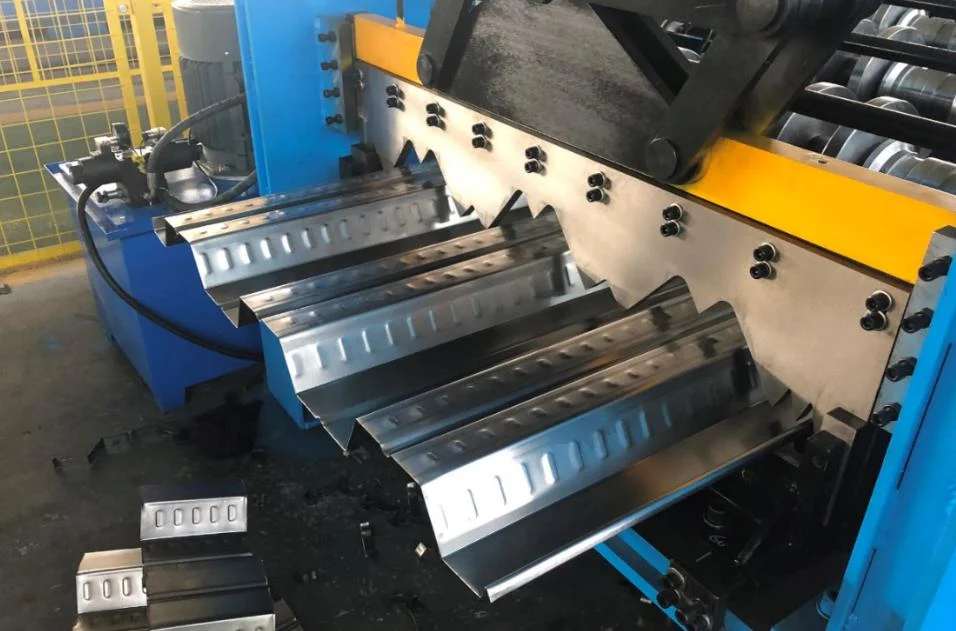

More details of the Metal deck roll forming machine:

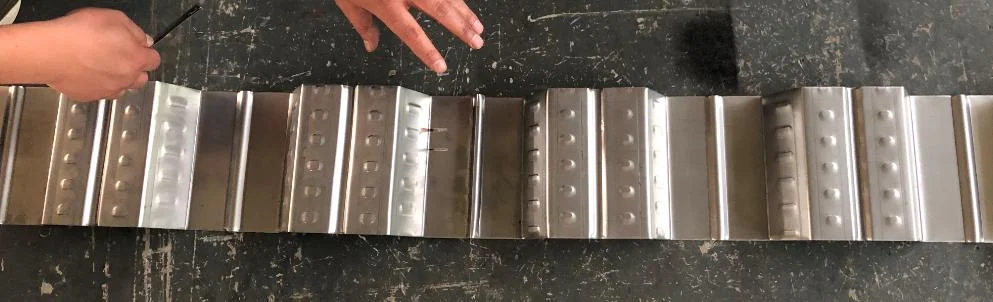

How to test the metal decking quality

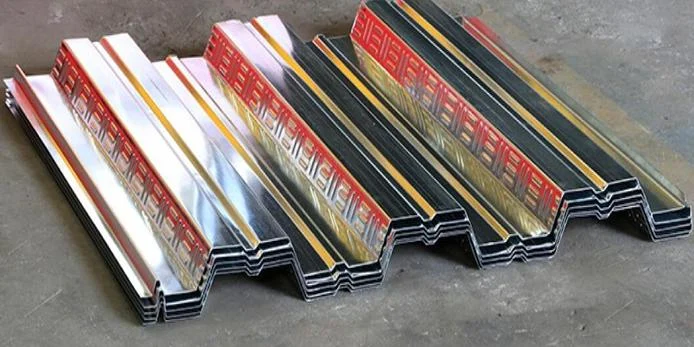

Two pieces of metal decking overlapping.

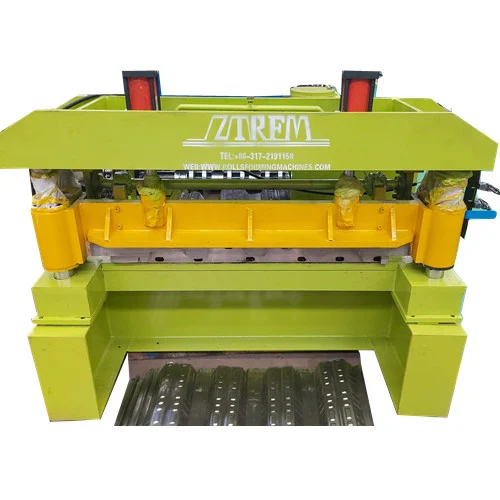

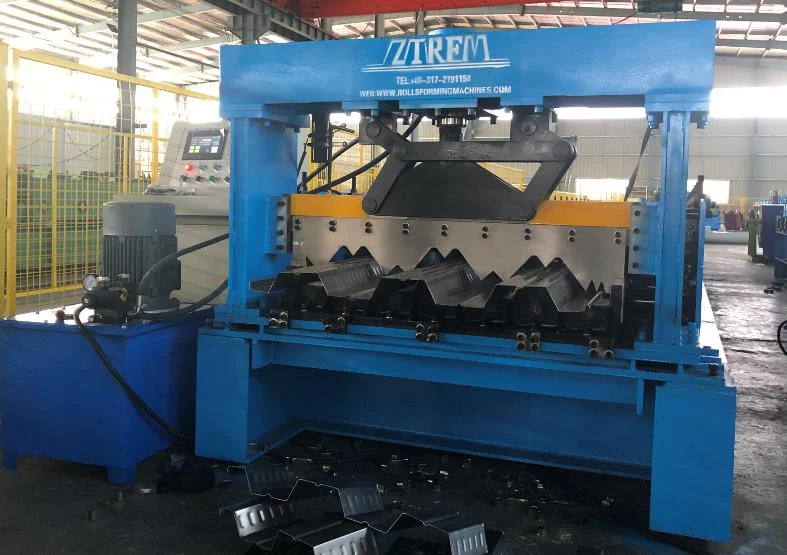

Metal deck roll forming machine for Mexico:
Here is the machine working video for your reference:

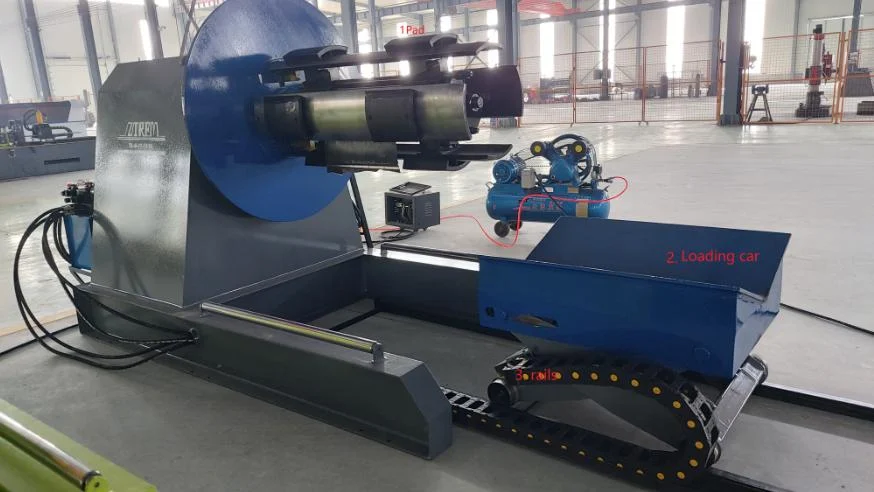

If you need the hydraulic decoiler, here is the picture for your reference:
