Steel deck floor forming machines have been designed for the production of various types of metal decks which are usually applied for roofing and floor industries, and sometimes for bridge construction as well.
Detailed Content

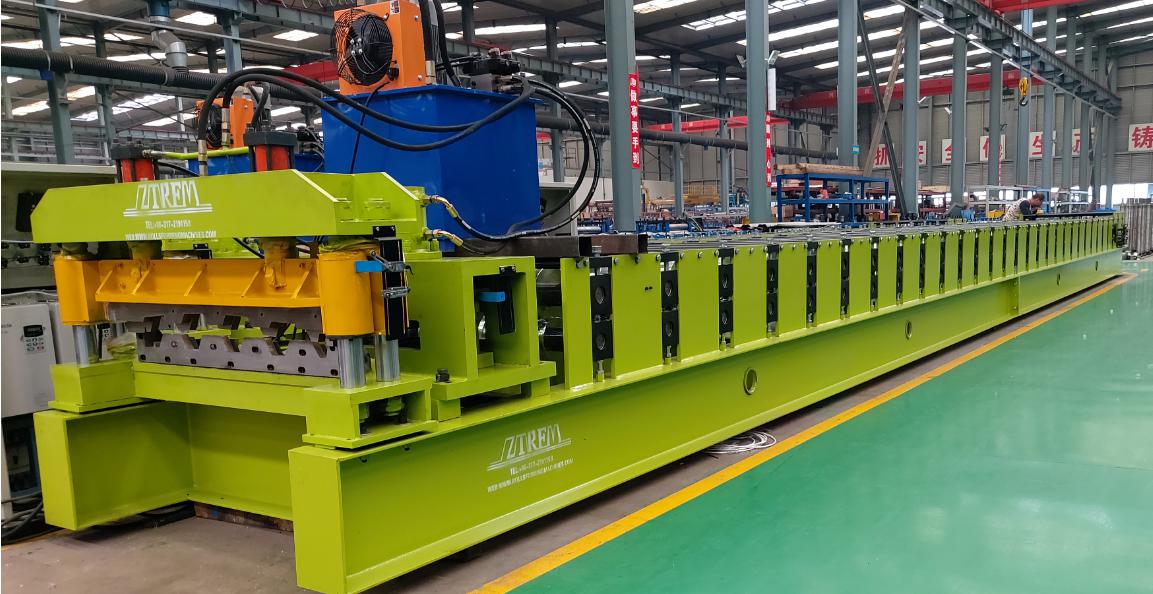

Steel Decking Floor Roll Forming Machine
Steel deck floor forming machines have been designed for the production of various types of metal decks which are usually applied for roofing and floor industries, and sometimes for bridge construction as well. Zhongtuo Steel Decking Floor Roll Forming Machine allow you to do the batch production of metal decking in batch fully automatically. Floor decking machine is designed according to the customer drawing profiles, here I list some of them for your reference:
Steel Decking Floor Roll Forming Machine design:
Steel Decking Floor Roll Forming Machine Working Flow:
Steel Decking Floor Roll Forming Machine Parameters for your reference:
Steel deck floor forming machines have been designed for the production of various types of metal decks which are usually applied for roofing and floor industries, and sometimes for bridge construction as well. Zhongtuo Steel Decking Floor Roll Forming Machine allow you to do the batch production of metal decking in batch fully automatically. Floor decking machine is designed according to the customer drawing profiles, here I list some of them for your reference:

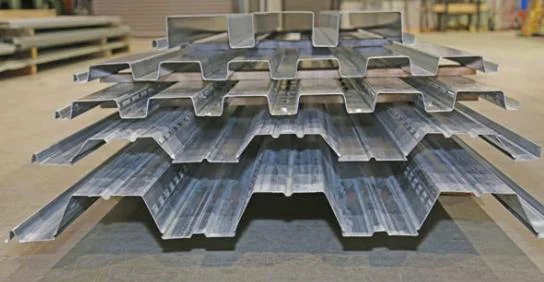

Steel Decking Floor Roll Forming Machine design:

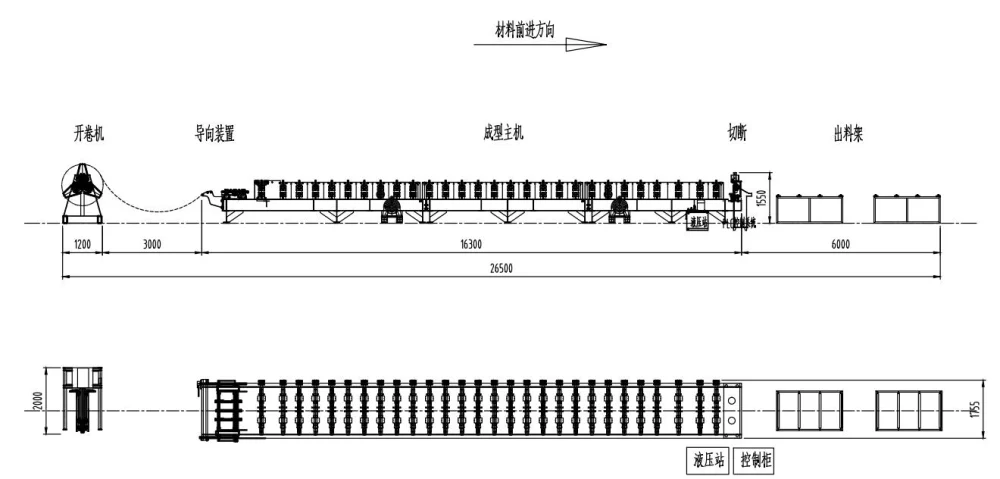

Steel Decking Floor Roll Forming Machine Working Flow:
Steel Decking Floor Roll Forming Machine Parameters for your reference:
| Main Forming machine |
Forming steps | 32 steps |
| Shaft diameter | 90mm | |
| Design type | Middle plate welded | |
| Machine frame thickness | 20mm | |
| Machine frame | 400# H steel welded | |
| roller material | 45# steel, surface hard chromium plating. | |
| shaft material | 45# steel | |
| Work speed including shearing | 8-12m/min | |
| Transport | By chains of 1.25mm | |
| Power of main machine | 15kw |

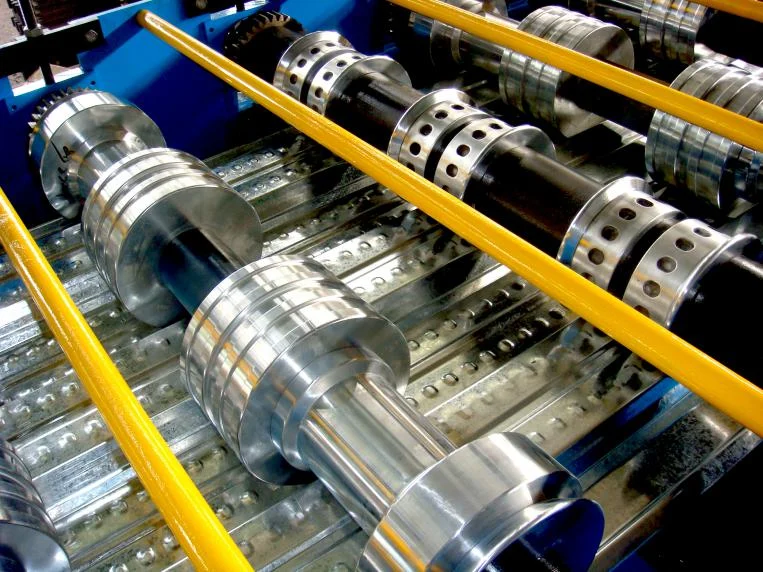

Steel Decking Floor Roll Forming Machine Embossing rollers
Rollers manufactured from high quality GCR15 steel, CNC lathes, Heat Treatment.
with black treatment time and time again or Hard-Chrome Coating for options.

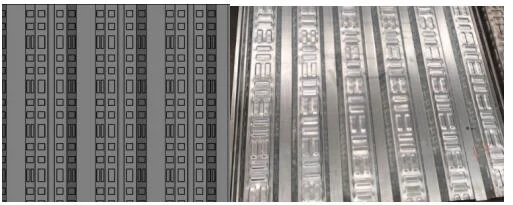

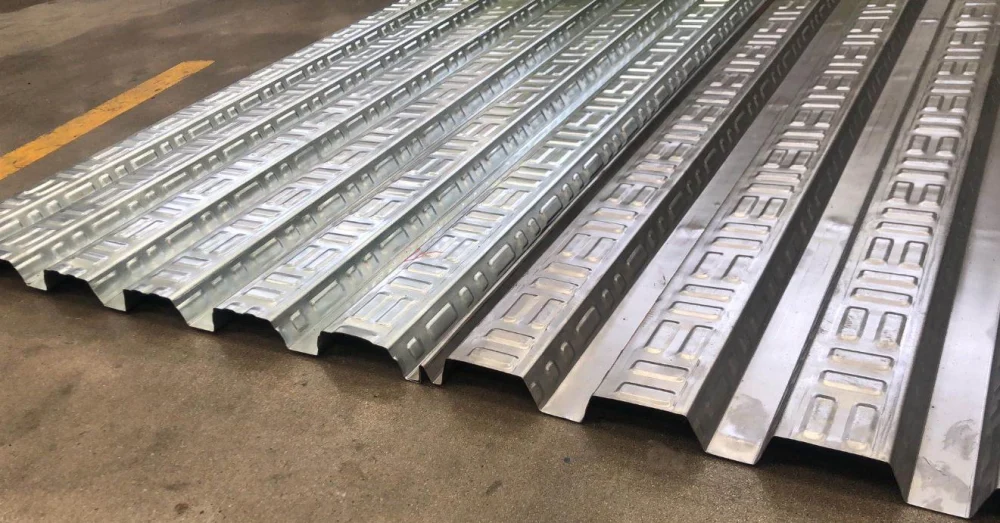

Body frame made from 350# H type steel by welding. And the metal decking embossing could be designed according to customer requirement:
Another decking of embossing for your reference:
Why choose Zhongtuo metal Steel Decking Floor Roll Forming Machine

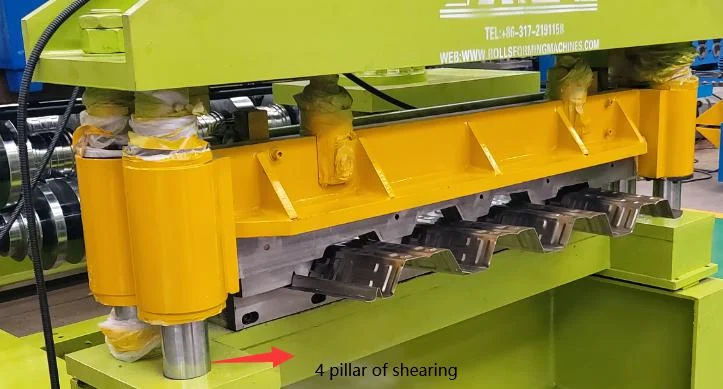

- Strong 4 pillar frame of post cutting. Meanwhile we design with the strong holder of cutting blade and then it can make the cutting blade long time to use. The cutting blade is much more thicker than the normal one.

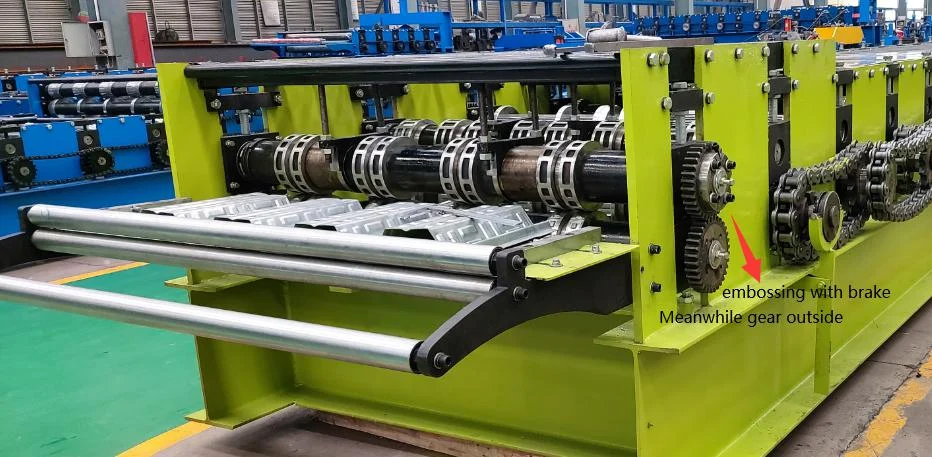

- For the metal decking, embossing rollers are quite important.So we design with brake and make gear outside and then it can feed coil to machine easily. With and without embossing it is easy to be adjusted.
- For the testing, we have seriously process.
Steel Decking Floor Roll Forming Machine working video for your reference:
Steel Decking Floor Roll Forming Machine installation in Peru, now you can check comments from our customer to see our machine working status.
