Roll forming machine coil winder 5 Tons hydraulic decoiler with loading car

The hydraulic decoiler is used to lift up and down, move forward and back to make it easy to load the coils on the decoiler.

Hydraulic controls lifting, motor drives moving. The car is controlled on the auxiliary control panel.

It's working speed about 6-7 m/min, when the coils on the decoiler, the car will return back to the start position.

It can also carry back the unfinished coil from decoiler.

The min cap between the coil car and the decoiler front should be 500 mm to avoid any problems during coil loading.

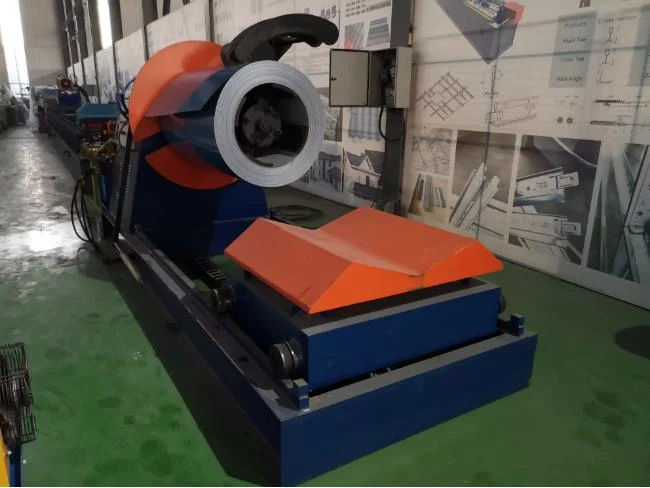

The car can move levelly and vertically, which is convenient for putting the steel coils into the decoiler.

It is driven vertically by hydraulic cylinder with the guide pillars.

The level movement is driven by cycloid motor.

The actual capacity can reach to 7 Tons.

Main specifications:

Automatically feeding and trasmission power 7.5 KW

Hydraulic inner tight

Hydraulic power: 4 KW

All the set up drawings views (plan, elevation, side, etc) with actual dimensions of the decoiler, coil car etc are to be sent in AUTOCAD format once order is released.

About the hydraulic decoiler, what we also can do for you

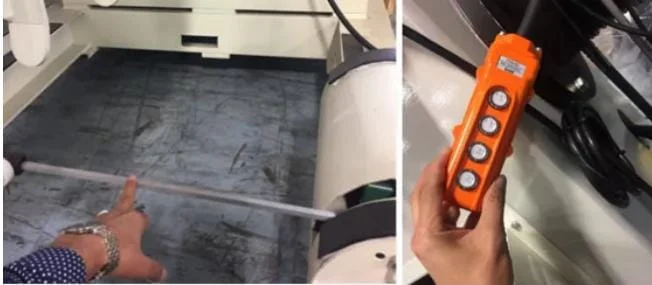

Remotor for control by hand easy to use.

We will add sensor.

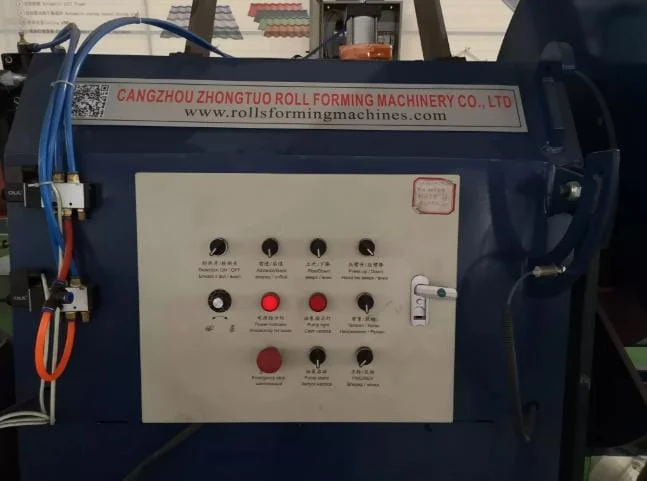

We will add buttons for controlling on decoiler.

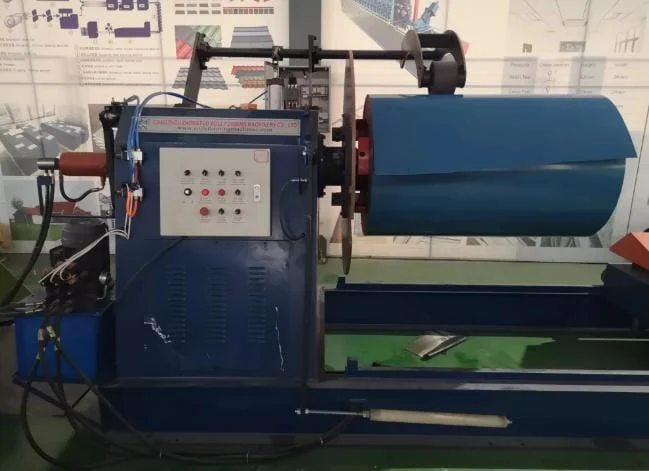

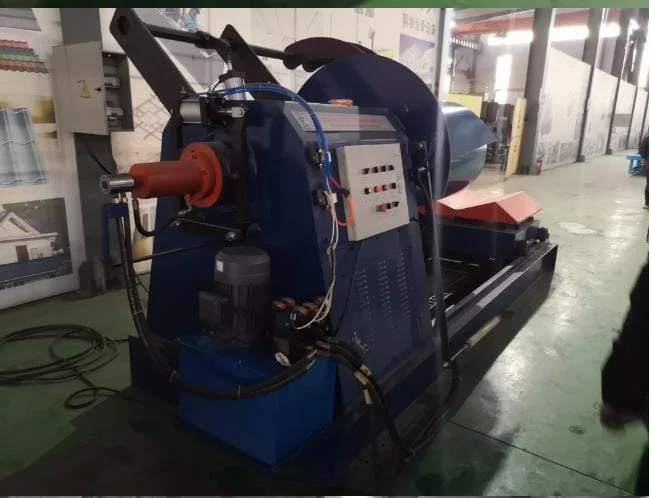

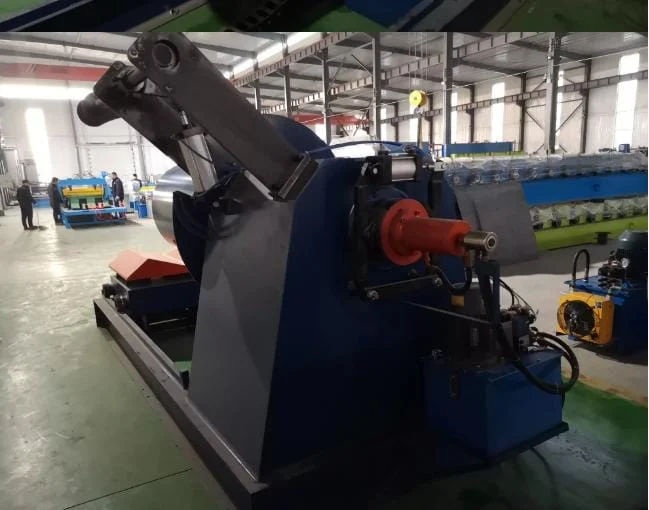

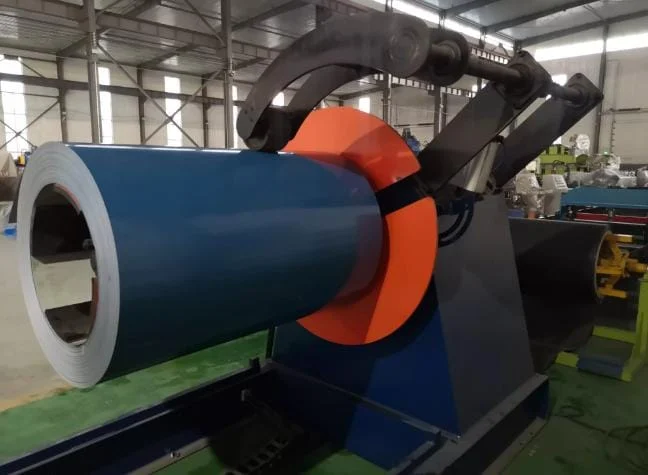

More photos about 5 Tons hydraulic decoiler:
