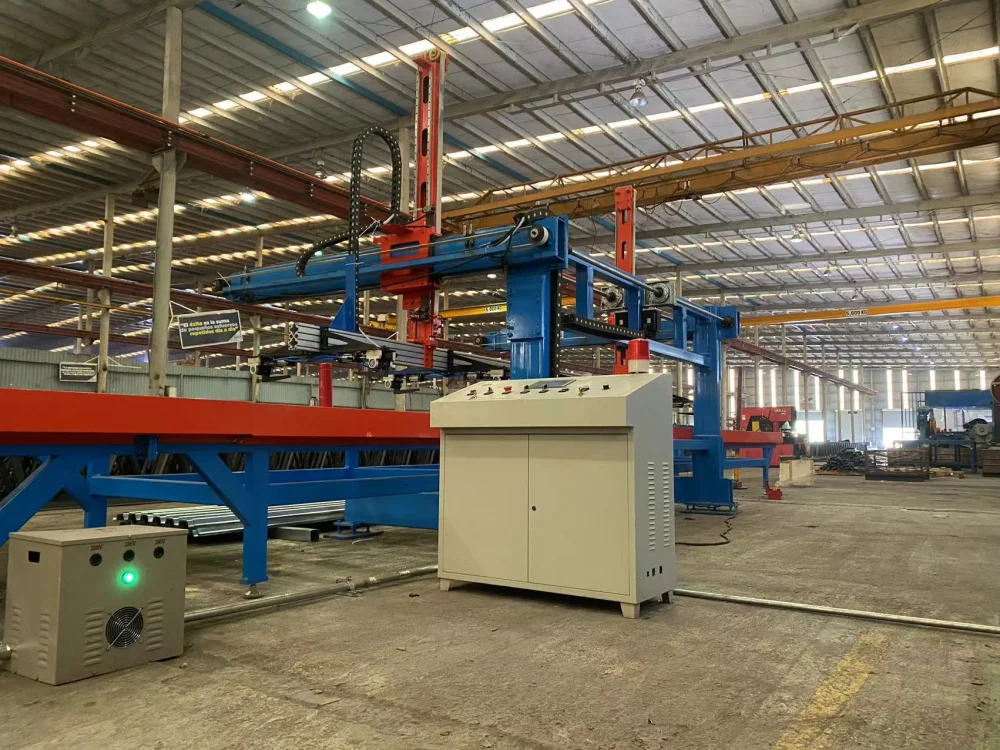

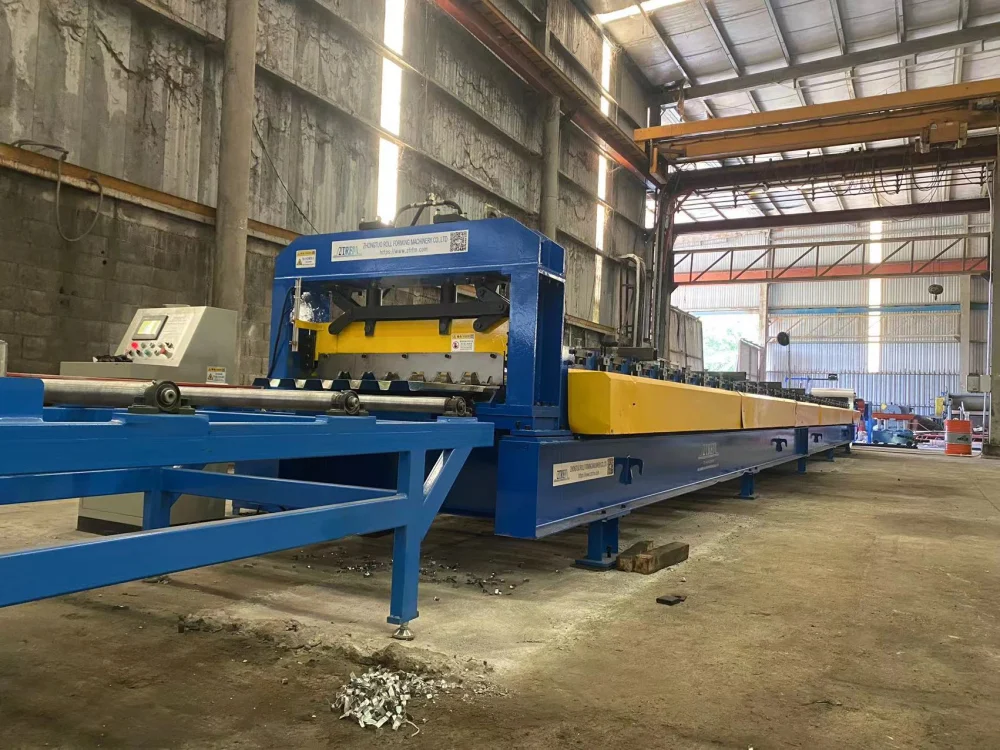

Mexico Floor Deck Roll Forming Machine with 10T Hydraulic Decoiler and Automatic Servo Stacker

Welcome to use the cold bending machine control system (decking floor roll forming machine)

1. System compositionThe system consists of a PLC, a touch screen, two limit switches, two encoder counters and several remote modules and electrical control circuits.
2. Second system function1. Multi-batch settings can be carried out.
   2. Adopting Chinese and English display panel, touch-type digital key input operation is simple and easy to understand.
   3. The length of the plate is automatically tracked by the encoder.
   4. The operation of the entire system, the cutting process is carried out automatically, and the working status of the machine is dynamically displayed on the display panel.
   5. Power-off storage: Memorize the work batch number before power-off and the count of already cut boards, and re-power on to continue the original work operation.
   6. Can individually control the action of the cutter, the oil pump and the action of the host
   Panel and operating instructions
   7. It can carry out simple fault self-detection.
   1. If there is an abnormality or alarm, stop the oil pump immediately and eliminate the fault.

1. Touch screen parameter setting and data setting

1. Click on Chinese on the screen. Click to enter the Chinese screen. If you need other languages, click on it to enter. Now enter the introduction in ChineseWorking image



1. The current order is the order currently in progress
2. Order length The order quantity is the set number of orders and the set number of sheets
3. The current length is the distance the machine travels in real time, measured in millimeters (mm). In automatic mode, when the blade cuts to the bottom and touches the lower limit switch, it resets the current length. In manual mode, reset is required. Length Quantity: Simply click the corresponding reset button.
4. Current quantity is the number of currently working items. Click to reset the quantity.
5. Number of pallets moved out   Set the number of pallets to be moved out
6. Current yardage count   Display the current number of stacks
7. The pallet board has enough clicks to start moving the board outward  Start moving the plates when enough pallets are stacked

1. Manually drawn images
   1.Cutting blade up cutting blade down forward rotation reverse rotation are all point motion control

1. The red light on the "Cut blade up" and "Cut blade down" is limited to monitoring. The red light status is in place.3.Cut it. The knife goes through a cycle.
   4.Activate automatic mode: Align the board with the blade edge manually, or click "Cut One Stroke" to align and reset the current length. Current sheet count. Rotate clockwise to activate the oil pump. Start the machine immediately.

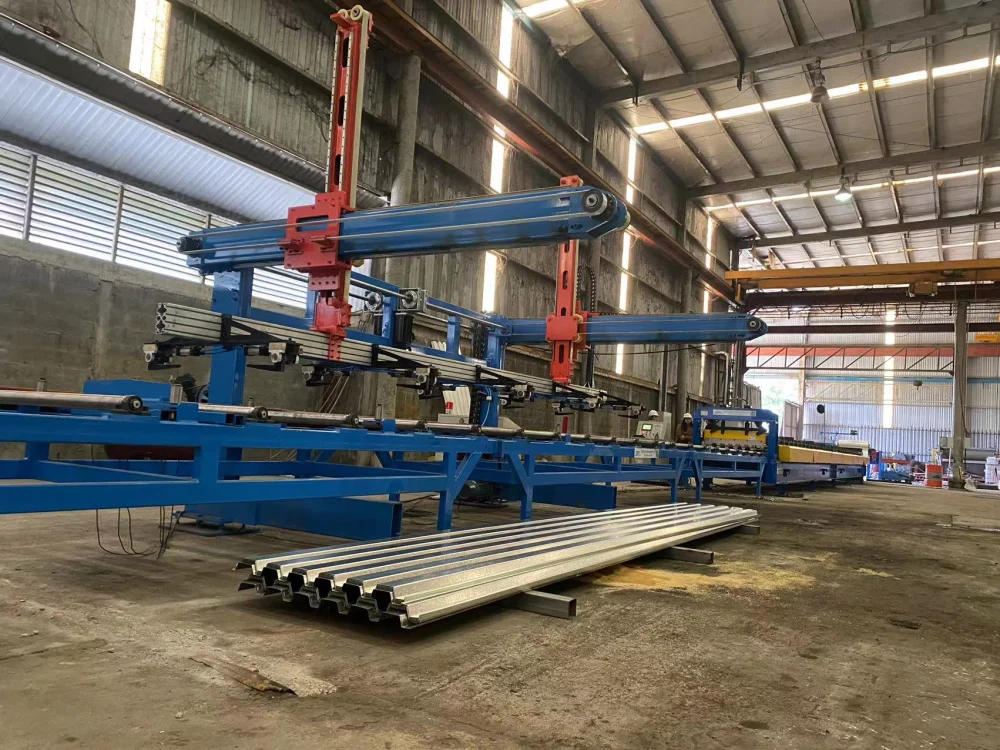

1. The receiving and discharging are pushed together as three manual cylinder valves for palletizing
2. Stacking motor start for palletizing forward and reverse rotation belt
3. Stacking up Stacking down Stacking motor manual lifting

1. Order screen
2.


   1 order can set fifty kinds of orders in total, with power-off hold function
   The unit is mm. Click the X in the upper right corner to return to the working screen
   2 Click the required value and press ENT to confirm. For example, 5990 is needed. Just click the value and press ENT to confirm. If you make a mistake, press CLR to re-enter.'ESC is the return key.
3. parameter setting

1. Medium Speed ​​Distance: Normal machines have two speeds, but this machine has three speeds. Length (unit: mm)
2. Low Speed ​​Distance: Distance from the cutting blade's travel speed
3. Stop Delay: The time the machine stops and waits for cutting after reaching the desired length
4. Double Blade Distance: Distance between the front shear blade and the rear shear blade (unit: mm)
5. Stacking start delay, stacking receiving delay, stacking discharge time, stacking push time, stacking move-out time. The above is the time setting of stacking action, which can be set on site according to the situation.
6. Oil injection time Oil injection delay Time setting of the oil injection valve on the machine7.Retreat time is the time after the blade cuts the board to retreat. The blade lifting action will be executed only after the retreat time is completed.

1. Length correction


1. When the length of the 5-meter board or 3-meter board is uniformly shorter, you can add the input distance to the compensation amount
2. When the length of the 5-meter board or 3-meter board is uniform, you can input the short distance in the compensation quantity reduction
3. First inertia the first plate inertia
4. Distance between double knives Distance between front shear blade and rear shear blade mold Distance in mm
5. Pulse coefficient The change of the pulse coefficient requires a calculation formula to calculate:Pulse can be calculated: display length × pulse ÷ actual board length
   Enter the displayed length and the actual measured length data, press the coefficient correction key to automatically calculate and automatically modify the length correction parameters. After the calculation is complete, press return.
   When there is scrap on the cutting edge, the calculation formula needs to be fine-tuned. Display length × pulse ÷ actual board length plus the thickness of the knife edge. When adjusting, you need to add the thickness of the knife edge to the actual board length.
6. Retracting time: The time for the cutter to move back after cutting the plate. The lift will be executed after the retreating time is completed.
   When the inverter has an alarm, the screen will display that the solenoid valve will be automatically powered off when the solenoid valve is energized for too long. Press the emergency stop to reset

1. Automatic operation(1) Check the direction of rotation of the oil pump motor. It must be rotated clockwise from the fan end of the motor.
   (2) Check the pressure of the large and small oil pumps, generally adjust to 10-12Kg1cm2 (see the machine model)

   Set the required number of length sheets. Check whether the oil pump, cutter, and main engine can work normally. Whether the emergency stop is released. Raise the cutter to the upper limit. Turn on the automatic switch.
   During the normal production process, spot check for changes to avoid unnecessary waste.

2. Failure screen
   1. Short circuit between the upper and lower limits of the cutter
   2. Excessive medium and low speed distance
   3. The cutter is not in place
   4. The tool lifting time is too short or the limit method is wrong
   5. Set the length to be less than 0
   6. Set the number of sheets to be less than 0
   7. There is a length without the number of sheets
   8. There is no length
   9. The deceleration distance is equal to 0
   10. The pulse coefficient is equal to 0
   11. Cut in place
   12. Production restrictions
   13. The number of length sheets is not set

   Instructions for restoring factory settings: When the PLC program calculates an error, you can clear all the set data and return to the factory state. Remarks: To restore the factory settings, a permission password is required, the first-level password is 11111111, the second-level password is 123456, and the third-level password is 33333333.

3. Fault diagnosis.1. The control box has no power
   (1) Check whether the external power supply is good.
   (2) Check if there is any loose or detached thread in the control box.
   (3) Check whether the electrical components are damaged, and replace the accessories
   (4) Whether the emergency stop is open.
   2. The oil pump cannot be started.
   (1) Check the input power.
   (2) Check the start button.
   (3) Check the starter oil pump contactor.
   (4) Check the oil pump motor.
   3. The host cannot move forward or backward
   (1) Check the host forward button
   (2) Check whether the inverter alarms
   (3) Check whether the emergency stop is pressed or
   (4) Check the power switch
   (5) Check if there is any jamming of the steel belt.
   (6) To check whether the electricity is normal, you need to contact the manufacturer, and non-professionals are not allowed to change the electrical components without authorization.
4. The length of the count is not accurate and the deviation is very large(1) Check whether the mechanical part of the encoder is in good condition, and whether the counting wheel is in firm contact with the section steel.
   (2) Before correcting the parameter setting, check whether the connecting shaft in the encoder is damaged or slipping. Or whether the encoder wheel is spinning and slipping
   (3) The encoder line should be separated from the power line and enter the host as far as possible to avoid interference.
   (4) The deceleration length is not fixed, generally set about 100-150mm to reduce the inertia value and improve the accuracy.
5. Daily maintenance1. Adjust the screw, add oil once per shift.
   2. The bearing is filled with calcium-based lubricant once every six months.
   3. Check the transmission chain and add calcium base oil once a month.
   4. Refuel the tool part before equipment operation.
   5. The hydraulic oil is replaced within one and a half years, depending on the situation.
   6. Check the oil pump and main motor for abnormal noise before starting up.
   7. Keep clean in the control box and remove dust frequently.
6.  Precautions and warnings:1. Please provide reliable grounding. PLC grounding and motor grounding are separated and should be set separately.
   2. Please check whether the voltage is stable, the required voltage range (three-phase 480V ± 10% 50Hz), and different voltage levels abroad need to be reconfigured.
   3. Separate control lines such as encoders and photoelectric switches from the power lines as far as possible to avoid interference. The motor, solenoid valve, and main power supply are led in at one end, and encoders and photoelectric switches are led in at the other end of the control cabinet.
   4. The control cabinet must not be placed in direct sunlight, which will damage the LCD screen.
   5. Non-professionals are not allowed to adjust the equipment in the cabinet.
   6 If the equipment is damaged due to the above reasons, the cost will be borne by the customer's consultation.
   7. The wiring inside the cabinet is subject to change without notice.
