Crawler-Type High-Altitude Tile Press Mobile Roofing Roll Forming & Lifting Platform
Crawler-Type High-Altitude Tile Press Mobile Roofing Roll Forming & Lifting Platform
Self-propelled crawler roofing tile press and lifting platform for industrial roof construction. Supports 0.4–0.7mm PPGI, GI, PPGL, SS. Ideal for high-altitude roofing projects.
Detailed Content

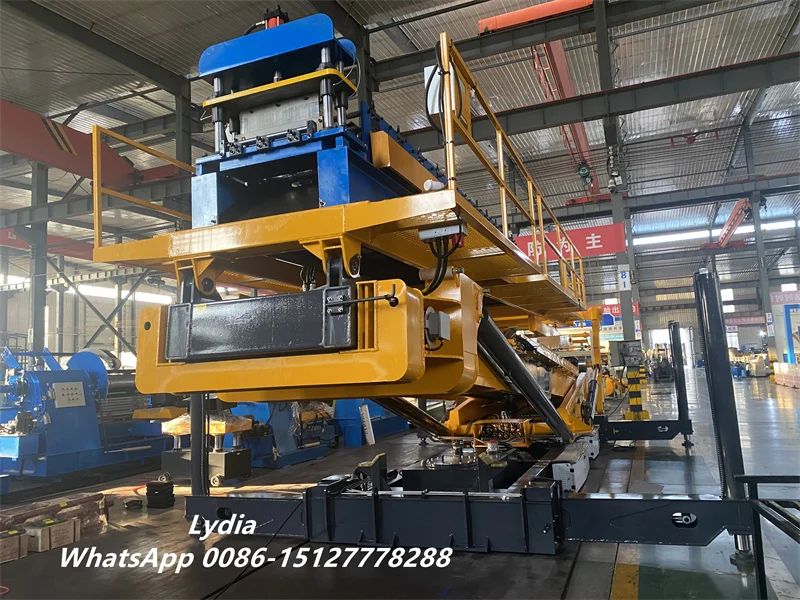

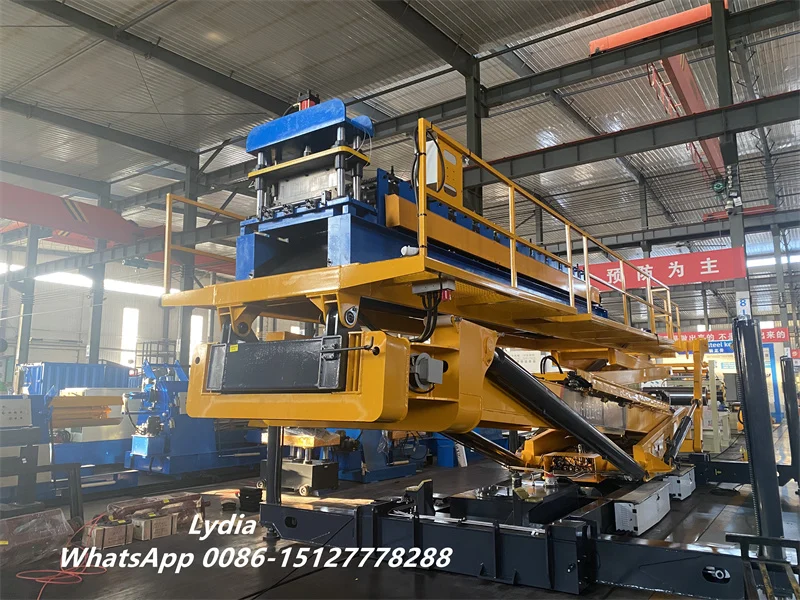

Crawler-Type High-Altitude Tile Press & Mobile Roofing Lifting Platform
Designed for Large-Span Steel Structure Roofing & High-Altitude Facade Installation
The Crawler-Type High-Altitude Tile Press and Lifting Platform is a next-generation on-site forming and roofing installation solution. Unlike traditional truck-mounted roofing tile presses, this self-propelled crawler system offers superior mobility, safety, and construction efficiency—especially in muddy, uneven, or narrow jobsite environments where trucks cannot operate effectively.
This equipment is widely used in industrial plant roofing, warehouse roofing, stadiums, agricultural structures, and facade cladding projects, where long-length roof panel forming without overlaps ensures better waterproofing and long-term durability.
Why Choose a Crawler-Type Roofing Tile Press
| Advantage | Description |
|---|---|
| Self-Propelled Crawler Drive | Works smoothly on uneven, muddy, or inclined terrain. No truck required. |
| On-Site Continuous Forming | Panel length up to 160 meters without joints → eliminates leakage risks. |
| High Safety Performance | Elevated operation platform reduces high-altitude manual work risks. |
| Efficient for Large-Span Roofs | Ideal for steel structure buildings and industrial construction sites. |
| Flexible Installation Height | Supports roofing heights from 3m to 18.5m. |
This machine directly addresses traditional roofing challenges: transport limitations, manual handling, panel deformation, and lifting inefficiencies.
Technical Specifications
| Parameter | Value |
|---|---|
| Applicable Materials | PPGI / GI / PPGL / Stainless Steel |
| Thickness Range | 0.4mm – 0.7mm |
| Output Speed | 20–30 m/min |
| Maximum Panel Length | 1–160 meters (customizable) |
| Rated Lifting Weight | 8 tons |
| Maximum Working Height | 18.5 meters |
| Power Supply | 415V, 50Hz, 3-Phase |
| Motor + Hydraulic Power | < 15 kW |
| Slewing Support Capacity | Up to 70 tons |
Dimensions & Transport Compatibility
| Transport Option | Recommended Machine Size | Weight Limit |
|---|---|---|
| Minimum Truck Requirement | ≥ 6.6m vehicle length | — |
| Best for 9.6m Trucks | Machine length < 9.6m | ≤ 7 tons |
| Best for 13m Trucks | Machine length < 12m | ≤ 7 tons |
| Overall Size | Value |
|---|---|
| Length | 9.4m |
| Width | 2.3m |
| Height (Platform) | 2.57m |
| Height (Max Working) | 3.8m |
| Weight (Excluding Forming Machine) | 14 tons |
Structural & System Configuration
-
Main Frame: Welded steel plate + square tube reinforcement
-
Outriggers & Arms: Hoist-grade 345B steel
-
Support Shaft: Forged 45# steel, precision-polished & chrome-plated
-
Hydraulic System: Full steel hydropiping, anti-leak design
-
Control System: Waterproof cabinet + Delta PLC + remote operation
All components are engineered for continuous high-load operation in outdoor construction environments.
Application Industries
-
Steel Structure Industrial Plants
-
Logistics Warehousing Centers
-
Agricultural Livestock Sheds
-
Public Stadium Roofing
-
Large-Span Roofing Renovation Projects
