3 Ton hydraulic decoiler short shaft for light keel machine

3 Ton hydraulic decoiler short shaft for light keel machine

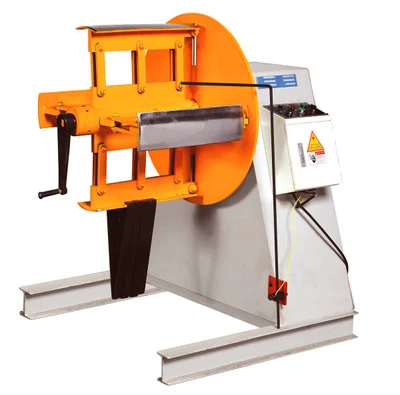

    Decoiler is normally used together with the metal rolling forming machines. Zhongtuo cold rolling forming machine could make the capacity ranging from Min 1.5 Ton to Maximum load weight 30ton, Maximum width 1800mmin the shaft width. Here I will take the 3 Ton hydraulic decoiler short shaft for light keel machine for example:


The design of Zhongtuo decoiler incorporates a unique "bearing tube" with dual cup and cone Timken bearings to the mandrel and a heavy duty cabinet base. Both motorized and pull-off type reels are available, depending on the application.
Single-end configurations are provided as standard, and Double-ended configurations can be provided to optimize production efficiency by lowering the coil changeover time. Most models are available as Traveling Reels that can be combined with automatic centering functions.
The most important thing is that we can customize the decoiler according to your needs:

Standard Feature 3 Ton hydraulic decoiler short shaft for light keel machine:
1.    Motorized and no power type of decoiler are available. That means manual decoiler, motor decoiler and hydraulic decoiler we both can make for you.
2.    Line speed 16m/min to 120 meter/min. For matching the high speed keel rolling forming machine, we also develop the high speed hydraulic decoiler.
3.    Loop touch stand to sensor the coil for reaching the consistency of speed main rolling machine and decoiler release speed.
4.    “A” frame coil keeper

Meanwhile if you need more options, Zhongtuo Machinery also can give you more surprise to you.  Pneumatic / hydraulice coil hold down arm (for 1.6mm above thickness ), AC variable speed drives and the load coil car

How 3 Ton hydraulic decoiler short shaft for light keel machine is made:
Frame welding first.The whole frame is welded design,adopt the second protection welder for welding, first vertical fillet welding, then flat fillet welding, weld first short weld, then long weld, ensure tight weld, improve quality.

2.All plates are cut by laser plasma with high precision.
3.All parts are processed by numerical control and CNC, good interchangeability of equipment.
4.The overall structure is simple, general technical workers can assemble and replace equipment parts, convenient and fast ,greatly reduce the maintenance cost.

·Main shaft part:

 Power section:
1 .Adopt model 80 worm gear vertical reducer ,use the speed converter of gear , reduce the rotation number of motor to desired rotation number ,and get the mechanism with larger torque.
2,Adopt vertical motor, low vibration, low noise, fixed rotor part adopts pure copper coil, life is 10 times of ordinary coil, both ends are equipped with ball bearing ,low friction, low temperature.
·Electric control box
1,Adopt silver alloy relay ,full copper coil ,flame retardant safety base, long lasting and durable.
2,Adopt safety protection adjustment circuit time delay ,silver alloy contact ,various and dial, satisfied different delay ranges.
3,The switch adopts sliding contact ,with self-cleaning function , normally open and normally closed contact adopts separate bonding structure, can work with different poles, equipped with anti-rotation positioning and stop loose mounting gasket.
4,Adopt self-duplex flat button, the force is light, the key range is moderate, the building block type combination structure. The contact is made up of keto-base composite points with strong conductivity and large current, with a life span of up to 1 million times.

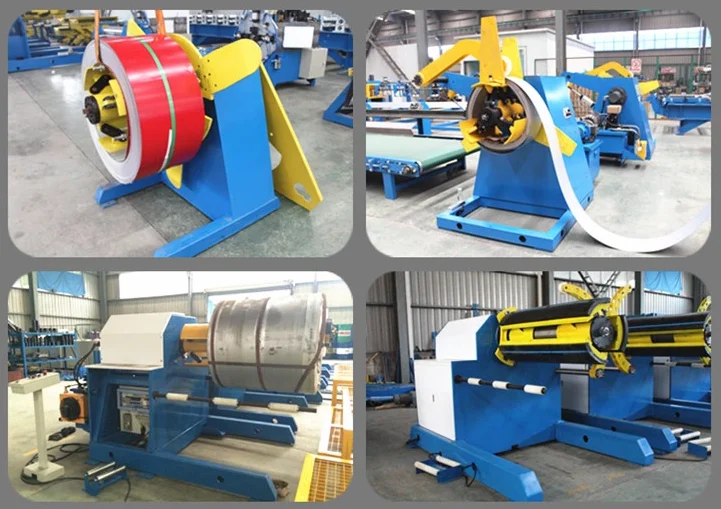

And here we have more types for your reference. If you need decoiler, you can contact us at any time.
