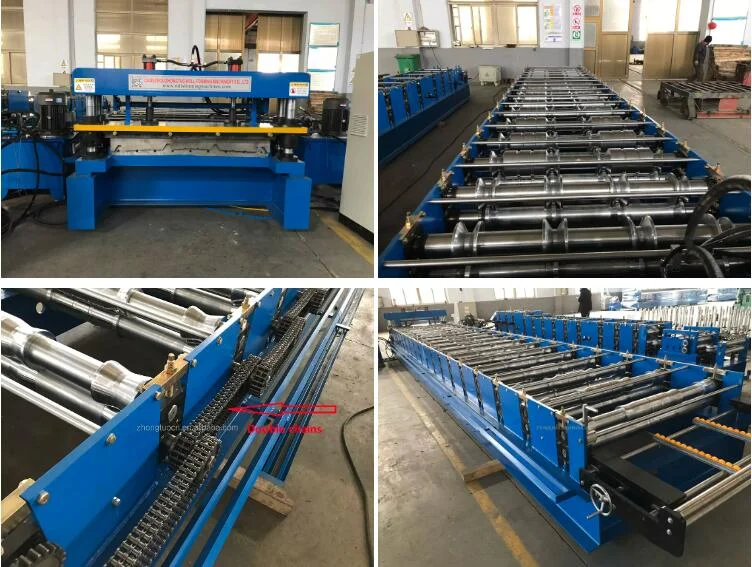

Trapezoid automatic metal sheet roof tile making roll forming machine
| Trapezoid automatic metal sheet roof tile making roll forming machine |
||||
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm Width:1000mm/1250mm(customized) |
||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） |
||

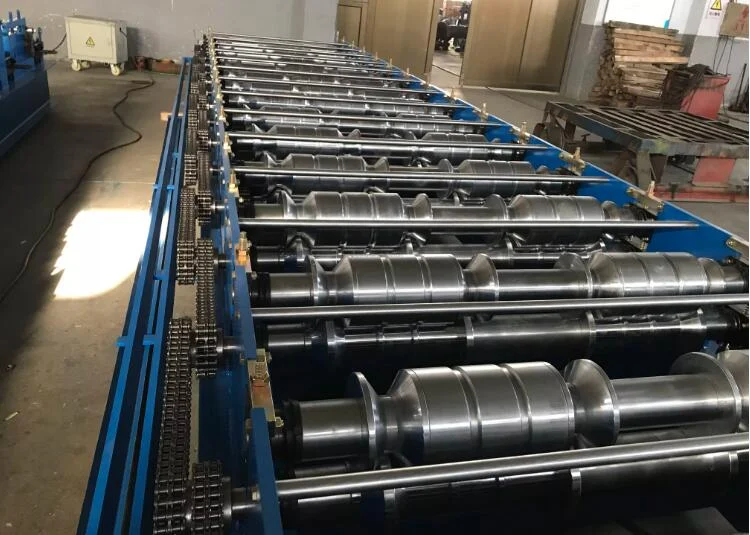

| 3.Main body | Roller station | 18 rows(As your requirement) |
||
| Diameter of shaft | 80mm solid shaft |
|||
| Material of rollers | 45# steel, hard chrome plated on the surface |
|||
| Machine body frame | 350 H steel |
|||
| Drive | Chain transmission |
|||
| Dimension(L*W*H) | 9500*1600*1600(customize) |
|||
| Weight | 6.5T |
|||

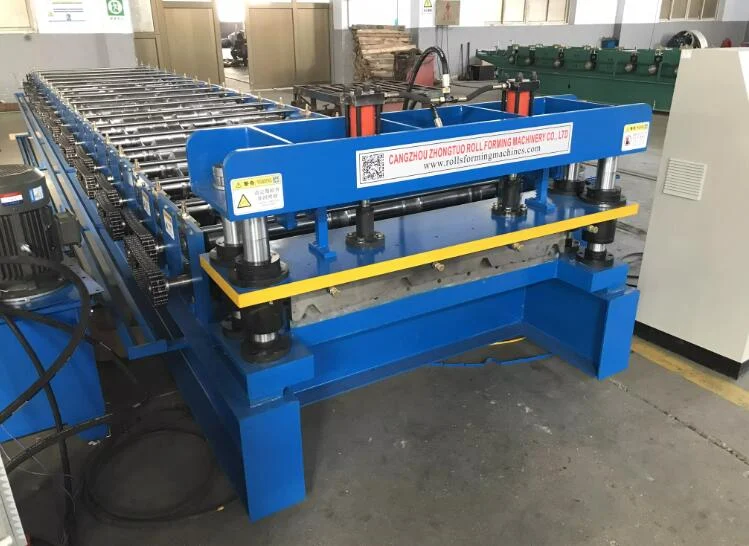

| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
||
| 5.Power | Motor Power | 5.5KW |
||
| Hydraulic system power | 5.5KW |
|||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
||
| 7.Control system | Electric Box | Customized(famous brand) |
||
| Language | English(Support multiple languages) |
|||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
|||
| 18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. |
||

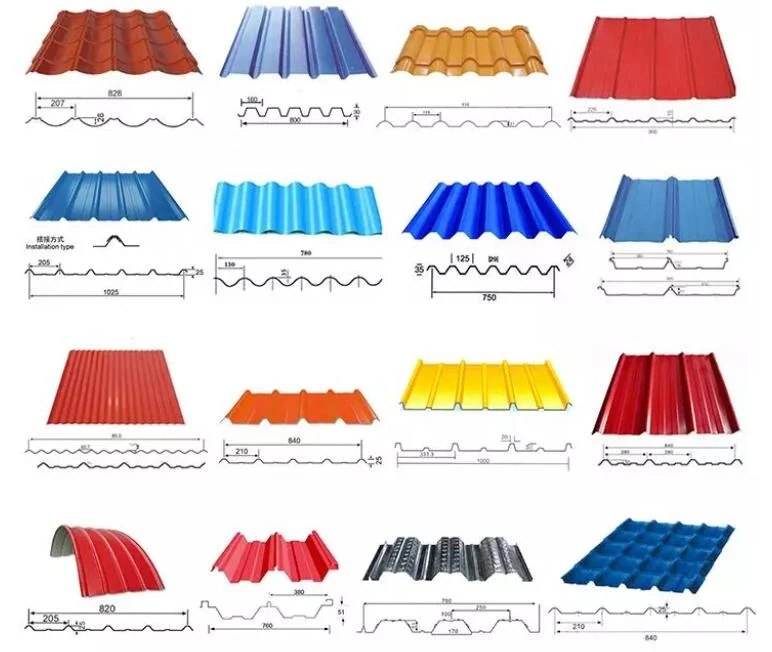

Products Display
Machines are customized as your drawing,here hot sale drawing profiles for your reference.
