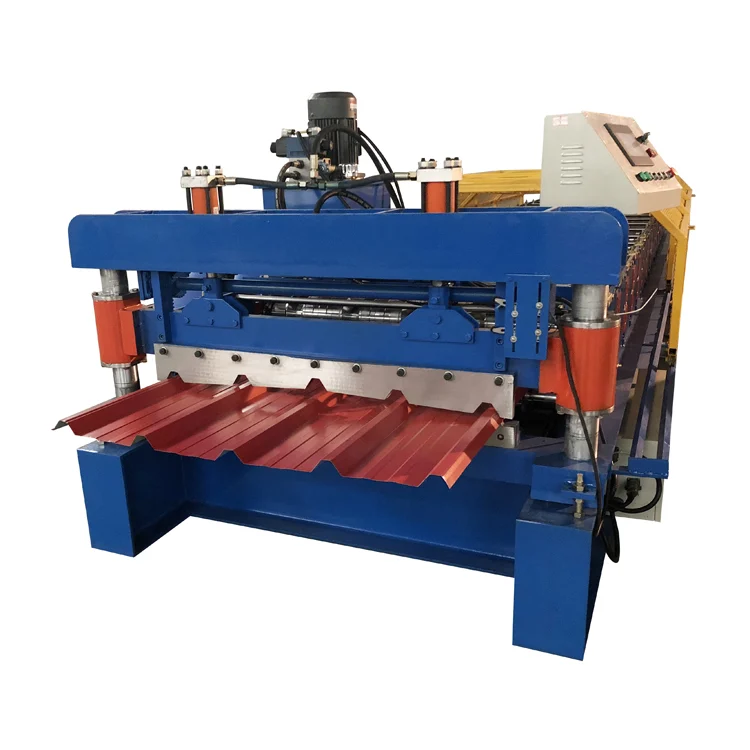

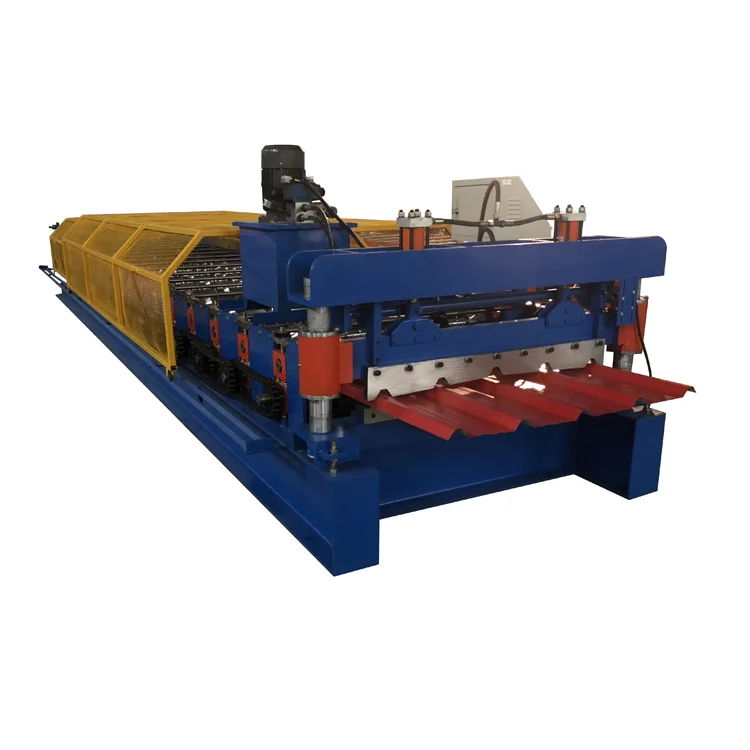

Customized Strong High Tensile Five Rib Profile Roll Forming Machine
Introduction of Customized Strong High Tensile Five Rib Profile Roll Forming Machine:
Strong High Tensile Five Rib Profile is a strong, high tensile profile that is perfect for many different applications for domestic and commercial usage. Commonly used for low pitched roofs or long spans on commercial buildings as it has great weather resistance. It is made to last and is well known in the roofing industry for its versatility and reliability. It is tough, cost-effective and superb for design purposes.
Parameter of Customized Strong High Tensile Five Rib Profile Roll Forming Machine
| Tile Type | Colored Steel |
| Production Capacity | 20-25m/min |
| Voltage | 380v 50hz 3phase |
| Weight | 2.5t |
| Type | Tile Forming Machine |
| Use | Roof &Wall |
| Dimension(L*W*H) | 5.8*1.5*1.5m |
| Material | PPGI GI |
| Cutting Blade Material | Cr 12 Heat Treatment |
| Material of Rollers | High 45# Forge Steel |
| Color | Customized |
| Band Name | Zhongtuo |
Features and Benefits of Strong High Tensile Five Rib Profile:
1. 762mm cover and 27mm rib height
2. Available in 0.42BMT and 0.48BMT
3. Hi-tensile steel – strong and lightweight
4. 2º minimum pitch
5. Cut to length
6. Versatility – suitable for commercial/ industrial and residential roofing and wall cladding.

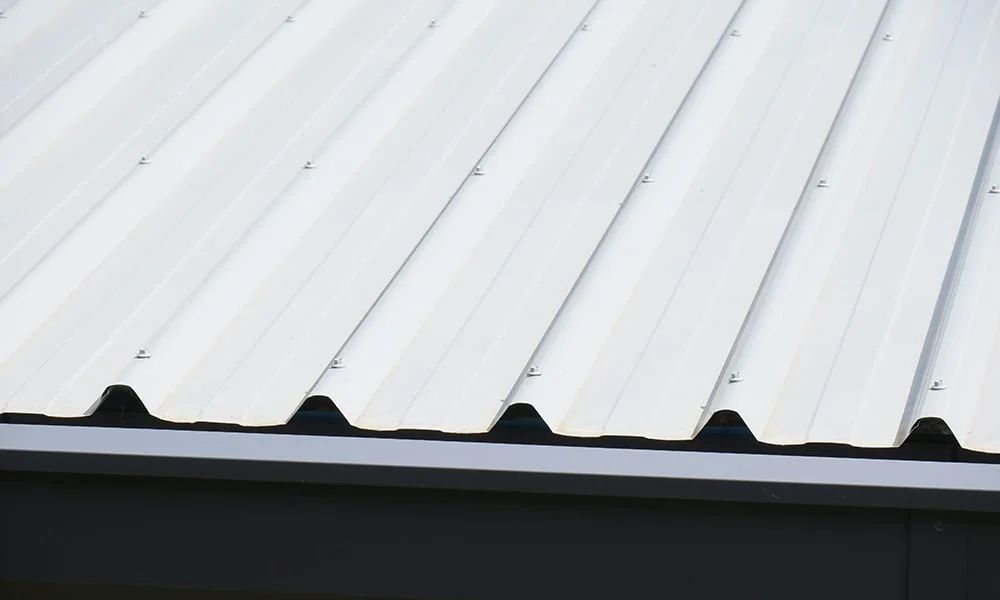

Application of Customized Strong High Tensile Five Rib Profile:

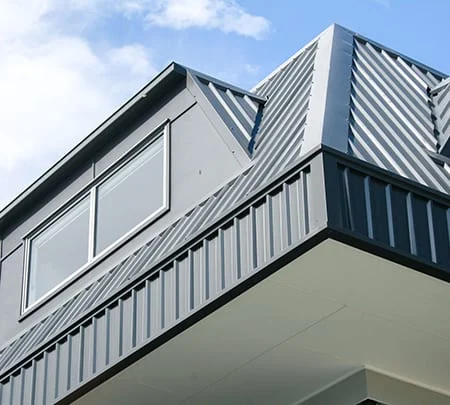

Strong High Tensile Five Rib Profile is a robust profile providing strength, versatility and economy. It is the dominant choice for garages, shed and industrial buildings due to its clean lines, long spans, and ease of handling and installation. and it is also commonly used in wall cladding and fencing applications.
Color Range of Strong High Tensile Five Rib Profile:
