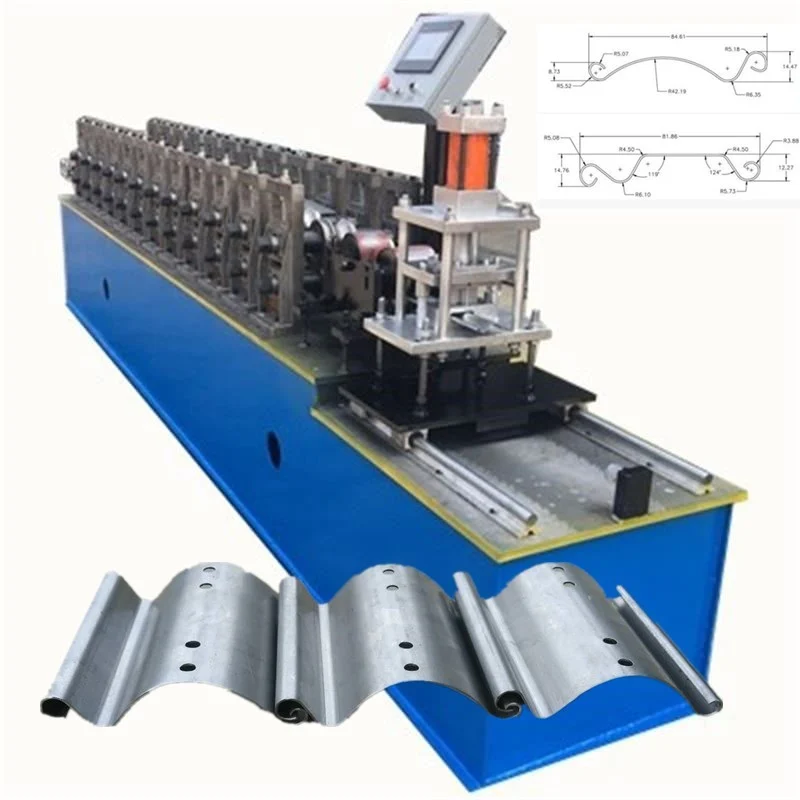

Metal roller shutter door lath roll forming machine

Metal roller shutter door lath roll forming machine
The machine will made as customer personal requirements: We will confirm the profile drawing with customer before production to make sure no error.

Main parameters:
Voltage: 380 v 50 hz 3 phase
Raw materials: galvanized steel
Material thickness: 0.7-1.2mm
Working speed: 0-25 m per minute
Weight of machine: about 3.5 tons
Working space: about 12000x2000x1500mm

Machine components:
Manual decoiler ----------------------------1 set;
Main roll forming machine ---------------1 set;
Receiving table ----------------------------- 1 set;
Hydraulic station --------------------------- 1 set;
Electric control computer ---------------- 1 set;
Maintain tools -------------------------------1 set;
Spare parts-----------------------------------1 box;
Main Roll Forming System:
Dimension: about 4500х900х1000mm
Weight of main part: 3.5 t
Voltage: 380 v 50 hz 3 phase
Frame type: memorial arch
Transmission type: by gear
Material of rollers: Cr12
Material of shafts: 45# steel
Diameter of shafts: φ50 mm
Number of rollers: 12 rollers
Main motor power: 4.0 kw
Processing material: GI
Material thickness: 0.7-1.2mm
Forming speed: 0-25 m per minute
