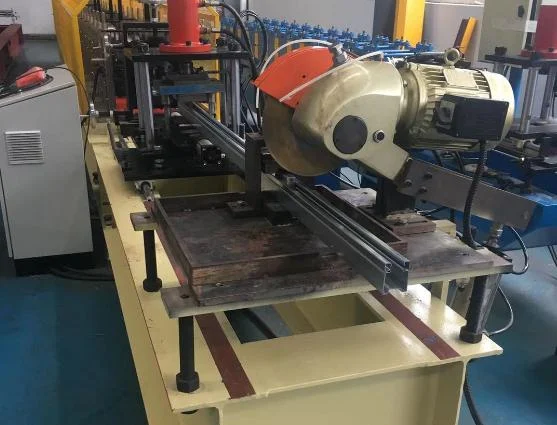

Zhongtuo rolling shutter door track door rail roll forming machine
Zhongtuo rolling shutter door track door rail roll forming machine
Zhongtuo rolling shutter door track door rail roll forming machine is designed to produce the shutter door rails in batch fully automatically. For the door track and door rails, in the market, there are many types, here I will introduce one special one with the anti-noise function.
Rolling shutter door track or guide rails are usually made out of galvanized steel or cold
rolled steel strips with thickness 1.2-2mm and whenever there is a roller shutter door or a
sliding door installed, there will be the door track or guide rails.

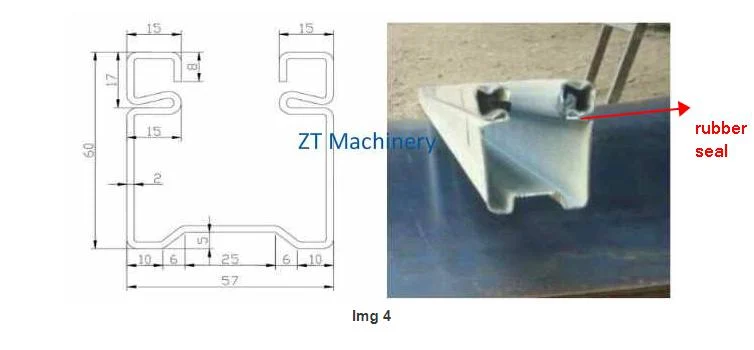

Different with other U rails, it can remove the noise when working.

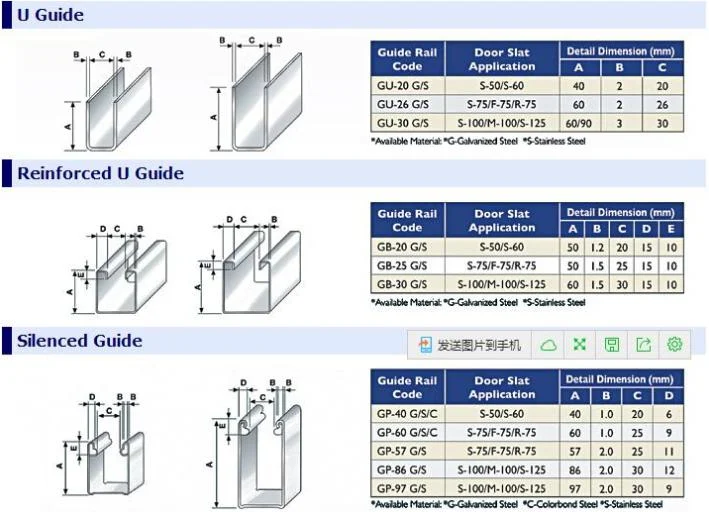

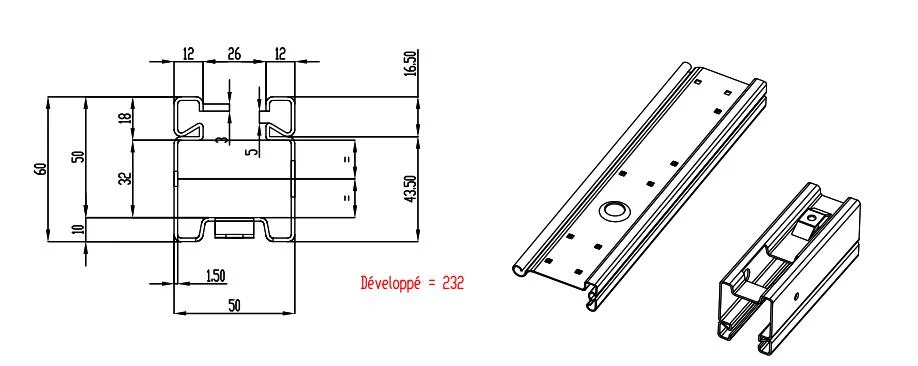

If you need, those types, Zhongtuo rolling machinery also can make such type for you.Zhongtuo rolling shutter door track door rail roll forming machine design:

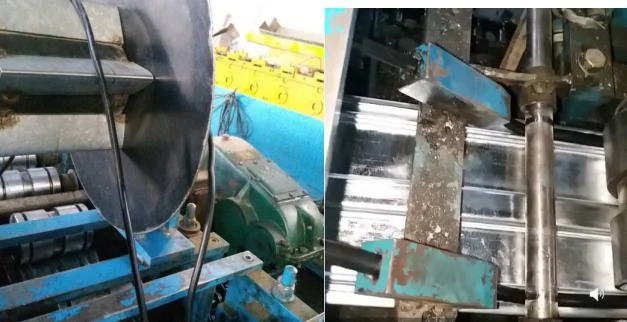

The rubber seal could be made online no need the workers to fill offline. Here are some details about how the seals are filled:
Here are some parameters of Zhongtuo rolling shutter door track door rail roll forming machine for your reference:
Uncoiler: Manual Uncoiler
Loading Weight: 3T
Inner Diameter: 480-520mm
Outer Diameter: Max 1250mm
Leveler: with a Feeding Guide Unit
7-Roller Leveler: 3 rollers up and 4 rollers down with no power
Leveling Thickness: 2mm maximum
Diameter of Leveling Roller: 76mm
Main Structure of the Machine: 36# “H” Beam Steel
Rolling Stations: 24 stations
Forming Speed: Approx. 8-12m/min
Diameter of Shaft: 65mm
aterial of Shaft: 45# steel with heat treatment
Material of Roller: Gcr15 Bearing Steel
Transmission: Chains-bracket
Main Motor Power: 11KW (subjected to final design)
Cutting: Hydraulic cutting
Cutting Length and Quantity: Clients can set the required length and quantity on the PLC touch screen
Electrical Motor Power: 3KW (subjected to final design)
Tolerance of Cutting Length: +/-2mm
PLC Control Box: 700mmx1000mmx300mm
Computer Control System: Panasonic PLC
Encoder: Omron Brand
Voltage: customize.
Usage of rolling shutter door track door rail:
