Algeria 70mm Roller Shutter Slat Door Roll Forming Machine

Algeria 70mm Roller Shutter Slat Door Roll Forming Machine Roll forming machine, door roll forming machine, atomatic shutter door roll forming machine, color s

Detailed Content

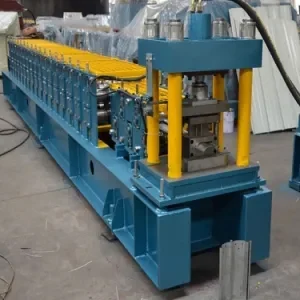

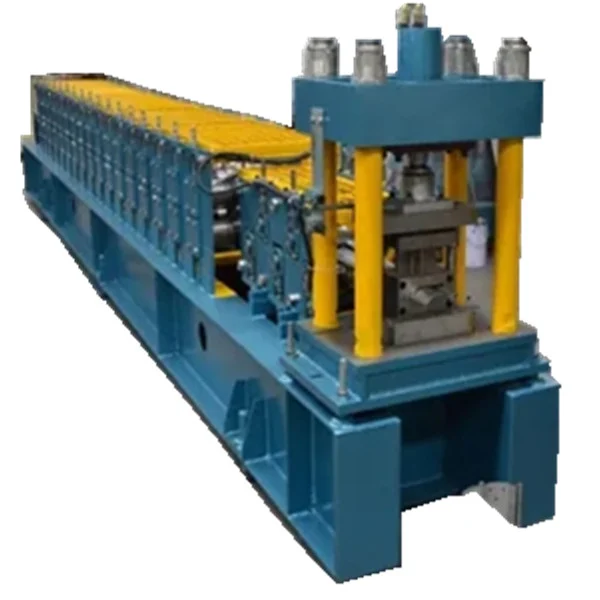

Algeria 70mm Roller Shutter Slat Door Roll Forming Machine

Roll forming machine, door roll forming machine, atomatic shutter door roll forming machine, color steel roll forming machine, roller shutter door forming machine

Main Components
1. Main machine
2. Manual/hydraulic decoiler
3. Cutting device
4. Hydraulic system
5. PLC computer controlling system
6. Run out table

Features of Door Roll Forming Machine
Shutter door roll forming machines can produce steel shutter door slats in galvanized sheet, pre-painted sheet or stainless steel sheet. Steel shutter door slats are used as the doors for work plants and shops because of durable use, space saving, low cost and low noise. The complete door roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the door machine produces it automatically. The machines are easy to operate and running stable.
199f5efb580f4465a1e48433efe49ae5 1786098839 szB9
After-sale Service
1. The warranty of door roll forming machines is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: 60 workdays
3. Port of loading: Port of Tianjin
4. Type of payment: T/T
5. Export: Australia, Ireland, Poland, Mexico, Brazil, Israel, Iran, Iraq, Dubai, Russia, India, Taiwan, Philippines, South Africa, Nigeria and others.

 Main parameter

 1  Rollers  14steps
 2  shaft of diameter  60mm
 3  material of roller  45#steel with treatment
 4  thickness of material  0.8-1.2mm
 5  wall thickness  14mm
 6  speed  8-12m/min
 7  main power  4kw
 8  hydraulic power  7.5kw
 9  material of balde  Cr12
 10  drive type  1''chain
 11  control system  PLC
 12  voltage  380v 3phase 50HZ
