Multi Automatic Shelf Panel Roll Forming Machine Storage Rack Pallets Production Line
One machine for Different width of rack shelf panels, easy adjustment, fully automatic !!!
ZTRFM cangzhou zhongtuo roll forming machine provides Shelving and Racking Panel production lines for the storage shelf panel, width of products is changeable thanks to our servo motor controlling system. Only need to wait for 5 minutes, the machine can switch to another width of products.
Our shelf panel roll forming machine is one of the most featuring products, with famous brands main motor and high-hardness CR12MOV rollers, 30mm thickness archway panels, our machine is ready to provide services for clients for an exceedingly long time.
- Combine decoiler & Precision sheet leveler

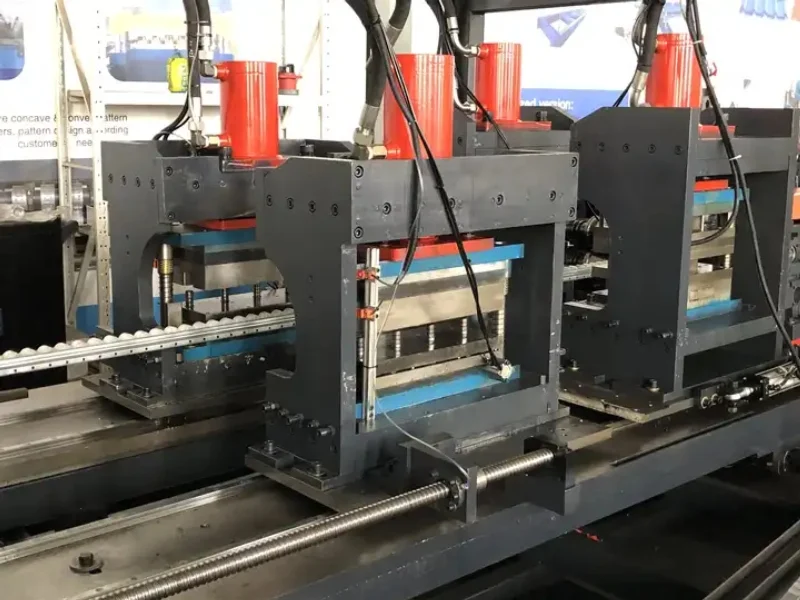

- Multi hydraulic station for Pre-punching & notching
- Precision Servo feeder

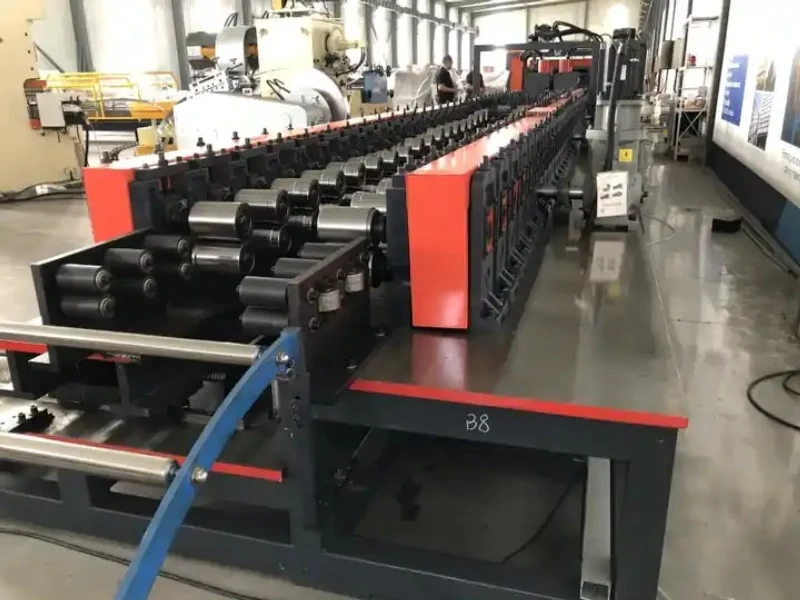

- High precision cold roll forming with changeable width

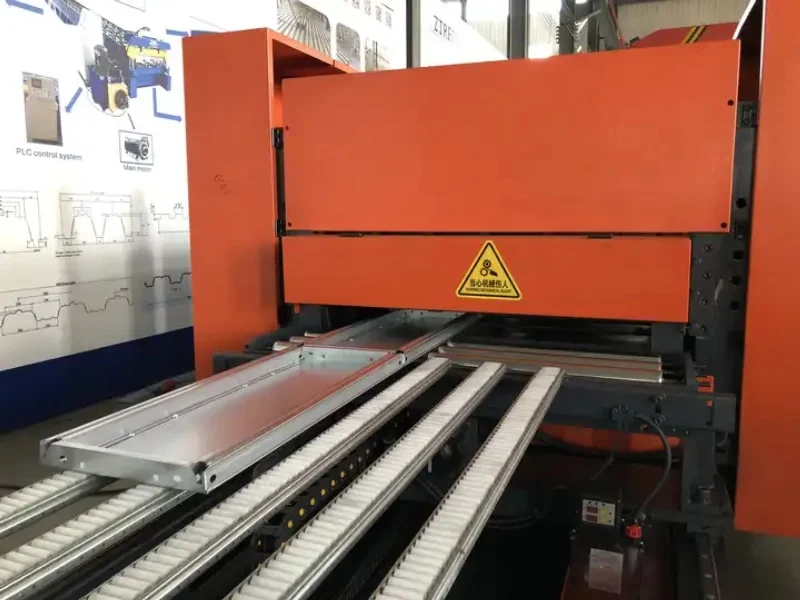

- Auto shearing and bending.
- Easy Machine operation

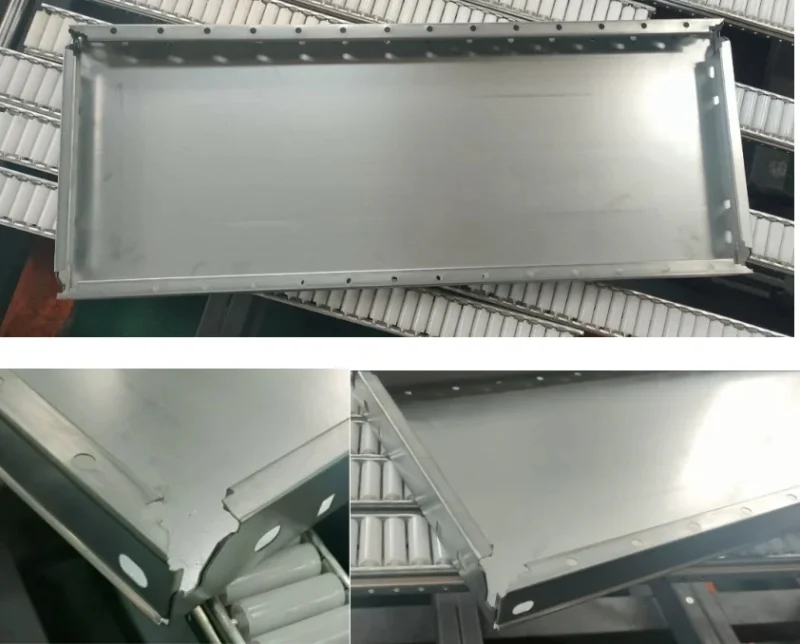

ZTRFM Full Automatic Muti Sizes In One Shelf Pallets Forming Machine Shelf Panel Roll Forming Machine is designed to make the supermarket shelf panels profiles in batch fully automatically. This series of shelf roll forming machines are mainly used to make metal shelf panels.
We also call this profile the box profile. The size and material of the panel shelf can be customized in accordance with customers' own requests. I will take a random shelf panel drawing profile for example to show you our Shelf panel rolling forming machine.

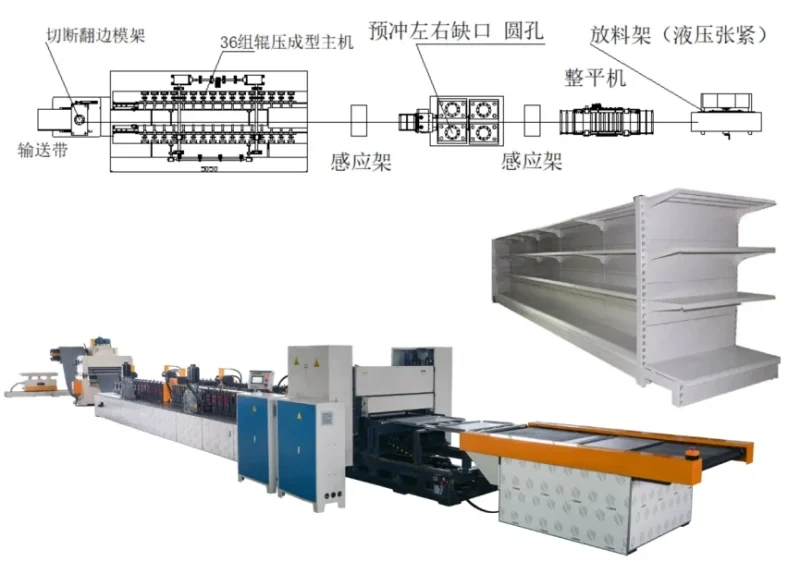

5T manual decoiler → 1000mm leveling machine → 1000mm servo CNC feeding machine (Huichuan servo 1.3kw)+2 notches+2 left and right circular hole hydraulic front punching machines (2 mold bases, 4 sets of molds) → 36 sets of width adjustable rolling forming (main drive 15KW variable frequency speed regulation, CNC width adjustment, Huichuan servo 0.85KW) → hydraulic cutting and flanging (1 set of mold, 7.5KW oil pump motor) → discharge conveyor belt (motor 0.2kw).
| ZTRFM Full Automatic Muti Sizes In One Shelf Pallets Forming Machine Shelf Panel Roll Forming Machine | ||
| Formed Material | Cold rolled coil | Thickness:0.7-1mm |
| Panel width | Width range | 300-640mm |
| Profile | Provide customized,OEM,ODM | |
| Decoiler | capacity:5 tons | Inner diameter:φ450～550mm,outer diameter of the coil material φ 1300mm |
| Roll Forming | Roller station | 36 rows(As your requirement) |
| Diameter of shaft | φ 50mm solid shaft | |
| Material of rollers | Cr12MoV, vacuum heat treated, and the hardness is HRC55-58 | |
| Design | Two sets of tapered roller bearings 30209 are equipped on the transmission side, and one set of cylindrical roller shaft NJ209 is equipped on the operation side. |
|
| Cutter | Automatic | cr12mov material, no scratches, no deformation |
| Power | Main Power | 25KW |
| Voltage | 380V 50Hz 3Phase | As your requirement |
| Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| Forming Speed | 3-6m/min | The speed provide customized |
