Zhongtuo Machinery Electrical Cabinet Frame Roll Forming Machine

Precision Roll Forming Machine for Electrical Enclosures

The Electrical Cabinet Frame Roll Forming Machine by Zhongtuo Machinery is a high-precision, fully automatic solution designed for producing electrical cabinet frames, enclosure profiles, DIN rails, and structural components used in power distribution and control systems.
Engineered for strength, accuracy, and production efficiency, this machine is widely used in the electrical, energy, and industrial enclosure manufacturing sectors.

With advanced roll forming technology and a flexible configuration, Zhongtuo’s machine can produce complex multi-fold cabinet profiles while ensuring excellent dimensional consistency and long-term structural reliability.

Electrical Cabinet Frame Roll Forming Machine Overview

Zhongtuo Electrical Cabinet Frame Roll Forming Machine converts flat metal coils into strong and precise cabinet frame profiles through a continuous roll forming process.

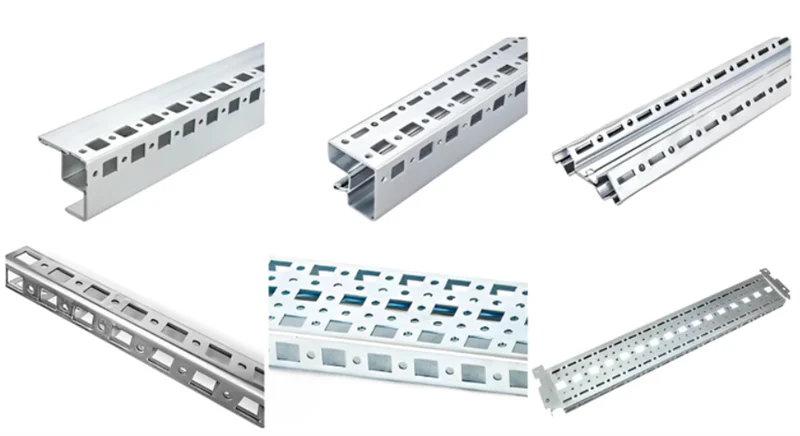

It supports a wide range of profile designs, including:

• 17-sided cabinet profiles

• Standard side profiles

• 9-fold, 13-fold, and 16-fold metal profiles

• Rittal bay enclosure profiles

• Custom electrical cabinet frame designs

Each profile is accurately formed to ensure easy assembly, secure sealing, and enhanced operator safety during installation and maintenance.

Key Features & Advantages

1. Versatile Profile Production

One machine can produce multiple electrical cabinet frame types based on customer drawings. This flexibility allows manufacturers to meet diverse project requirements without sacrificing efficiency.

2. Strong & Stable Structure

• Each column includes at least one sealing groove

• Three-dimensional angular connectors perfectly match column and beam grooves

• Finished frames provide excellent rigidity and load-bearing performance

3. High Precision & Consistency

Gradual roll forming through 30+ forming stations ensures smooth bending, tight tolerances, and consistent dimensions across every finished profile.

4. Automatic & Safe Operation

The machine integrates roll forming, punching (optional), and cutting into a single automated line. This reduces manual handling, improves operator safety, and increases production efficiency.

5. Designed for Industrial Standards

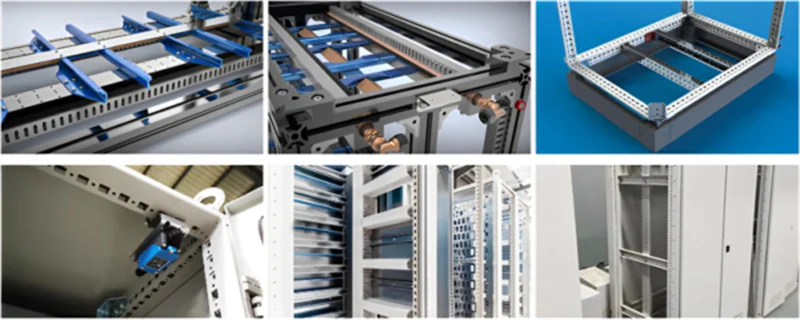

Ideal for manufacturing components used in:

• Electrical cabinet racks

• Switchgear enclosures

• Low-voltage and control cabinets

• Electronic box poles and metal case frames


Technical Specifications

Working Process

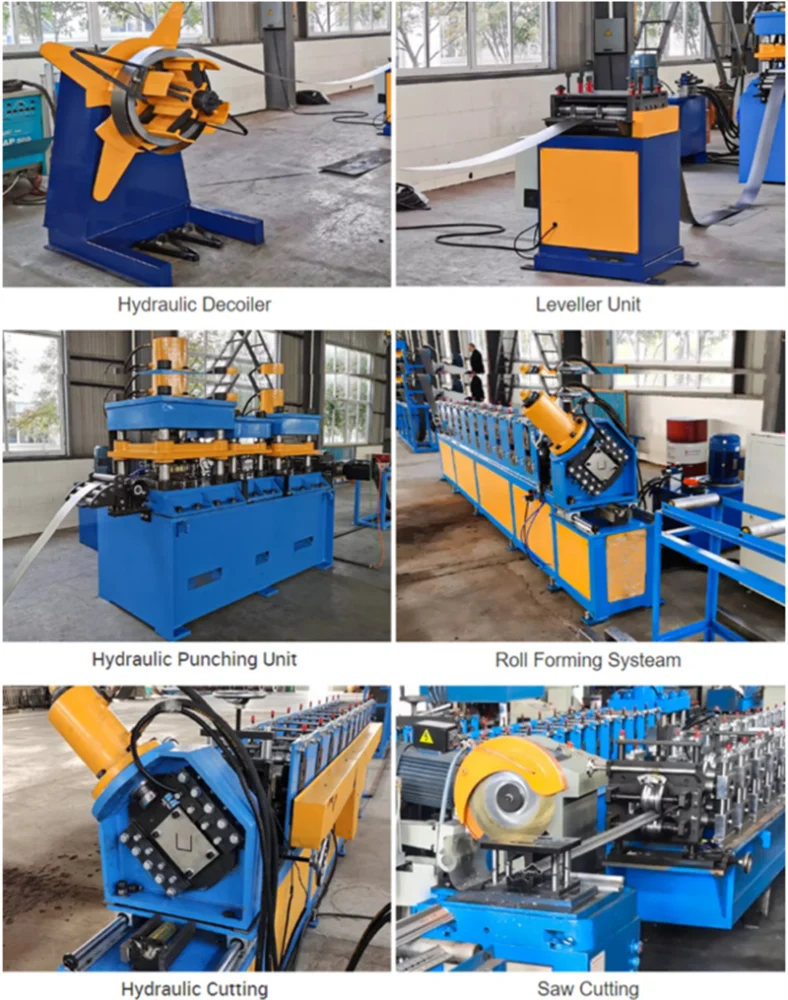

1. Coil Loading
   Steel coils (galvanized or cold-rolled) are loaded onto the uncoiler.

2. Material Leveling
   The strip passes through the leveling system to remove bends and ensure smooth feeding.

3. Roll Forming
   Multiple forming stations gradually shape the strip into the required electrical cabinet frame profile.

4. Punching & Cutting
   Punching holes and slots are completed online if required. Finished profiles are cut to precise lengths using hydraulic shears or flying saw cutting.

5. Output & Stacking
   Profiles are discharged, automatically collected, and stacked for further assembly or packaging.

6. PLC Control System
   The PLC system controls forming speed, punching, cutting, and length accuracy, ensuring stable and efficient production.


Applications of he Frame Roll Forming Machine

The Electrical Cabinet Frame Roll Forming Machine is widely used in:

• Electrical cabinet racks and frames

• Switchgear and power distribution enclosures

• DIN rails and enclosure boxes

• Solar strut channels

• Custom industrial metal profiles

This machine is especially suitable for manufacturers serving the Electrical & Energy Industry, where precision, safety, and reliability are critical.
ne

Why Choose Zhongtuo Machinery

With over 15 years of experience in roll forming equipment, Zhongtuo Machinery provides complete, reliable solutions from design to production.

By choosing Zhongtuo, you benefit from:

• Customized machines based on your drawings and tolerances

• Stable, high-quality output with long service life

• Operator-friendly design with enhanced safety

• Professional one-to-one technical support

• Comprehensive after-sales service and global delivery experience

Whether you need standard electrical cabinet frames or complex customized profiles, Zhongtuo Machinery delivers equipment that maximizes productivity and ensures long-term performance.
