Door frame roll forming machine
This door frame roll forming machine is designed for making the door frame production in batch fully automatically.
And this metal profile is popular in India, and other counties.

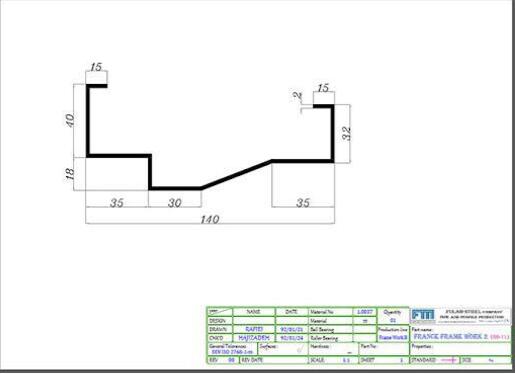

Door frame drawing profile for your reference:

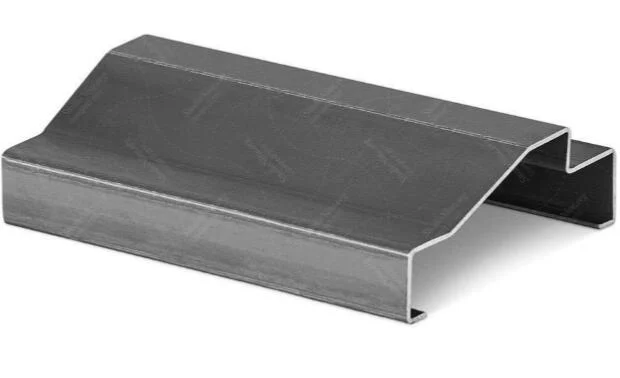

Finished product profile:

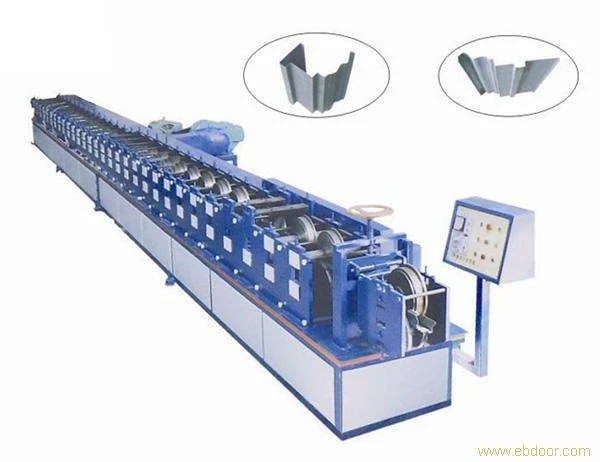

Based on the customer requirements and our experience, we design the door frame Roll Forming Machine like following picture:
The door frame Roll Forming Machine is composed by the following elements:

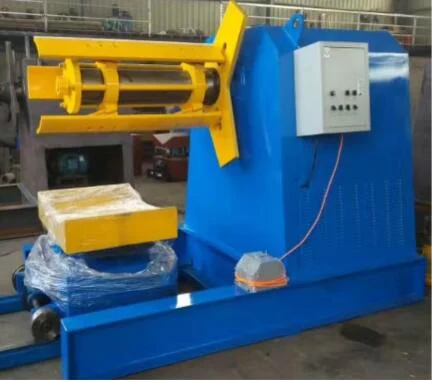

- 3TManual/hydraulicdecoiler
It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulledby roll forming system.
- Main Roll Forming Machine

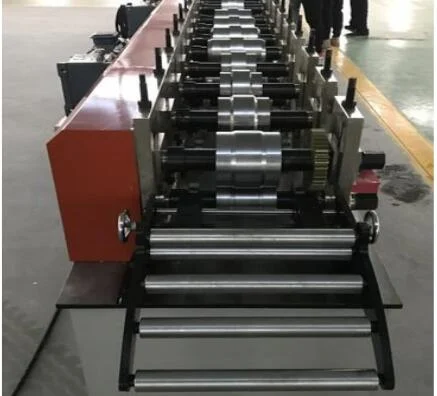

- Feeding and leveling part Putting the raw material through the platform for manufacturing and processing, can ensure the products are clean, parallel and everything is uniform. Consult the equipment regulation for the function of locating their on panel.

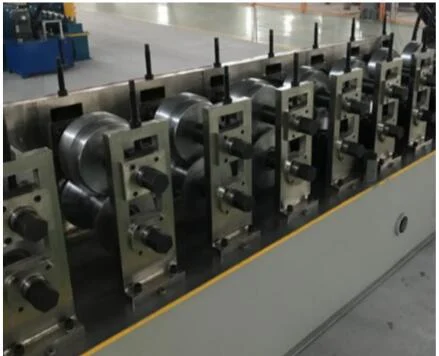

- Roll forming
After leveling,the steel plate will enter this part for forming.
Voltage: 380V/50HZ3Phase(ascustomer’srequest)
Roller fixer:Guide column
Frame:pillar frame Memorial arch frame type
Frame thickness: 25mm

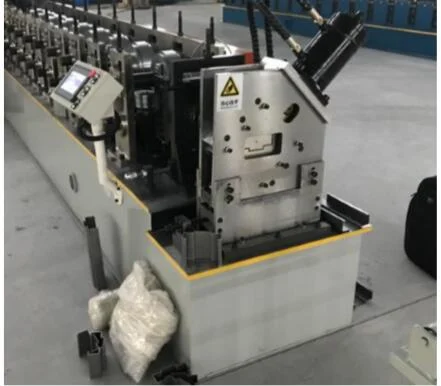

- Hydraulic Shearing
Shearing part
After roll forming,the product will becutat this part. Material of blades:Gcr12 quenched Power supply:hydraulic power Strokes witch:non-contact photo electrics witch .

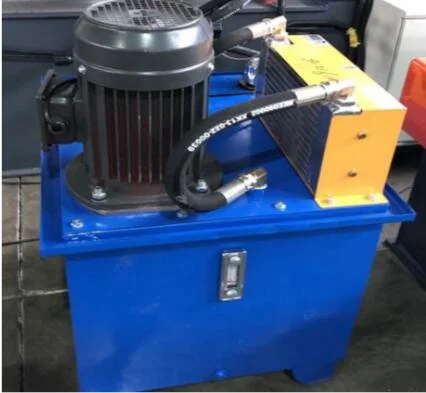

Hydraulic station 46#
hydrauli coil 5.5kw
Hydraulic power Components: The system includes one set of hydraulic tank, one set of hydraulic oil pump, two hydraulic pipes,and sets of electromagnetismvalves.
