As the name shows ridge of a sloped roof system is the highest horizontal top area where the two roof sheets meet. Because ridge cap shingles cover the peak of the roof, where two angles meet, they play a critical role in keeping rain and thawed snow from
Detailed Content

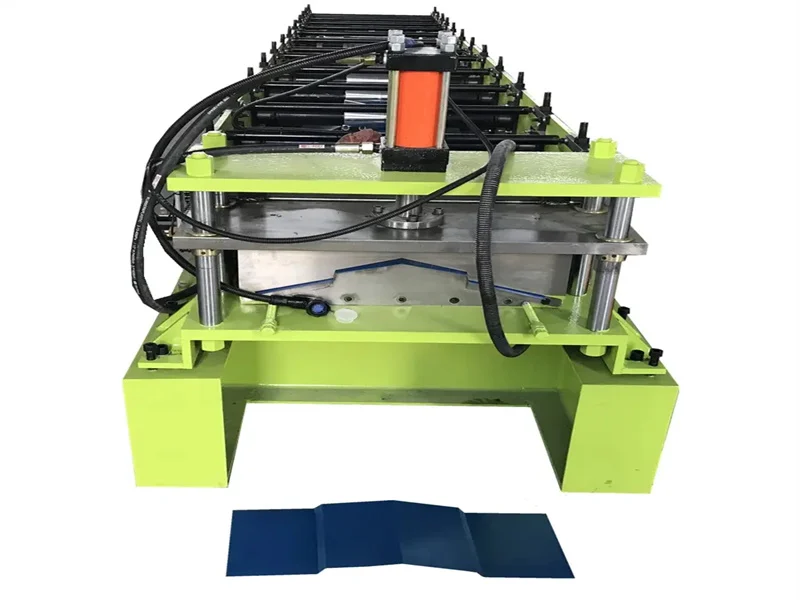

ROOF RIDGE CAP ROLL FORMING MACHINE
A Roof Ridge Cap Roll Forming Machine is for producing Roof Ridge Caps for Steel Building System. ZT machinery have several designs of roll forming machines for caps.
Brief Specifications of ridge cap machine
Uncoiler Capacity and Types: 3 Ton -5 Ton, Electric or Manual Suitable Coil Strips: 0.25-0.6mm thickness, 300*800 mm width. I.D 508-610mm, O.D: 1000mm Forming Rollers: 14-20, subject to final design Rollers Material: ASTM 1045, Quenched and tempered. Chromed 0.05mm thickness Shaft Material: ASTM 1045, hardness treatment Motor Power: 5.5KW Driven Method: Gear box or Chain& Gear Cutoff De Material: CR12, heat treatment Controlled System: Panasonic or Siemens PLC, Yaskawa Inverter, Omron Encoder, Omron Limit Switch Voltage: 308-440V, 50-60HZ, 3 Phase
Here by the finished product, let us check the machine quality.
- For the profile to see the length accuracy.
- To check the stamping part at the same line or not.
- To check the stamping part and rolling part if there is any damage part or not .
If you want to know more information, please contact us at any time.
