Steel And colorful Stone Chip Coated Roofing Tile MachineSteel And colorful Stone Chip Coated Roofing tile is a modern environmentally friendly roofing material
Detailed Content
Steel And colorful Stone Chip Coated Roofing Tile Machine
Steel And colorful Stone Chip Coated Roofing tile is a modern environmentally friendly roofing material .Covering color vermiculite surface which carried under the high temperature Technology. It is high-performance, stable, energy-efficient and easy operation.
Steel And colorful Stone Chip Coated Roofing Tile Machine has three parts: slitting and cutting part to make the suitable plate; roof tile pressure machine;stone coated machine.Those parts combine a complete production line.

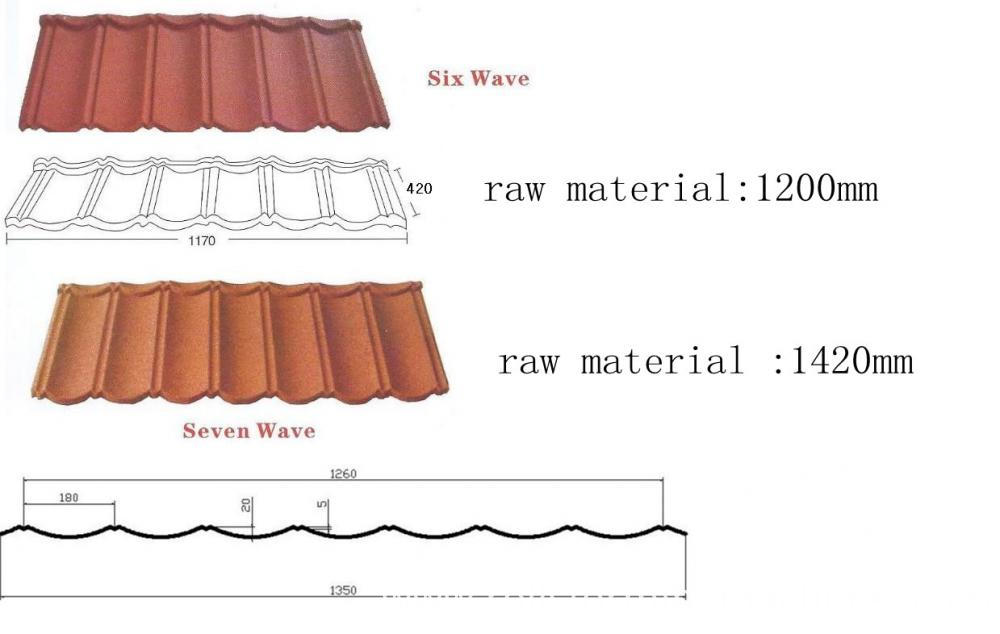

A sample profile drawing:
Component and production process of Steel And colorful Stone Chip Coated Roofing Tile Machine
Decoile ---slitting and cutting part--- 200T Press profile machine---Lace Shearing Machine---Stone coated machine(Auto bottom glue spraying section---Auto stone coated section---The first time drying section---Auto face glue spraying section---The second time drying section---Mixer of sand)
The main parameters of Stone Chip Coated Roofing Tile Machine
Main raw material : 0.4mm aluminum plate,or as customer requirement.
Normal feeder width:914mm (change by profile)
Material of mold: D2/GCr12MoVo
Slitting speed:10m/min
Total power: 250kw
Productivity: 3-6m/min Calculate as 1.2m per piece, eight hours,
produce 1500pcs every day
Machine weight: 35T
Production condition: need plant area 2000 square meter(25m*80m)

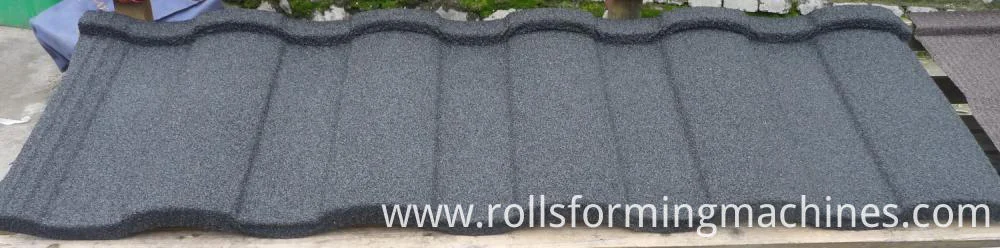

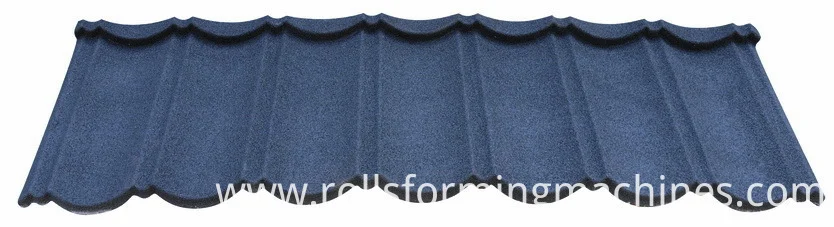

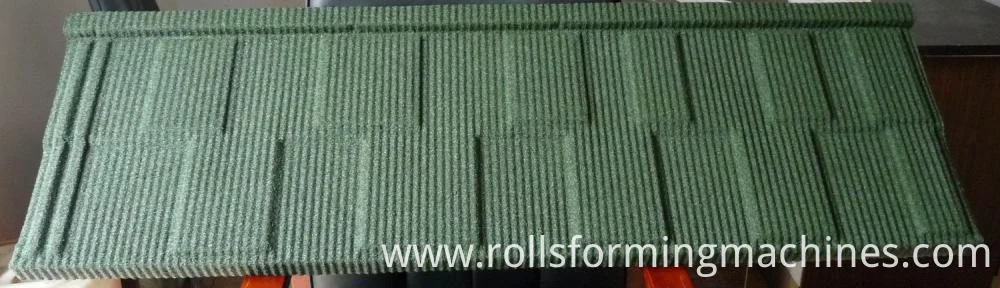

the type of rool tile we can do:
Production pictures for you reference:

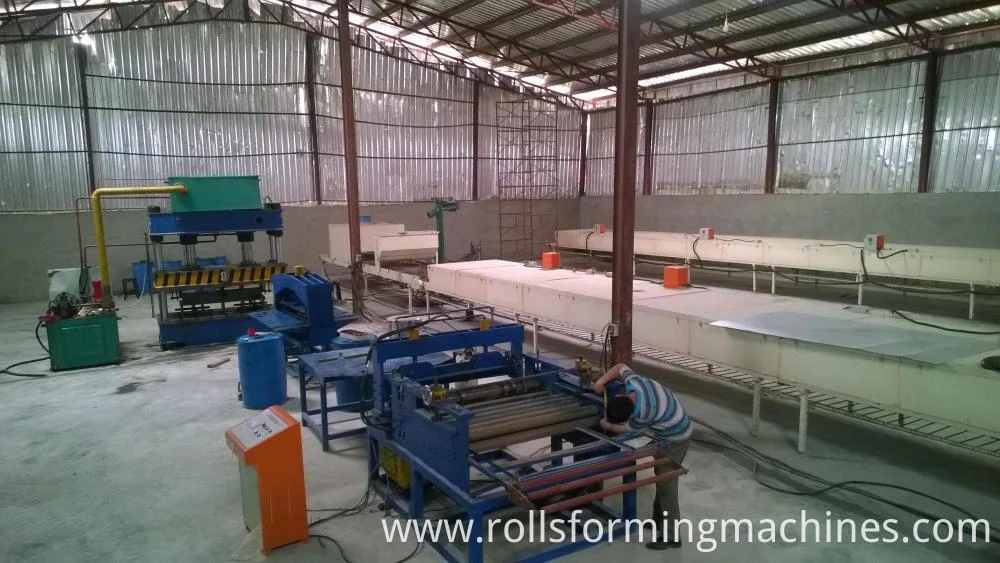

1. slitting and cutting line

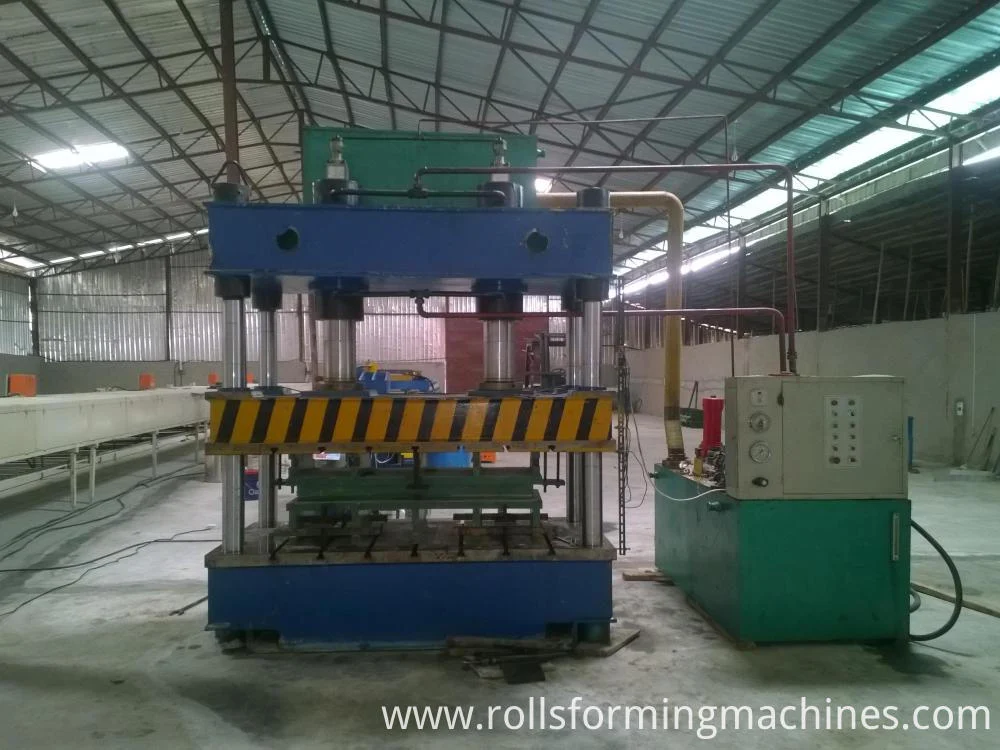

2.200T Press profile machine

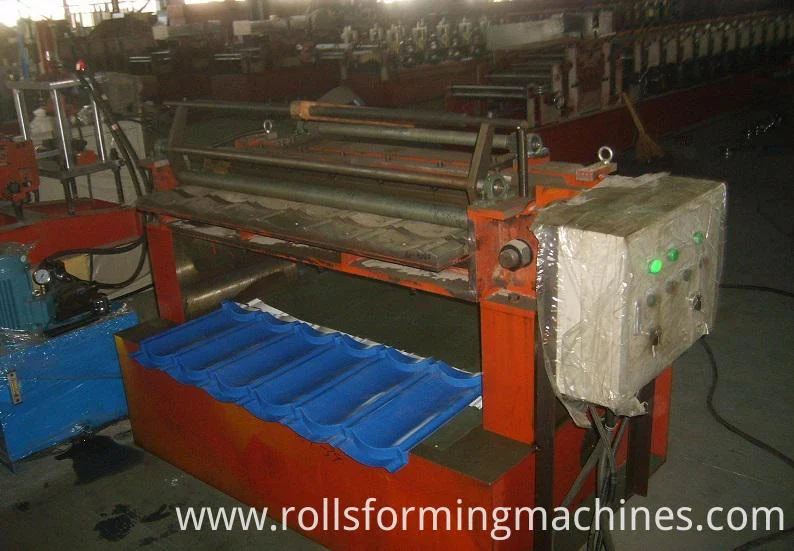

3.-Lace shearing machine
4.Auto bottom glue spraying section

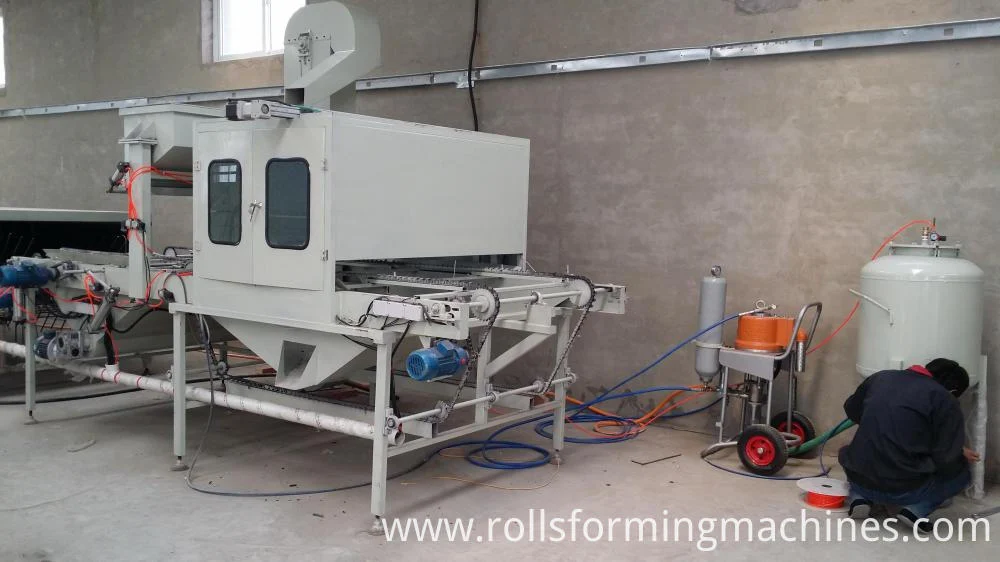

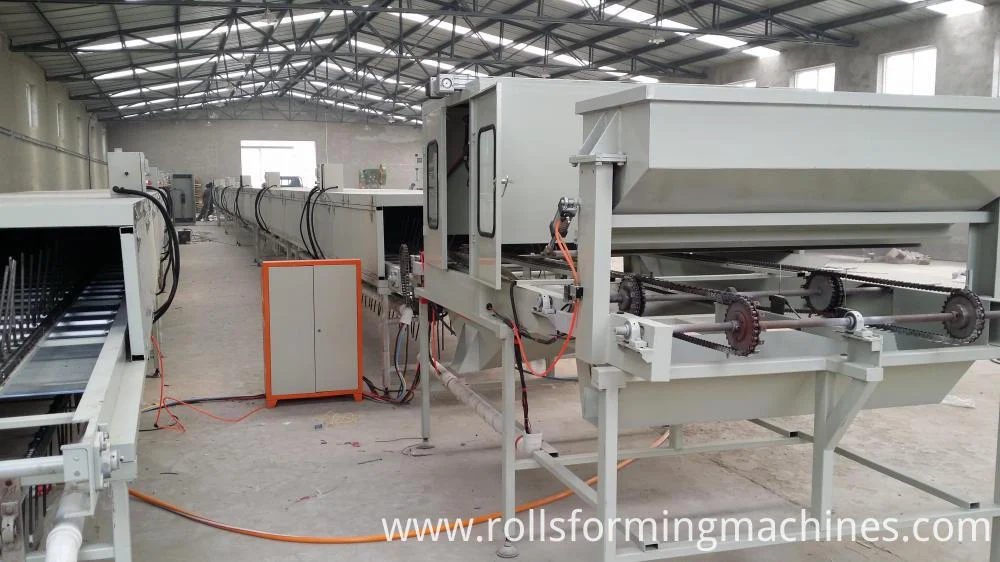

5.-Auto stone coated section

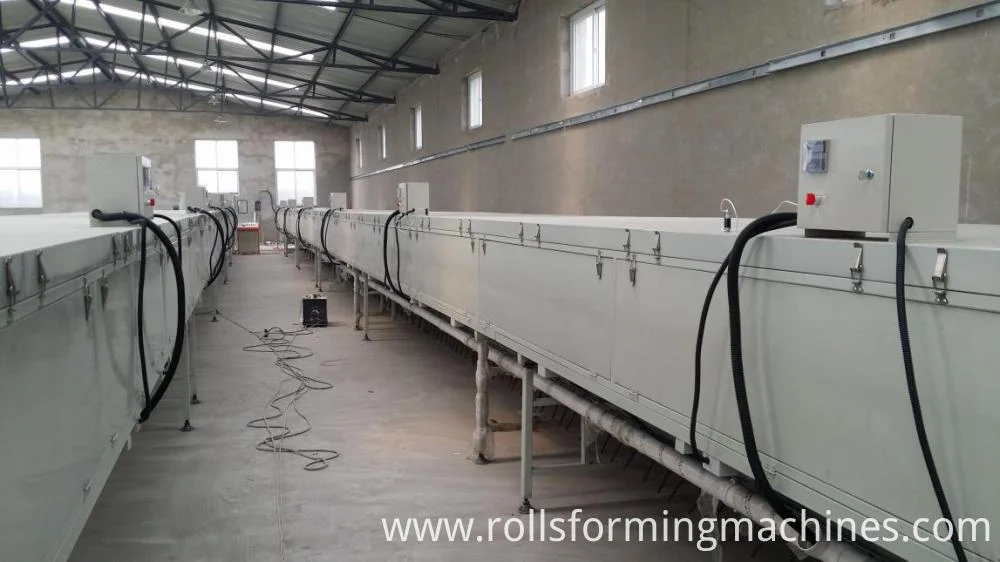

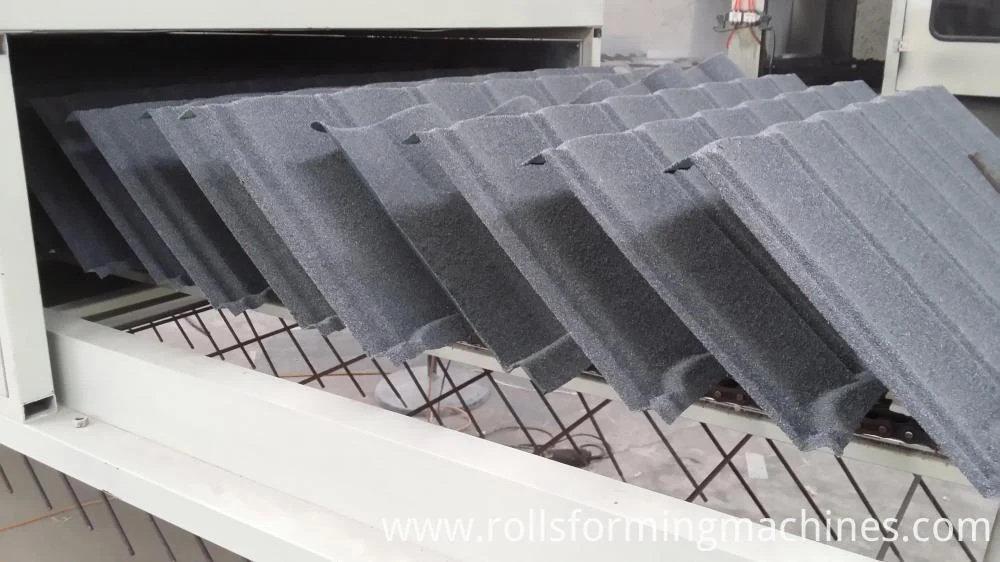

6.drying section
