Brief introduction: our Metal anchor bolt making machine adopt middle plate welded base and memorial arch structure, the base and the structure is heavy duty and high precision, they can guarantee the stable and lifetime of the machine. Our machine adopt

Metal anchor bolt making machine

Brief introduction: our Metal anchor bolt making machine adopt middle plate welded base and memorial arch structure, the base and the structure is heavy duty and high precision, they can guarantee the stable and lifetime of the machine. Our machine adopt the gear box transmission, motor reducer drive. When cut the product to length, the cutter will punch the notch on the end at the same time.

Here below is the split set ready made product photos for you check:

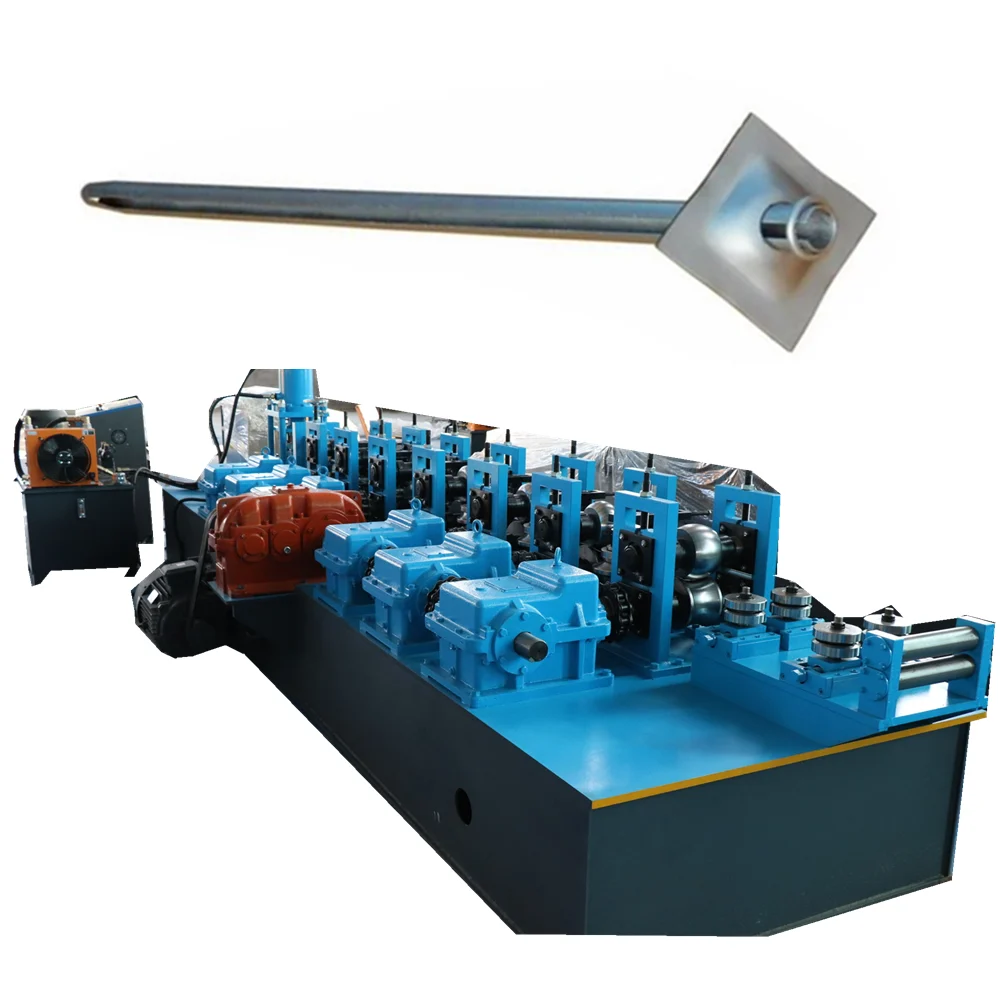

split set.jpgsplit.jpg

Product Description:

There are several machines contains in the anchor bolt making system, we can make and supply all those machines for you:

1. Metal anchor bolt making machine

2. Metal anchor bolt plate pressing machine

3. Metal anchor bolt necking machine

4. Metal anchor bolt ring making machine

5. Metal anchor bolt ring welding machine

1/Metal anchor bolt making machine:

Split set outer diameter: 39mm ( we can make as your personal requirement)

Material thickness: 2.5-3.0mm

Here below product details drawing and machine photos for you reference:

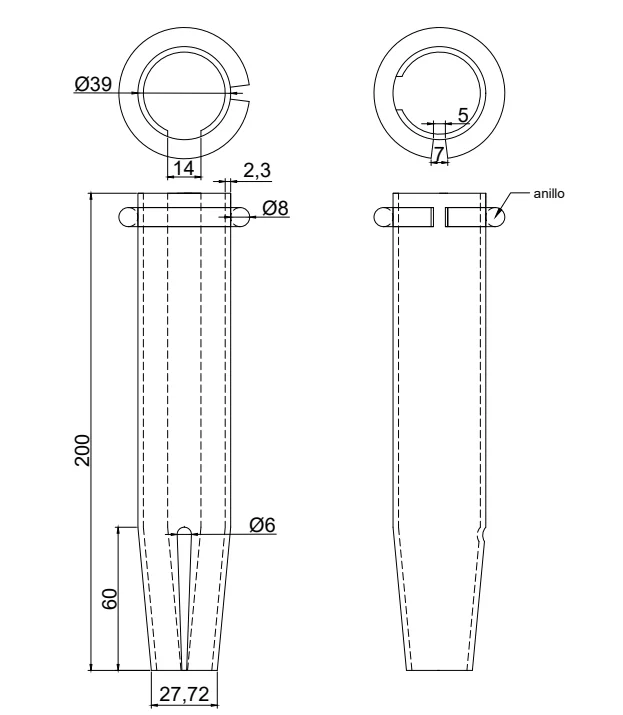

split set 2.png

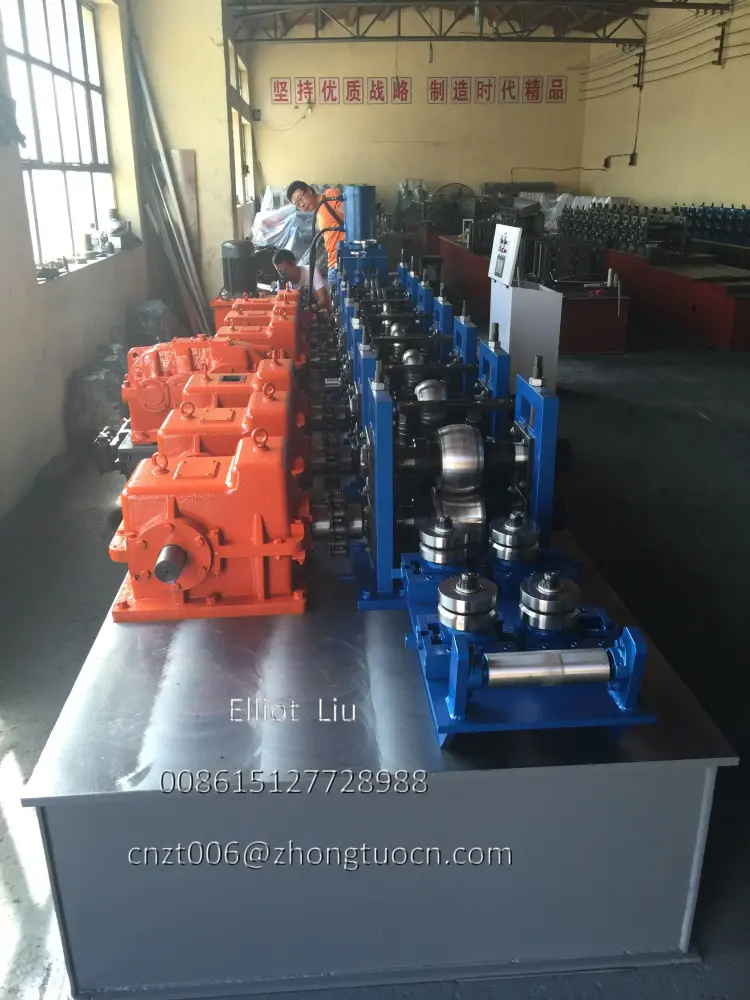

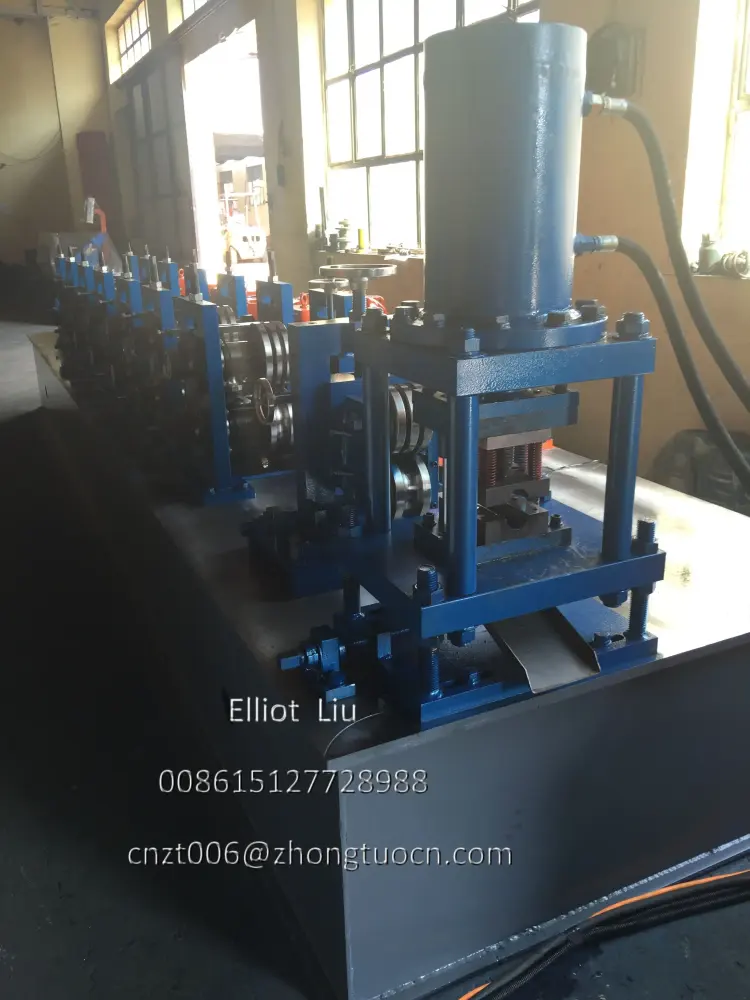

split set machine (2).jpgsplit set machine (1).jpg

Here our machine specifications for you check:

Decoiler - feeding - roll forming - cutting at the same time make the notch - receiving table

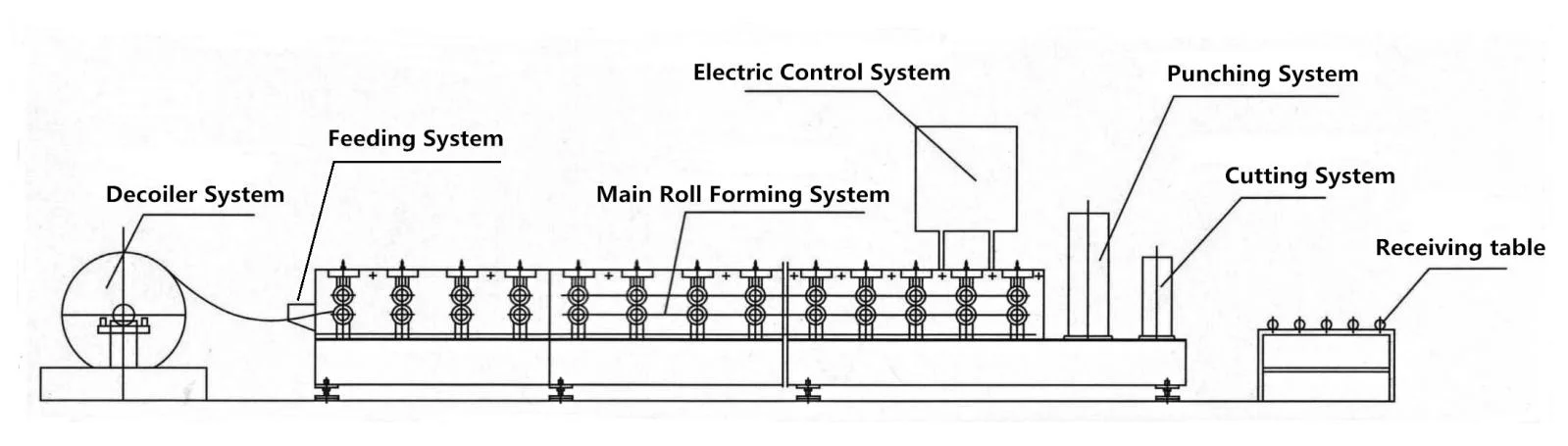

working flow.png

Item name

Parameters

Decoiler

3t loading capacity manual decoiler

Feeding rollers

2 rollers

Guiding rollers

2 rollers

Forming machine rollers

7 rollers

Transmission

Gear box

Drive motor power

15kw

Voltage

415v 50hz 3phase or as customer requirement

Machine structure

Memorial arch roller fixer with middle plate weld base

Forming speed

0-15m per min

Supported material

2.4-3.2mm

Shaft diameter

70mm

Roller material

Cr12 with quench treatment

Hydraulic station power

5.5kw (supply power for notching and shearing)

Main forming machine size

About 6000 mm×1400 mm×1500 mm

PLC computer control

Delta brand (famous) from TAIWAN

Shearing type

Hydraulic power stop shearing and at the same time make the notch

Receiving table

2.5m length per piece

Here below are the other machines we can make for you:

2/Metal anchor bolt plate press machine:

This product use the HYDRAULIC OIL machine to process.

The holes punching and shape pressing will at the same time.

Customer requirements:

Material thickness: 4.0 mm

Here below holes and other sizes details drawing and machine photo for you reference:
split set plate.png

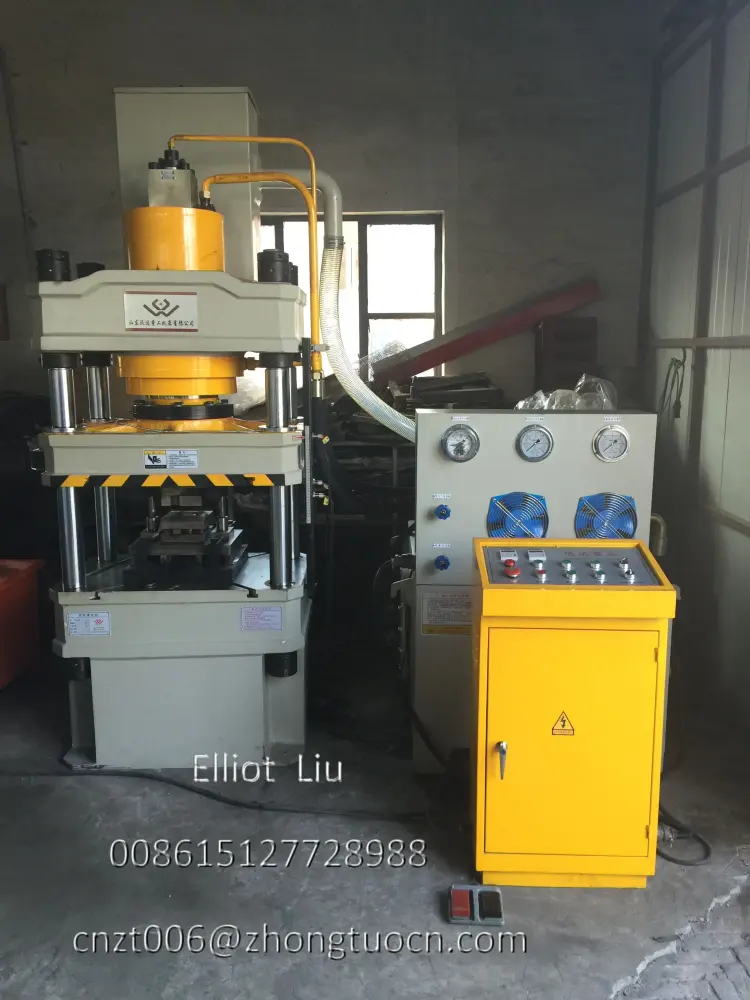

Plate making machine.jpg

3/Metal anchor bolt necking machine

This machine used for the necking of the finished split D39

Hydraulic motor power: 3kw

Mould material: GCr12

Here below the neck drawing and machine photos for you reference:

split set necking machine.png

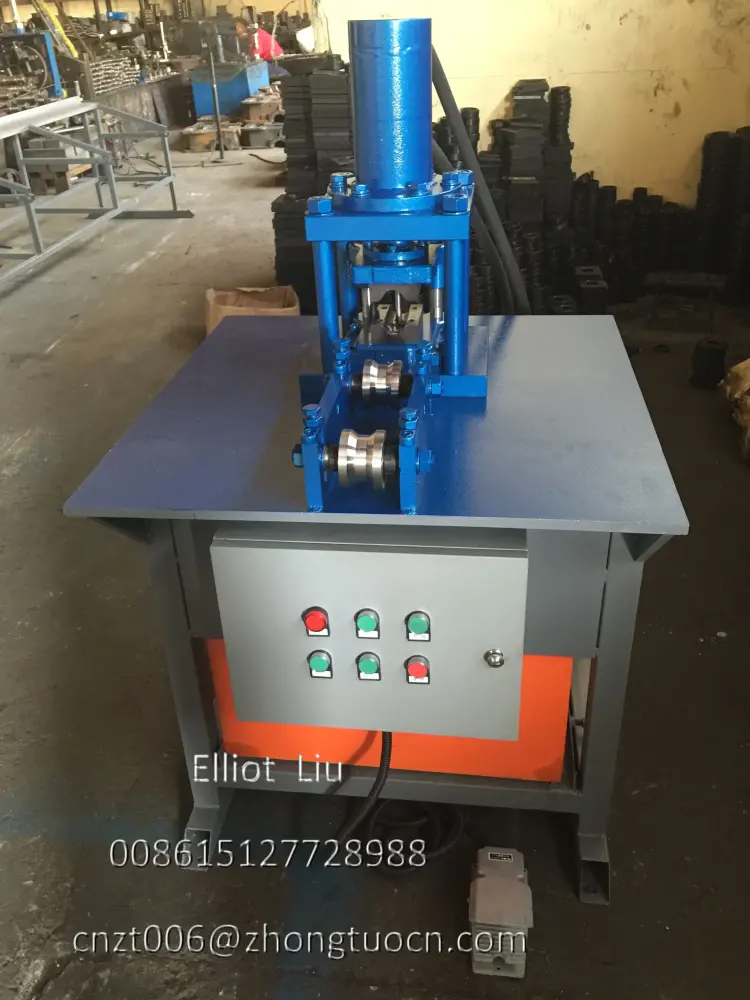

necking machine.jpg

We have other machines also if you need:

4/Metal anchor bolt ring making machine

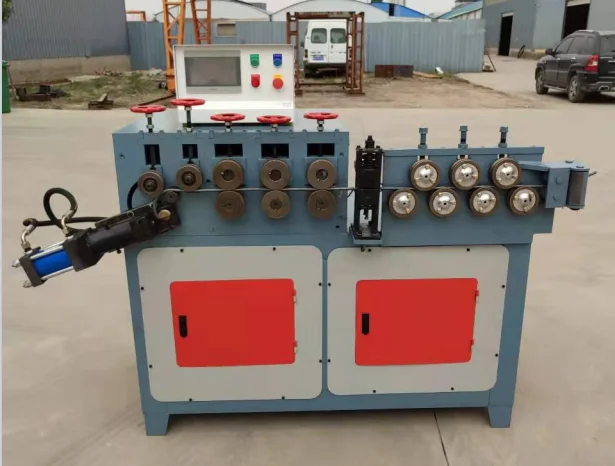

ring making machine.png

5/Metal anchor bolt ring welding machine

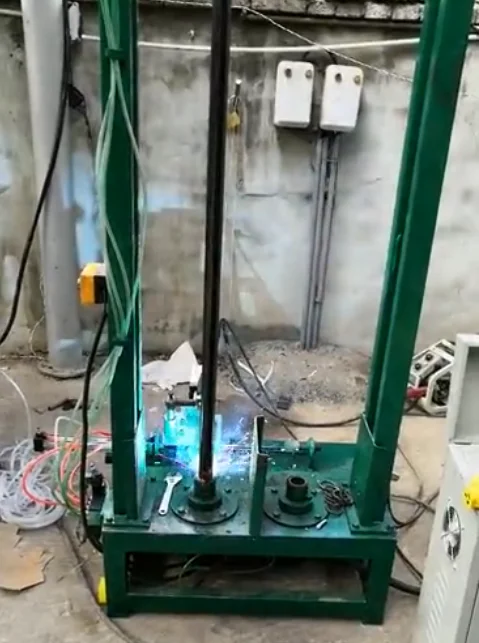

ring welding machine.png

If you have demand of those above machines, please let us know and we can prepare the detail machine offer for you, thanks.
