4-in-1 bemo standing seam metal roofing sheet making machine
4-in-1 bemo standing seam metal roofing sheet making machine
4-in-1 bemo standing seam metal roofing sheet making machine allows you to make the metal roofing sheet machine by one machine in batch fully automatic.
Detailed Content

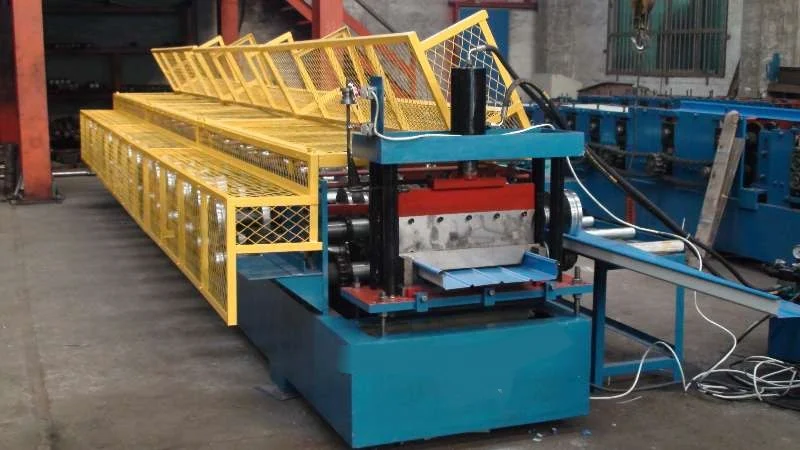

4-in-1 bemo standing seam metal roofing sheet making machine
4-in-1 bemo standing seam metal roofing sheet making machine allows you to make the metal roofing sheet machine by one machine in batch fully automatic. By this one machine, it can help you make 4 different design by one machine. And also the bending machine of the bemo standing seam can make long span roofing for big project.

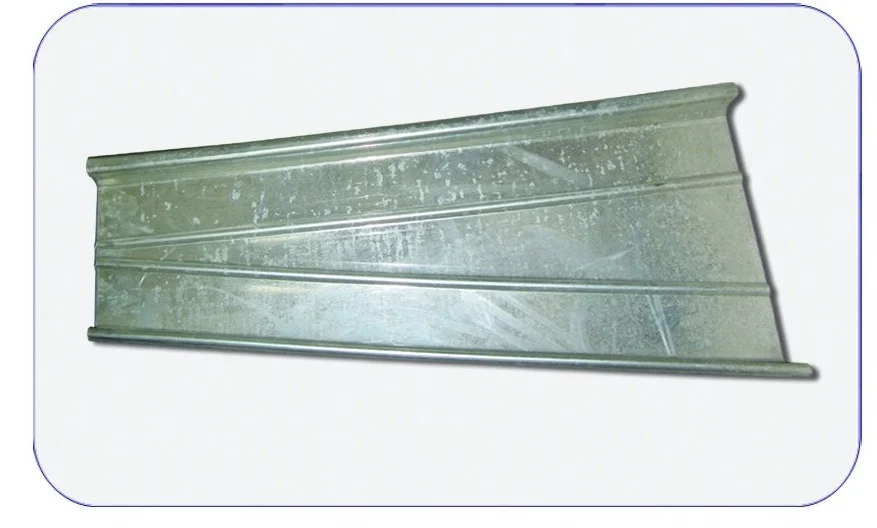

The panels can span distances of over 3m/10ft, depending upon the load criteria – and they can be installed without penetrating the standing seam.Tapered standing seam panels are ideal for cost-effectively cladding and roofing large round or conical buildings. These are produced on-site to your specifications in just a single operation.

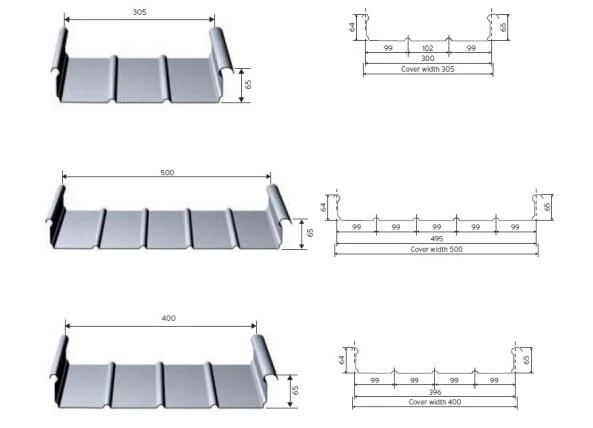

For the standing seam drawing profiles, here are some drawing profiles for your reference:
All those styles could be made our following machine;

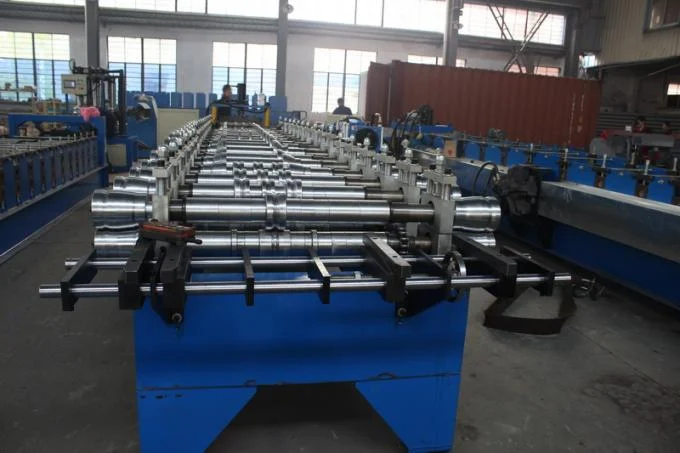

Zhongtuo 4-in-1 bemo standing seam metal roofing sheet making machine has the following features:
- Panels can be manufactured in widths between 305mm/12in and 500mm/19.7in – for highly efficient installation.
- High quality and high accuracy: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
- Accurately processing: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
- After sell service: we will give 24/7 service, we can send engineer to install the machine and train your workers. Lifttime services for our machines.
Here are 4-in-1 bemo standing seam metal roofing sheet making machine parameters for your reference:
| No. | Main parameter | |
| 1 | Length of the main part | 11500 х 1650 х 1450 mm |
| 2 | Weight of main part | 6 Ton |
| 3 | Voltage | 380 V/ 50 HZ 3 Phase (as customer’s request) |
| 4 | Roller fixer | Middle plate welded |
| 5 | Frame | 400 H steel welded |
| 6 | Frame thickness | 20mm thicker to be very strong |
| 7 | Drive mode | Chain of 1.25mm |
| 8 | Material of rollers | 45# steel, surface hard chromium plating. |
| 9 | Material of shafts | 45# steel |
| 10 | Diameter of shafts | Φ 60 mm |
| 11 | Number of rollers | 17 rollers |
| 14 | Main power | 3kw |

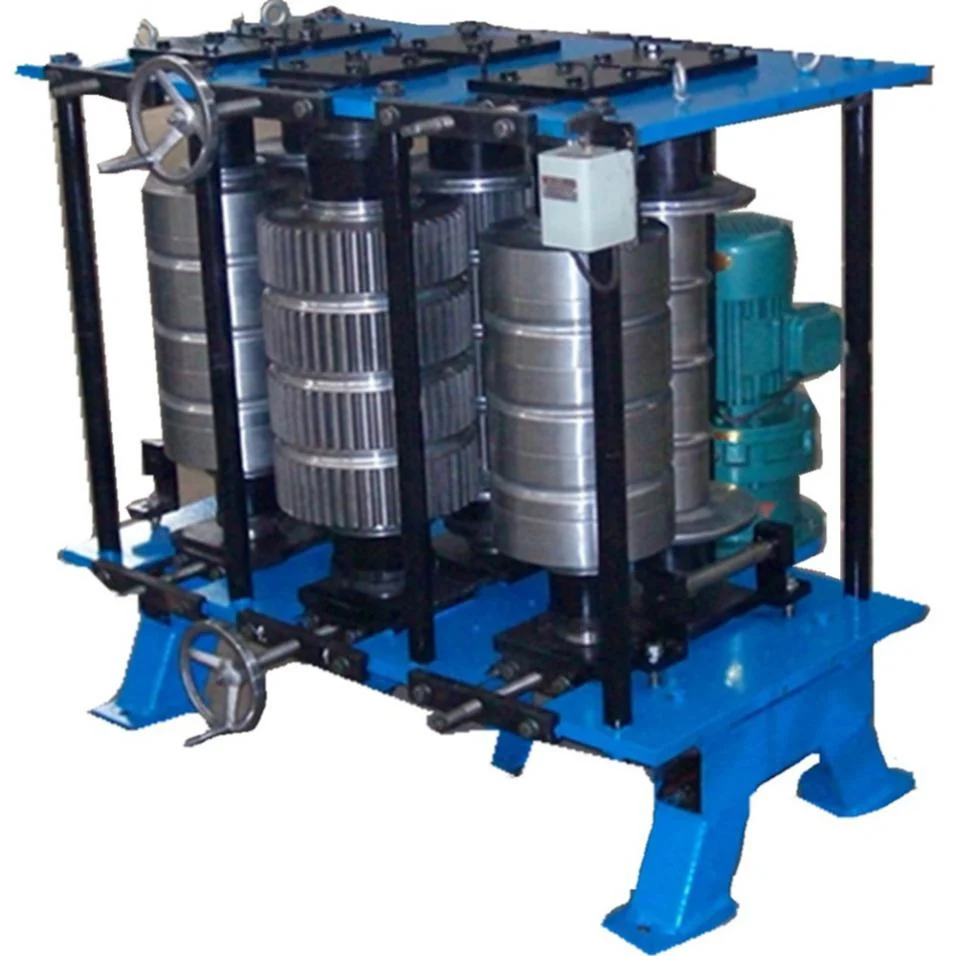

For the 4-in-1 bemo standing seam metal roofing sheet making machine bending machine:
It can help you create long and large span for some factroy building project.

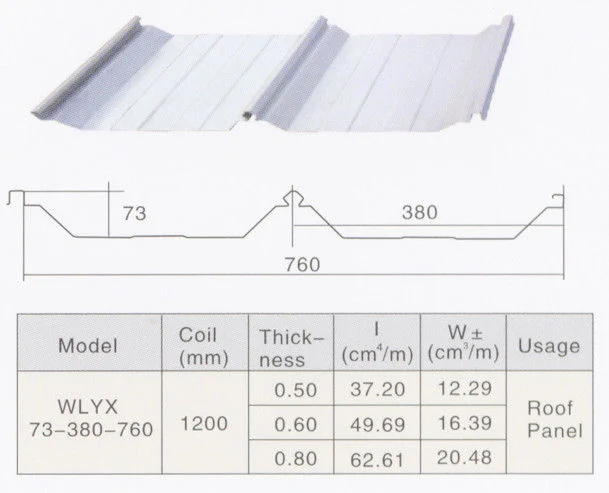

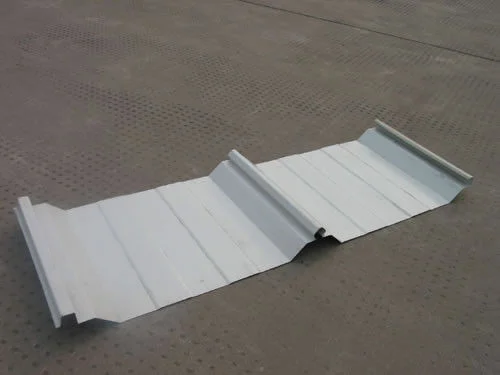

And something like bemo standing seam metal roofing sheet, we have other designs for your reference:
And also if you need, please contact me at any time.
