Sheet Metal Embossing Machine Aluminum Pebble Embossed Sheet Making Machine Embosser for decoration Will emboss steel or aluminum or copper or brass Emboss Gutt
Detailed Content

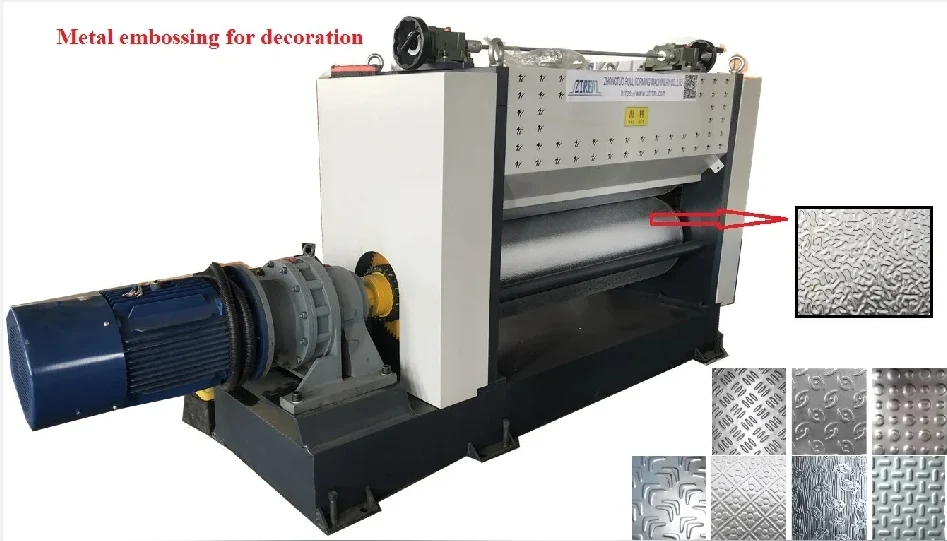

Sheet Metal Embossing Machine Aluminum Pebble Embossed Sheet Making Machine Embosser for decoration
- Will emboss steel or aluminum or copper or brass
- Emboss Gutter coil, Emboss flashing material, Emboss siding material and so on
- Rated for 26 gauge Steel 80ksi (sample pictures are 29g steel 80ksi)
- 48″ material width or as custom sized
- Speed 50 feet per minute or as customer request
- 10 hp drive motor driven by a Variable Speed Frequency drive.

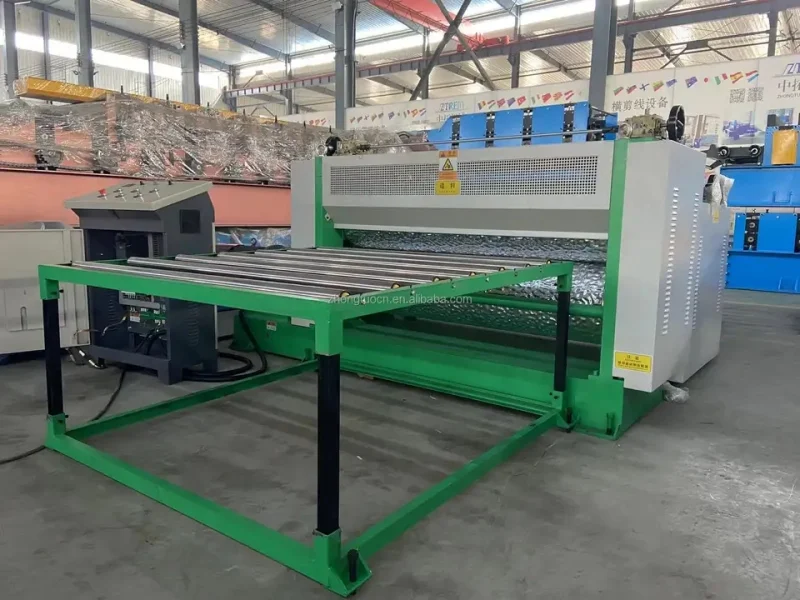

- Loop control proximity switch (the small blue box on floor in pictures)
1. The two rollers of the embossing machine are solid and forged, heat-treated, hard degree HRC55°— 60°.
2. The diameter of the embossing roller is 410mm×1300mm, and the working thickness of the pressing plate is 0.2mm-1.6mm. The depth of the pattern is adjustable.
3. The work roll is equipped with a national standard motor with a power of 15 kw, a set of special reducers, Motor brand: Shunbai (Chinese brand)
4. The overall frame is welded at the bottom. The main body of the frame is a whole. The wall thickness on both sides of the equipment is 110mm,Body solid material.
5. The pressure adjustment of the work roll is screw type up and down adjustment. Gear turbine box transmission, manual adjustment on both sides Joint method, working pressure manual adjustment device with pressure adjustment reference scale.
6. Working speed： 15m/min (speed adjustable)
7. Inverter brand: Delta

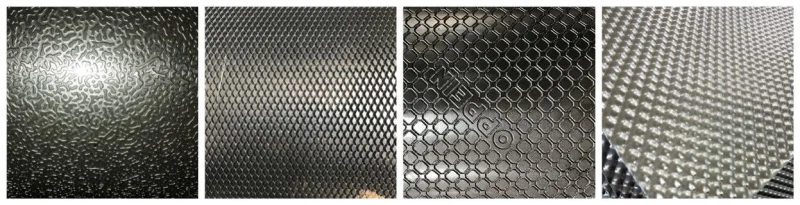

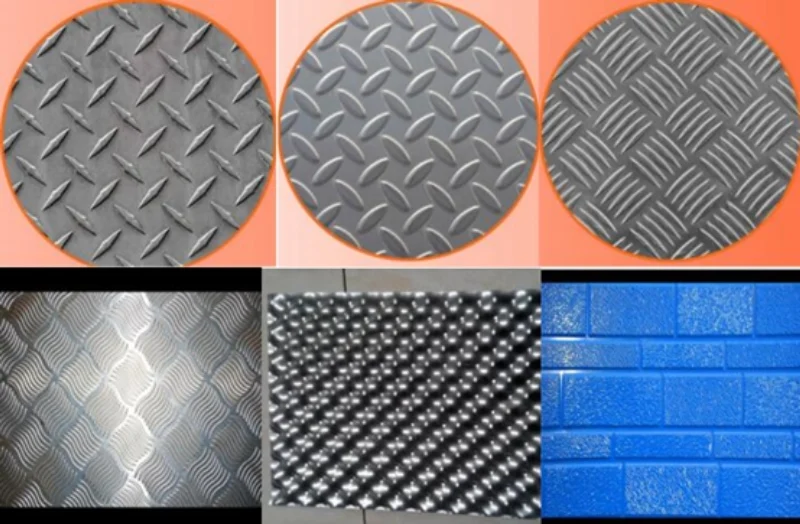

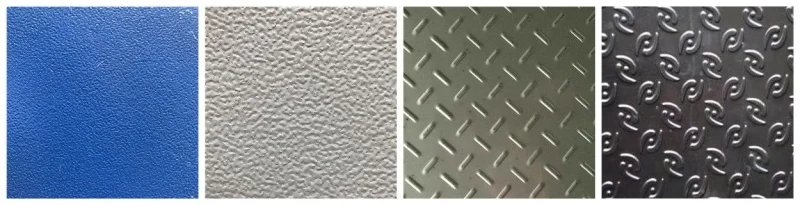

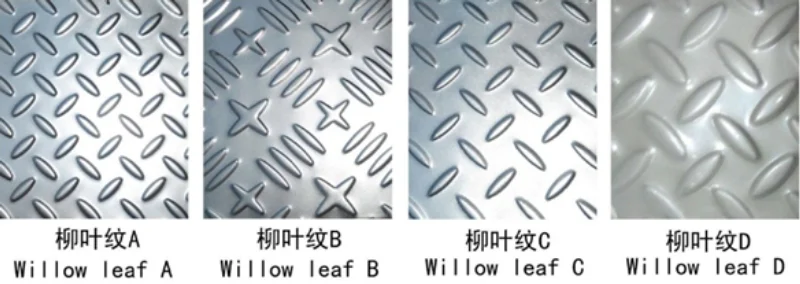

More embossing patterns for you choose:
