High-speed High-precision metal slitting line for thickness from 0.4mm till 5.0mm

A metal slitting line is a critical component of the metal processing industry, designed to cut large coils of metal into narrower strips or coils. This process is essential for converting raw metal stock into formats suitable for various manufacturing applications. Here’s a detailed look at metal slitting lines:


Components of a Metal Slitting Line:

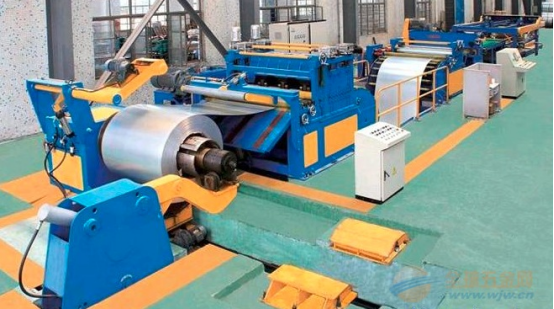

From right to left are: Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter →Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand → Recoielr→Exit coil car:

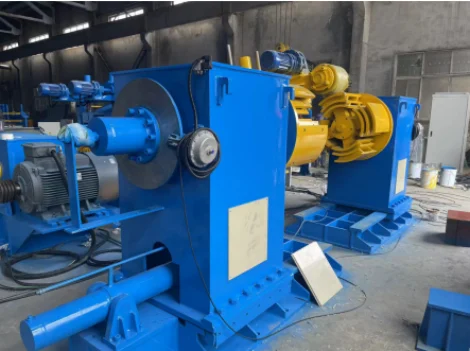

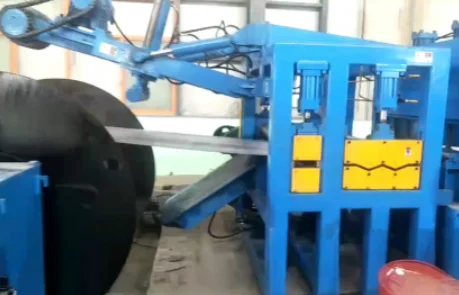

1. Uncoiler: This is where the large coil of metal is placed. The uncoiler unwinds the coil, feeding the metal into the slitting line.

2. Straightener: The straightener ensures that the metal is flat and straight before it enters the slitting section. This step is crucial to prevent any damage to the slitting knives and to maintain the quality of the final product.

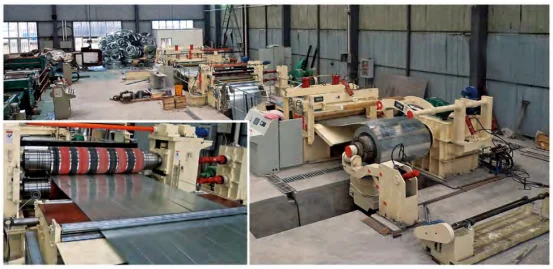

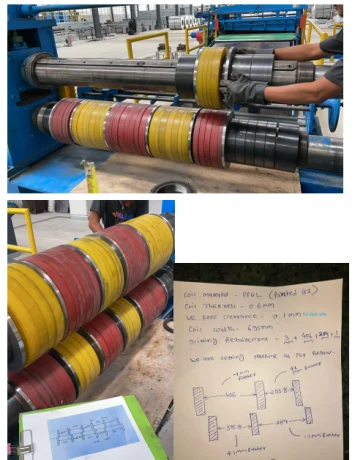

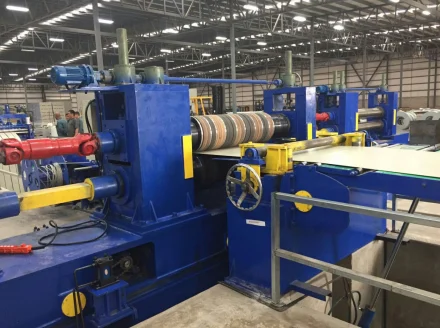

3. Slitting Section: The heart of the slitting line, the slitting section consists of a series of knives or blades that cut the metal into the desired widths. The knives are adjusted to the specific width requirements, and the metal passes through them to create multiple strips simultaneously.

4. Edge Trimming: Sometimes, the edges of the metal strip may need to be trimmed to remove imperfections or to achieve a cleaner edge.

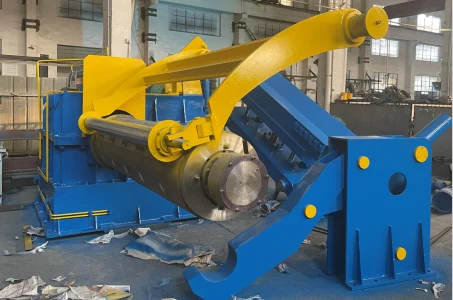

5. Recoiler: After slitting, the narrow strips are wound back into coils by the recoiler. This is often done under controlled tension to ensure the quality and consistency of the coils.


6. Edge Finishing: The edges of the slit metal can be treated with various finishing techniques, such as edge crimping or deburring, to prevent fraying and improve the safety and appearance of the final product.
7. Quality Control: The slitting line may be equipped with sensors and cameras to monitor the quality of the slitting process, ensuring that the metal strips meet the required specifications.



Operation of the metal slitting line:
Coil Loading: The metal coil is loaded onto the uncoiler.
Unwinding and Straightening: The metal is unwound and passed through the straightener.
Slitting: The metal passes through the slitting knives, which cut it into the desired widths.

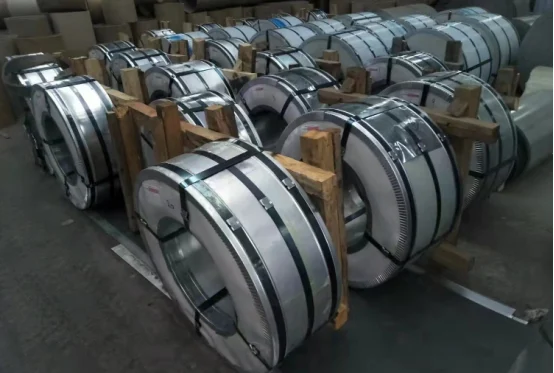

Recoiling: The slit metal strips are wound back into coils.
Post-Processing: Any necessary edge finishing or quality control checks are performed.
Storage or Further Processing: The finished coils are either stored or sent for further processing.

Advantages of our metal slitting line:
Efficiency: A metal slitting line can process large volumes of metal quickly and accurately.
Customization: It can produce metal strips in various widths and lengths, depending on the specific requirements of the end product.
Quality: The controlled environment of a slitting line ensures that the metal strips are of consistent quality and dimensions.

Applications of the slitting line:
Metal slitting lines are used in various industries, including automotive, construction, packaging, and electronics, to prepare metal for use in products such as car parts, building materials, cans, and electronic components.

Understanding and utilizing metal slitting lines effectively is crucial for any metal processing business looking to streamline its operations and improve product quality.
