How to improve step tile roof sheet machine production speed

traditional step tile roofing machine, speed is slow since many step need on the sheet, only 0-4m/min. Customers always ask how to improve the machine production speed ? After research , we make the speed reach 4-6m/min.

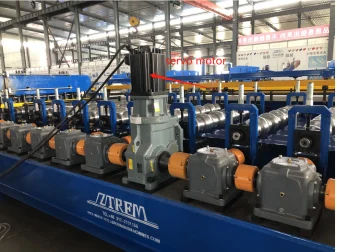

First , drive motor we use servo motor instead of traditional motor, after machine do step every time, roll forming machine start and stop speed is more fast, thus improve whole production speed.

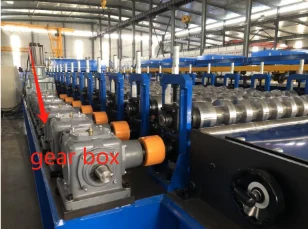

Second, transmission we use gear box instead of chains, provide more power , also improve production speed.

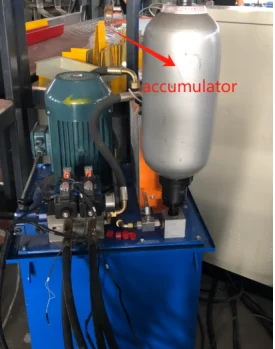

Third, roll forming machine speed improved, how to ensure step mechnism and cutting device power provided continuously? We adopt accumulator installed on hydraulic station, also increase hydraulic pump motor power to be 7.5kw. Thus ensure enough and continuous power provided to step mechnism and cutting device.

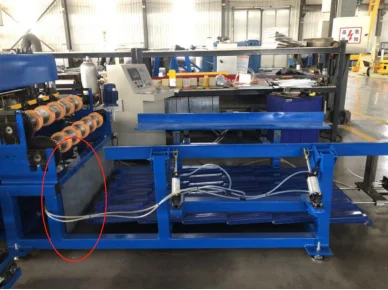

For Adamante profile roll forming machine, we also have a special design, that is the automatic stacker.
This design is convenient and good use to collect sheet.

Machine working and testing video, please refer to bellow youtube link:
 https://youtu.be/gahu-h2QU2w si=btptGwaipjiCD3yD
