steel door making machines good steel profile roller shutter door machine gate frame Roll Forming Machine
The PU shutter door machine can produce the shutter door with PU material, the machine producing process is similar to the shutter door machine. but with two shutter slats forming line and with a PU adding system.

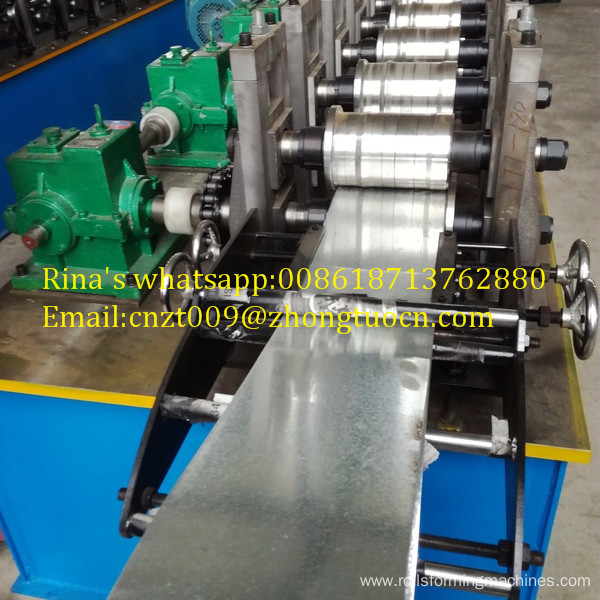

please check below pictures:
The Perforated shutter door making machine perforated Shutter Door Roll Forming Machine can finish the shutter door flats well with high quality. the Perforated shutter door making machine perforated shutter door roll forming machine including below parts: Manual Decoiler, the power pressing,the leveling, the main roll forming machine, the hydraulic cutting.
here is the Perforated shutter door making machine perforated shutter door roll forming machine leveling parts. it sued to make the steel coil flat.

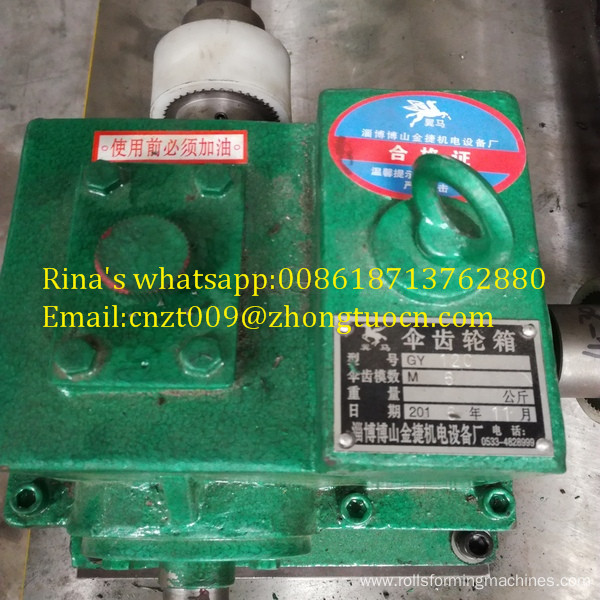

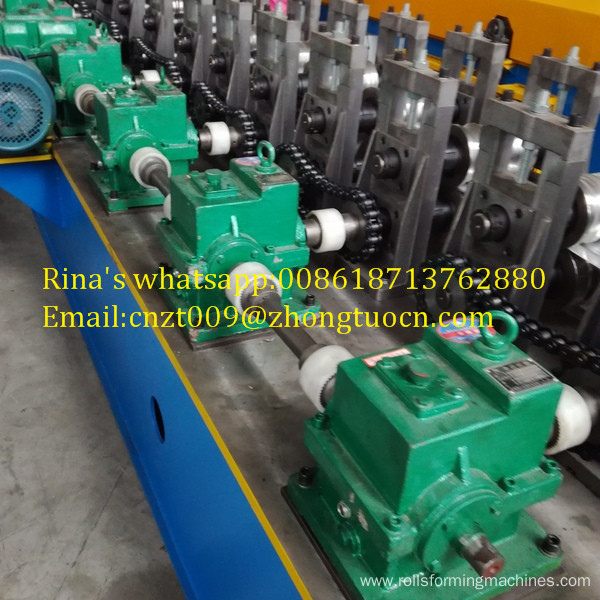

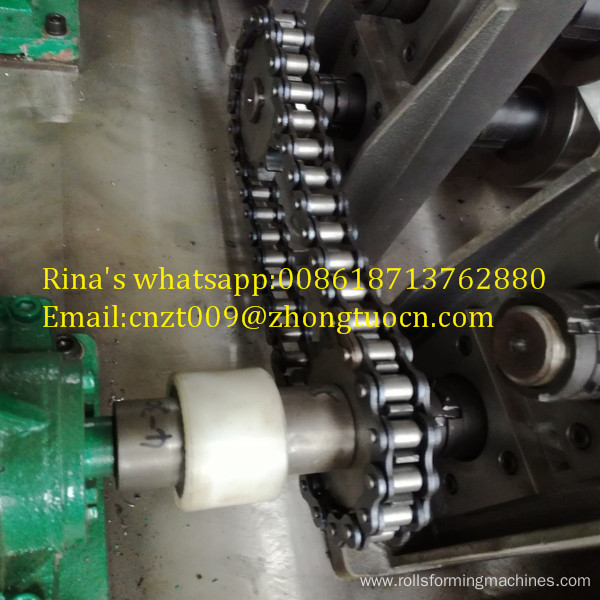

this machine is with gear transmission. and also the machine can be with the gear box transmission.
below is the main details specifications of the shutter door:
Perforated Shutter door roll forming machine
Process for the whole production line:
Decoiler---- perforation machine--- entry leveling---- roll forming machine---- shearing system--- run out table
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system.
a. Coil inner diameter: 450-550mm
b. Coil max width: 300mm c. Max carrying capacity: 3000kg
a.Material of mold: Gcr12MoV quenched
It is a independent machine to punch the holes, you can remove this part when you customer doesn't need the holes.
This part will level coil to make sure it is neat clean and straight.
Roll forming machine
a. Number of forming steps: 12 stations
b. Shaft material: 45# steel with
quenched treatment, precision
machined, The diameter: ￠50mm
c. Roller material: bearing steel with
d. Transport: by gear
e. Forming speed: 5-15m/min (it can be
adjusted by your demand) f. Motor:4kw
G. Voltage:380v, 50Hz,3 phase
h. Structure:Memorial arch frame
I. Size of machine:5.5m *0.8m *1.2m
a.The material of blade: Cr12Mov,
Hardening HRC 58-62℃
C. Power supply: Hydraulic station
a. Hydraulic motor Power:3kw
b.Hydraulic oil: 46#
c.Hydraulic pressure : 12Mpa
PLC control system, we will take Delta .
You can set the cutting length in the PLC.
Run out table
It adopts welded steel and supported roller to transmit the products.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery time :30 days
Container need: one 20`
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and
USD 80/person/day for salary.
3. Need one technician.
4. Training time: one week (contains the time of installation and adjustment)
