ZT-87 Shutter Door Roll Forming Machine

    Payment Type: L/C,T/T,D/P,D/A
    Incoterm: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-009

Material: Stainless Steel

Thickness: 40mm

Opening Style: Rolling

Opening Type: Power Driven

Motor Shaft: 4.5m

Power: 100W, 5.5kw

Output Torque: 600N

Door Panel Pattern: Linear

Color: Brown

Surface Finishing: Finished

Speed: 10-15m/min

Shaft Diameter: ¢56mm

Roller Station: 14steps

Shaft Material: 45#steel

Roller Material: :45#steel,quenched HRC58-62,coated With Rigid Chro

Additional Info

Packaging: As Customer's Requirement

Productivity: 10-15m/min


Transportation: Ocean,Land

Place of Origin: Made in China

Supply Ability: 20set per Month

Certificate: ET, ISO9001

Product Description

ZT-87 Shutter Door Roll Forming Machine

Product Destription

TheGarage Shutter Doors Making Machine can manufacture the galvanised roller shutter door slat. Produced products are in fashionable design and are widely used.Roll Shutter Door Slat Roll Forming Machine with the highest security in rolling fire doors, rolling steel doors, fire doors, rolling shutter, offshore rolling doors, offshore rolling fire doors, storm doors.

Quickly informations:

1.Control system:computer control

2.Main forming unit driving motor power:5.5kw

3.Material of rollers:45#steel,quenched HRC58-62,coated with rigid chrome.

4.Material of roller shafts:45#steel

5.Step of rollers:14steps

6.Forming speed:10-15m/min

7.Thickness to be rolled:0.5-1.5mm

Components of Line

1. Decoiler

 Garage Shutter Doors Making Machine-decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

a. Coil inner diameter: 450-550mm

b. Coil max width: 300mm
c. Max carrying capacity: 3000kg

(you can choose this part with Electric or hydraulic)

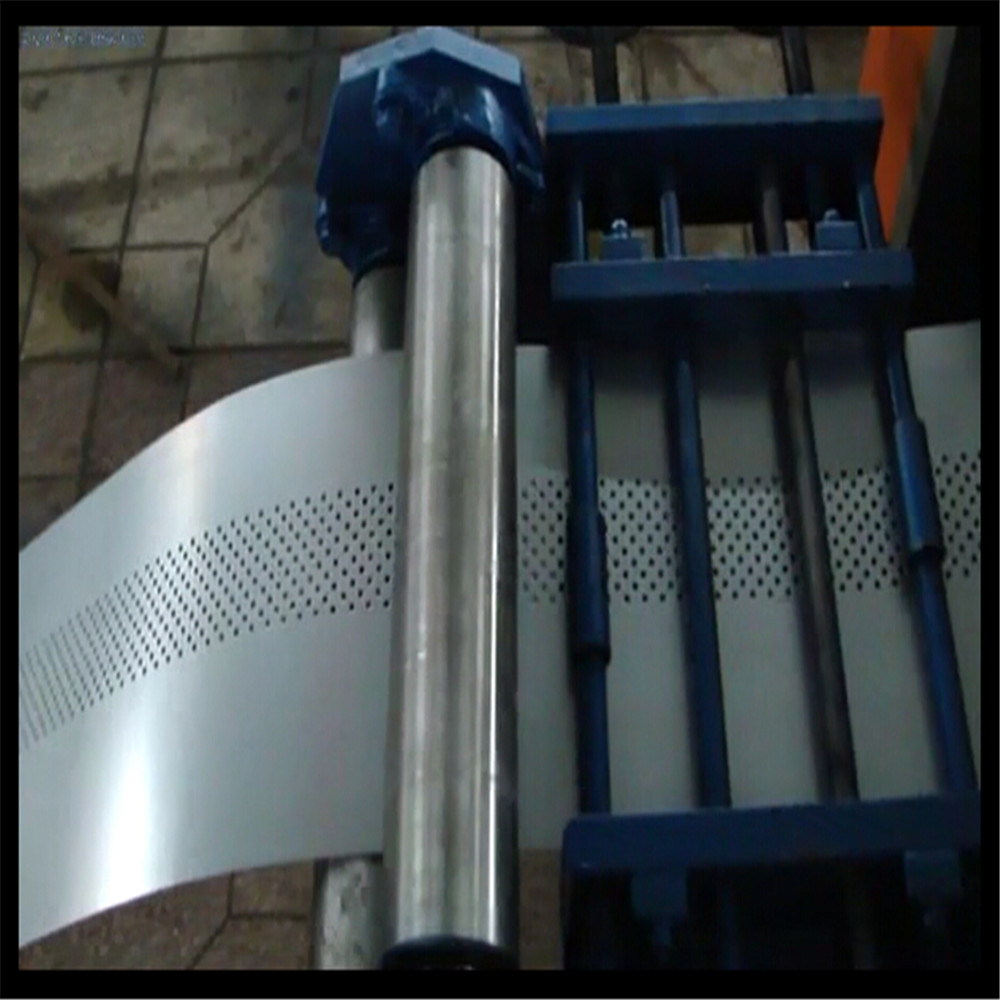

2. Entry leveling and punching dots

This part will level coil to make sure it is neat clean and straight.

3. Roll forming machine

Garage Shutter Doors Making Machine

 Garage Shutter Doors Making Machine

a. Number of forming steps: 14 stations

b. Shaft material: 45# steel with quenched treatment, precision machined,

The diameter: ¢56mm

c. Roller material: bearing steel with quenched treatment

d. Transport: by gear

e. Forming speed: 10-15m/min
f. Motor:5.5kw

g.Voltage:380v, 50Hz,3 phase

h. Structure: independent stand

4. Shearing system

Garage Shutter Doors Making Machine

 Garage Shutter Doors Making Machine

Servo flying and tracking cutting saw, the cutting saw will adjust the cutting speed and location according to the main machine speed. By this method, the machine working speed will be same as the main machine accordingly. The cutting plate we take the best material for cutting it in high speed and beautiful cutting scare.

The material of blade: Cr12Mov, Hardening HRC 58-62℃

Length Tolerance:3m±1.5mm

5. Hydraulic station

 Garage Shutter Doors Making Machine

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Hydraulic pressure : 12Mpa

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

6. PLC station

 Garage Shutter Doors Making Machine-PLC station

PLC control system, we will take Panasonic or you can specify the one you like. Different with normal machine, PLC programmed will add servo cutting saw control parameters.

7. Run out table

It adopts welded steel and supported roller to transmit the products.

1.Processingflow diagram of machine

Manual Decoiler→ Feedingmaterial into machine →Roll forming machine →Measure length →Punch the lock holes→Hydraulic cutting →Finished Products

2.Technical parameters


manual decoiler, guiding platform,main machine of roll forming, punch part,cutting device, electric motor,hydraulic station,Delta PLC control system, run out table


Raw material






Inner Diameter:450-550mm

Expand by manual

Outer Diameter: max 1500mm

Max Coil width:300mm

Capacity: 1.5T

Main Forming


Forming steps

12 rollers

Shaft diameter


Design type

Middle plate

Machine frame

Memorial arch

roller material

GCr12MoV steel

shaft material

45# steel with tempering

Work speed



By gear

Power of main machine


Type of cutting


Cutting tolerance




Punch mould


Working pressure




Hydraulic oil


Hydraulic power


Cutting length

As required

No distorting or wasting. High level safety factor.

Control Device



PLC language

English and Chinese (or as required)

Touch screen



Automatic length and quantity measurement


Spare part


About 3.8 ton


5200*800*1400 (mm) L x W x H

Main body color

Main body color


380v/50hz/3ph(or as required)

Termsof payment: 30%T/T,Balance to be paid before shipping after inspection.

Deliver time: 30 workingdays.

Warranty: 1. Supportthe technology all the life. And the machine broken

Because of quality, we can changethe broken part for free within

one year.

2. Training: If you come to ourfactory,we can teach you for free.

If you need technician go foreign,the buyer need pay the cost for

visa, hotel, ticket, food andothers, and buyer need pay the

technician USD80/day for salary.

There need one technician. Trainingtime will be one week.

Whychoose ZT?

1. More than 20 years experiences inmanufacturing roll forming machines.

2. We use automatic control software tomanage productive information makes the

whole automatic control system has animprovement in automaticity.

3. High performance in operation,maintenance and debugging. Easy to load and


4. Good machine quality, Competitive price,Fast delivery time.

The shutter door roll forming machine for your reference:

The shutter door machine pictures

The shutter door machine pictures 2
