Silenced Guide Making Machine For Shutter Door

Share to:
    Unit Price: USD 22000.00 - 8500.00 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: ZT-005-92

Additional Info

Packaging: As Customer's Requirement

Productivity: 10-15m/min

Brand: ZHONGTUO

Transportation: Ocean,Land,as customer requirem

Place of Origin: Made in China

Supply Ability: 20set per Month

Certificate: ET, ISO9001

Product Description

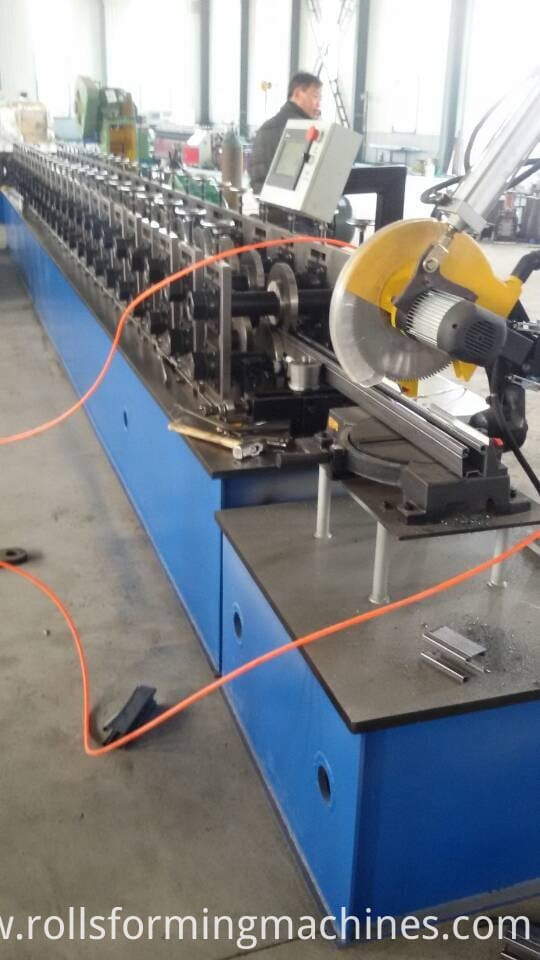

Silenced Guide Making Machine For Shutter Door

The silenced guide general use for the shutter door, it is will like a slideway to make the shutter up and down. Normally we will add gum strip when our shutter door silenced guide machine working, the gum strip will make the noise small no noise when you slide the shutter door.

Our shutter door silenced guide machine have six parts, they are Decoiler-- feeder-- roll forming--cutting--PLC control system--hydraulic station.. On the top of main roll forming part, there will have a wheel to hold on the gum strip. When the machine working, our machine will add the gum strip to the guide.

Silenced Guide Making Machine For Shutter Door


Process Flow of Silenced Guide Making Machine For Shutter Door:

Decoiler→ Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Silenced Guide Making Machine For Shutter Door

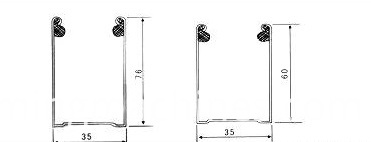

The product we can do :

As a manufacturers,we can design the silenced guide by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Until now,we can do many kinds of shutter door silenced guide machine ,such as shutter door silenced guide machine with gum strip , U-shape shutter door silenced guide machine .

Shutter Door Silenced Guide Machine

Parameters of Silenced Guide Making Machine For Shutter Door

Raw material

Type: colored steel plate, galvanized plate, or aluminium plate

Thickness: 0.5---1.5 mm (As customer`s need)

Material hardness: 550 Mpa---350 Mpa

Material width: According to customer`s profile

Decoiler

Max width: 300mm (According to customer`s profile)

Inner diameter: 450-650mm (According to customer`s profile)

Max Loading capacity: 5 T

Main roll machine of Silenced Guide Making Machine For Shutter Door

Working efficiency: 0-20m/min

Forming by rolling: Roll 14 rows (Final rollers depend on the design)

Roller material: Gcr12MoV quenched

Shaft material: 45#steel processing

Diameter of shaft: ¢50mm (Final rollers depend on the design)

Main part power: 7.5kw (Depend on the thickness of material and size of machine)

Hydraulic motor power: 3kw (Depend on the thickness)

Scissor material: Gcr12MoV quenched

Roller material: Gcr15MoV

Voltage: 380V, 50HZ,3 phase (As customer`s need)

Transmission: Gear box (Chain and gear box depend on thickness and customer`s need)

Shutter Door Silenced Guide Machine

Shutter Door Silenced Guide Machine

Silenced Guide Making Machine For Shutter Door Silenced Guide Making Machine For Shutter Door

FAQ

1. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

2. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

3. What can you do if the machine broken?

Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts to replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

4. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

5.How long the Steel Shutter Door Slide Making Machine could be made?

Normally speaking, the machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

Looking for ideal Silenced Guide Making Machine Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Silenced Guide Machine For Shutter Door are quality guaranteed. We are China Origin Factory of Shutter Door Silenced Guide Machine. If you have any question, please feel free to contact us.
