Double Layer Roll Forming Machine Popularn In Most Our Customer

    Unit Price: USD 25000.0000 - 6000.0000 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union,OA
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-009

Additional Info

Packaging: nude

Productivity: 25m/min

Brand: zhongtuo

Transportation: Ocean,Land

Place of Origin: cangzhou

Supply Ability: 30sets/month

Certificate: ce/iso9001

Product Description

Corrugated Roof Sheet Making Machine Product description

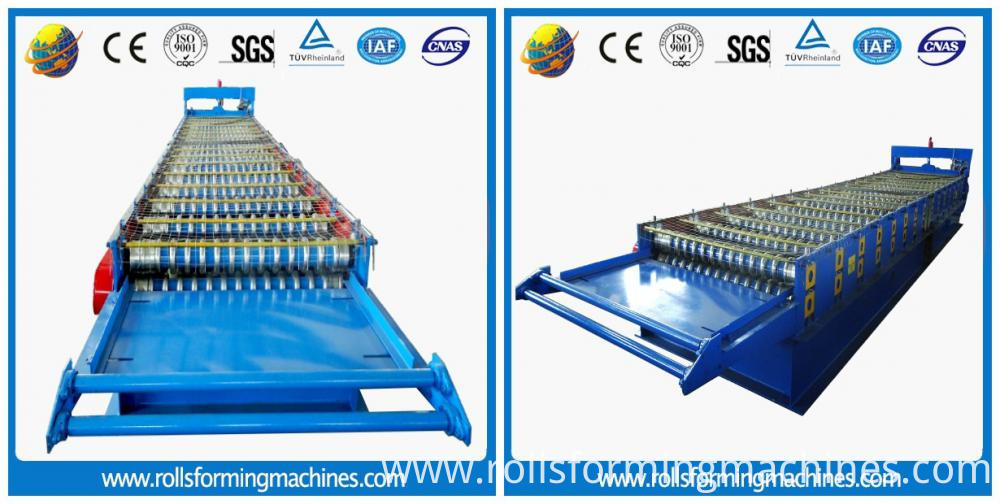

This kind of Corrugated Roof Sheet Making Machine used in simple house, steel plants and other wall board production.The miximum speed can be 45m/min,greatly improving the production efficiency.The finished corrugated sheet are widely used in some temporary construction as wall or roof panel,for example .The sheet or panel is light as well as low cost but high strength, short building period, and re-cycle use.


Specification of Metal Floor Deck Sheet Panel Roll Forming Machine

Material Type:GI/PPGI/AL

Material width:914/1000/1200/1220/1250mm(customized)

Material Thickness:0.3-0.8mm

Sheet length: Any length

Length Tolerance:±2mm/6m

Working Speed:8-25m/min (10 piece per min as 8 feet per piece,standard machine)

Control System:Mitsubishi/Siemens PLC& transducer(customized)

Total Power:About 8.5KW

Total Weight:About 6T(up to the final design)

Un-coiler System

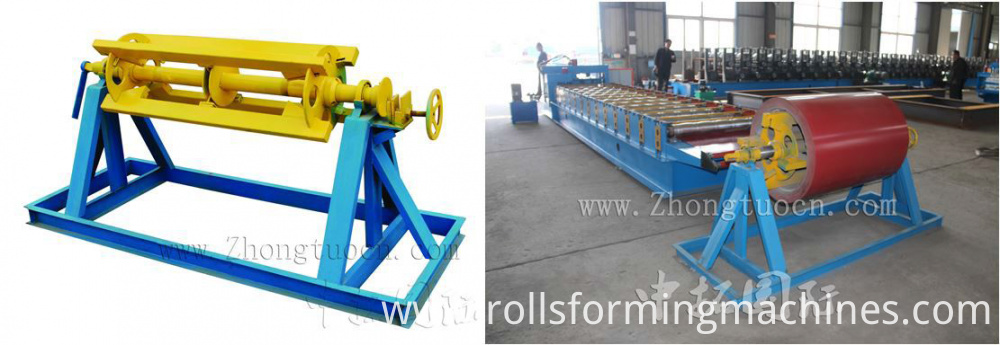

corrugated roof sheet making machine 2
Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system

Loading-capacity:5T

Uncoiling-width:1000/1200/1250mm

Inner-diameter: 450-550mm

Entry Beach

corrugated roof sheet making machine 04
Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.

Main Roll forming machine

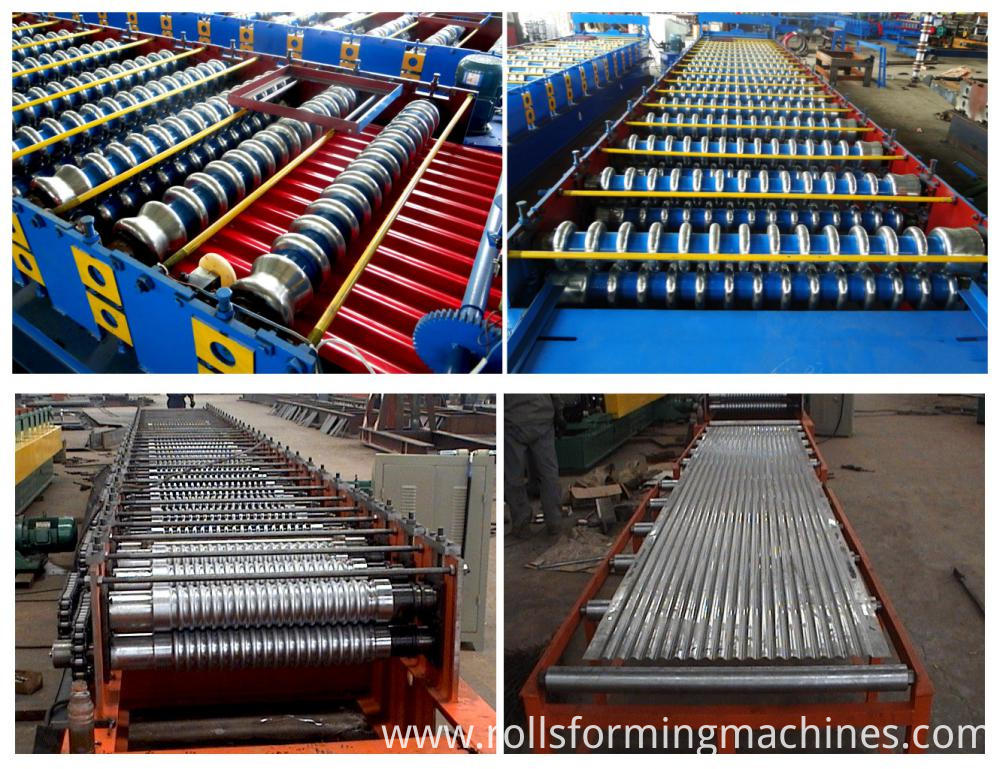

corrugated roof sheet making machine 06
Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Frame : 350 H steel

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Length of the main part:8650*1650*1500mm

Voltage:380V/50HZ3Phase

Roller fixer : middle plate

Material of shafts: 45#steel

Diameter of shafts: φ80mm

Number of rollers : 18 rollers

Shearing Mechanism

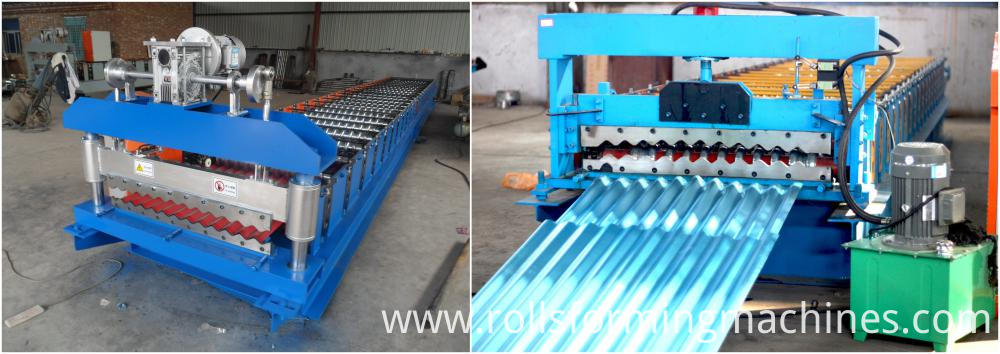

corrugated roof sheet making machine 07
Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Function: Automatic cutting controlled by PLC.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Products receiving tables

table
