Automatic Double Layer Floor Deck Roll Forming Machine

Share to:
    Unit Price: USD 28500.00 - 6500.00 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union,OA
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: Zt-003

Additional Info

Packaging: One 40GP

Productivity: 12m/min

Brand: Zhongtuo

Transportation: Ocean,Land

Place of Origin: Hebei

Supply Ability: 30sets/month

Certificate: CE/ISO9001

Product Description

Automatic Double Layer Floor Deck


Roll Forming Machine

Double layer metal forming machine


Components of production line

No.

Name

Unit

Qty

1

Manual Decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1

Production parameters

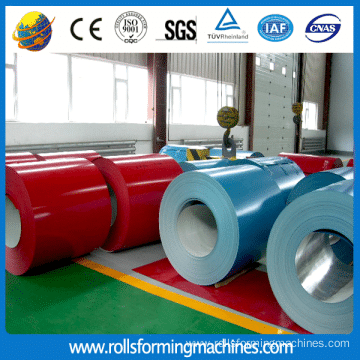

Processing material: colored steel plate, galvanized plate, or aluminumplate

Material thickness: 0.3- 0.7mm

Material width:1220mm

Forming speed: 12m/min

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity

Uncoiling width

Inner diameter

5T

1220mm

450-550mm

Coil feeding part

Usage: Put the raw material(steel plate) through the beach tomanufacture and process,it can guarantee that the products are neat, paralleland everything is uniformity.Please refer to the equipment regulation to knowthe function of locate angle iron.

double layer


Forming device


Usage: In order to keep the product shape and precision, adopts weldedsheet structure, motor reducer drive, chain transmission,roller waschromed which can keep the molding plate surface smooth and not easy to bemarked when it is working

Feature : Ensure stability , precision and lifetime.

No.

Main parameter

1

Length of the main part

About8500х1650х1500mm

2

Weight of main part

About 5.5 t

3

Voltage

380V/50HZ3Phase (as customer`s request)

4

Roller fixer

Middle plate welded

5

Frame

350 H steel welded

6

Frame thickness

16mm

7

Drive mode

Chain

8

Material of rollers

45# steel, surface hard chromium plating.

9

Material of shafts

45# steel

10

Diameter of shafts

Φ80mm

11

Number of rollers

15 rollers

14

Main power

5.5kw

Double Layer Roll Forming machine (3)



Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming,no distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

Blade Material

Cutting system

Cr12 quenched

Full automatic

Double Layer Roll Forming machine (5)



Counter

Onecounter gauges length, pulses, and decides length. Omron encoder for length measurement.



Products receivingtables

1. It adopts welded steel and supported roller to transmit the products.

2. 3*0.9*0.6m

Controlling device

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speedwith

stability, precision and lifetime.

2.Other electric element are Delta

3.Equipped with movable switch, air break, radiator, transformer &electric leakage protector for operation convenience and safety.

Screen

PLC

Text screen displayer

Taida DVP14ES from Taiwan


Looking for ideal Automatic Double Type Tiles Equipment Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Double Layer Decker Profiles Roofing Roll Forming Machine are quality guaranteed. We are China Origin Factory of Double Layer Decker Cold Forming Machinery Line. If you have any question, please feel free to contact us.
