Round and Square Rain Gutter roll forming machine

Round and Square Rain Gutter roll forming machine

Unit Price: USD 20000 - 8000 / Set/Sets
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now Add to Basket

Basic Info

    Model No.: ZT-009-06

Additional Info

    Packaging: plastic film packaged and then loaded into the container

    Productivity: 8-10m/min

    Brand: Zhongtuo

    Transportation: Ocean

    Place of Origin: China(mainland)

    Supply Ability: 15 sets per month

    Certificate: CE/ISO9001

Product Description

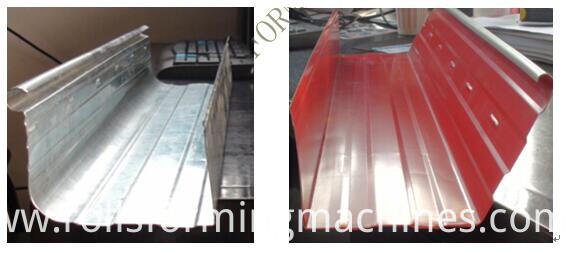

Round and Square Rain Gutter Roll Forming Machine

chuva rolo sarjeta formando máquina

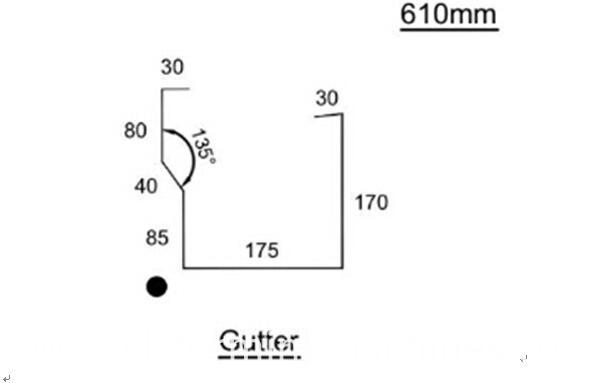

Round and Square Rain Gutter roll forming machine Profile for your reference:

chuva rolo sarjeta formando máquina


The usage of the Round and Square Rain Gutter roll forming machine

When we build the house using the steel roof and steel wall, we also need other accessories materials such as the riage cap,

the downspout pipe and the rain gutter. The rain gutter is used to lead the rain down into the downspout onto the floor.

so the rain can not collect much on the roof, and the steel roof can be safe when it is heavy raining. If thers is no rain gutter,

the rain may collect much on the roof, and the rain will be press the roof heavily, and the steel roof will be broken easily.

So it is very necessary to produce the rain gutter when build the steel structural house.

Our rain gutter machine is high capacity in making this rain gutter pipe, ad one machine can work for may years while

producing high quality final rain gutter products.

There are round type of the rain gutter and square stype of the rain gutter.

chuva rolo sarjeta formando máquina

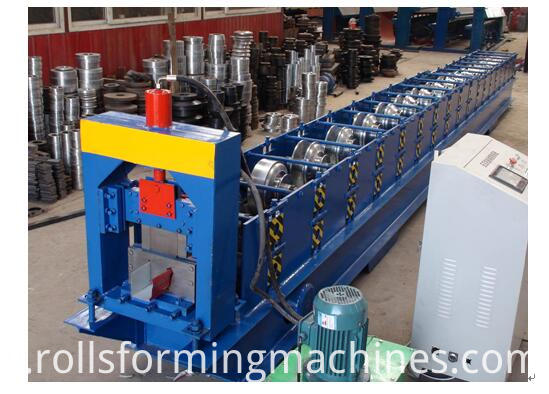

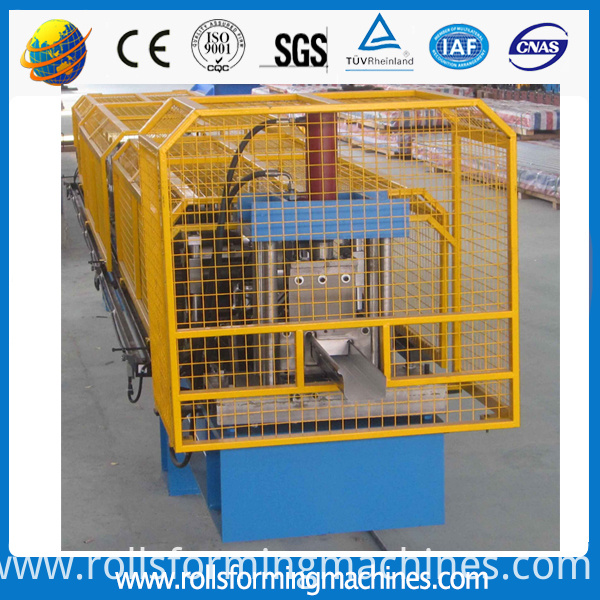

The detals of the rain gutter roll forming machine

Technical parameters of roll forming machine:

1. Technique parameters of the processing line

Main parameters of gutter roll forming machine

1

Suitable to process

Colored steel sheet,Aluminum plating steel sheet, galvanized steel sheet,Alu-zinc steel sheet

3

Roller station

19 rows

4

Thickness of feeding material

0.7mm

5

Productivity

8-12m/min

6

Rollers' material

45# steel

7

Diameter of shaft

65 mm

8

Weight

About 3.8T

10

Voltage

380V 50HZ 3phases

12

Main forming machine body

350 mm H steel

13

Motor power

5.5 kw

2. Processing technique and deployment

Processes: Manual Decoiler - Roll forming machine - PLC system - Hydraulic system -Post cut - Run out Table

3. Components of line:

NO

Name

Unit

Qty

1

3T manual decoiler

set

1

2

Main machine for roll forming

set

1

3

PLC Control system

set

1

4

Hydraulic system

set

1

5

Mould Cutting

set

1

6

Run-out table

set

1

5.Spare parts for free

NO

Name

Unit

Qty

1

Button

4

4

2

Counter

1

1

3

Nylon wheel

2

2

4

protective tube

2

2

5

Limit Switch

2

2

6

Pump pipe

2

2

Loading capacity

Uncoiling width

Inner diameter

5 T

800 mm

450-550 mm



chuva rolo sarjeta formando máquina
