Good Quality for Corrugated Roof Roll Forming Machine Corrugated Sheet Roll Forming Machine Roof Panel Machine supply to Brazil Manufacturers

Share to:
    Unit Price: USD 21500 - 6500 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union,OA
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

Our company since its inception, constantly regards product or service high quality as business life, continually improve creation technology, make improvements to product high-quality and consistently strengthen business total high-quality management, in strict accordance together with the national standard ISO 9001:2000 for Corrugated Cold Panel Roll Forming Machine,Corrugated Color Roof Sheet Roll Forming Machines,Corrugated Metal Color Sheet Roll Forming Machine. Together with our customers and achieve win-win! Welcome to inquiry and consult!

Good Quality for Corrugated Roof Roll Forming Machine Corrugated Sheet Roll Forming Machine Roof Panel Machine supply to Brazil Manufacturers

Corrugated Sheet Roll Forming Machine

Roof Panel Machine

Machine Description Corrugated Sheet Roll Forming Machine Roof Panel Machine

Corrugated Sheet Roll Forming Machine Roof Panel Machine

To carer for customer's differrent request, we can customize our Corrugated Sheet Roll Forming Machine Roof Panel Machine as to clients' drawings or requirement.If you want the price, pls help us to confirm the machine types and engineering drawings at first.This types of machine is widely use in producting of metal roof panle making machine for its practicability and reasonable price.Additionally the roof panel made by it is very popular in the market.

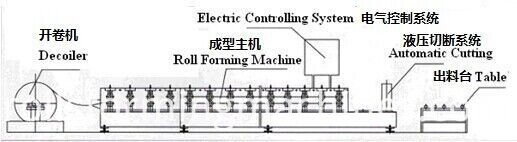

Production Process of Corrugated Sheet Roll Forming Machine Roof Panel Machine

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

corrugated steel sheet roll forming machine


More pictures about our Corrugated Sheet Roll Forming Machine Roof Panel Machine

Corrugated board roll forming machine (25)

Parameters of Corrugated Sheet Roll Forming Machine Roof Panel Machine

Material Type:GI/PPGI/AL

Material Width:1000/1200/1220/1250mm(customized)

Material Thickness:0.3---1mm

sheet length:any length

Length Tolerance:±2mm/6m

Working Speed:8m/min(standard machine)

Control System:Mitsubishi/Siemens PLC& transduce(customized)

Total Power:About8.5 KW

Total Weight:About 10T(up to final design)

Loading-capacity:5 T

Uncoiling-width:1000/1200/1250 mm

Inner-diameter: 450-550 mm

Frame : 350 H steel

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Length of the main part:8650*1650*1500 mm

Voltage:380 V/50 HZ 3 Phase

Roller fixer : middle plate

Material of shafts: 45#steel

Diameter of shafts: 80 mm

Number of rollers : 18 rollers










Delivery date

25 working days

Payment Method

30% T/T in advance and balance 70% after inspection confirmation before shipment.

Warranty

1. One year, and we will provide the technical support for the whole life.

2. Need one technician

3. Training time: one week (contains the time of installation and adjustment)


"With our superb management, potent technical capability and strict quality command procedure, we go on to provide our shoppers with trustworthy high-quality, reasonable costs and outstanding services. We goal at becoming considered one of your most trustworthy partners and earning your pleasure for Corrugated Sheet Roll Forming Machine Roof Panel Machine. The product will supply to all over the world, such as: Kiribati,Cote D'Ivoire,Netherlands Antilles. We will initiate the second phase of our development strategy. Our company regards "reasonable prices efficient production time and good after-sales service" as our tenet. If you are interested in any of our products or would like to discuss a custom order remember to feel free to contact us. We have been looking forward to forming successful business relationships with new clients around the world in the near future.
