Good Quality for Closed Floor Decking Forming Machine Steel Machinery Floor Decking Roll Forming Machine supply to Cambodia Manufacturers

Share to:
    Unit Price: USD 29000 - 39000 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union,OA
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

We enjoy an extremely good status among our prospects for Floor Deck Machine,Steel Floor Deck Machines,Cold Roll Machine. We believe in quality and customer satisfaction achieved by a team of highly dedicated individuals. The team of our company with the use of cutting-edge technologies delivers impeccable quality products supremely adored and appreciated by our customers worldwide.

Good Quality for Closed Floor Decking Forming Machine Steel Machinery Floor Decking Roll Forming Machine supply to Cambodia Manufacturers

Steel Machinery Floor Decking


Roll Forming Machine

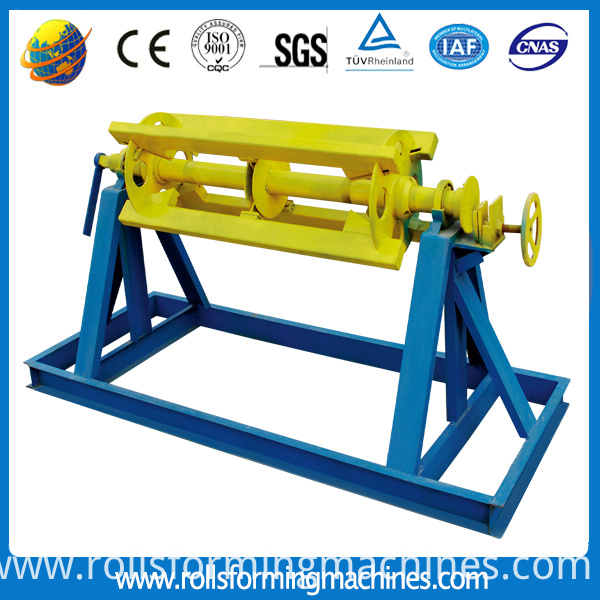

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity: 5T

Uncoiling width: 1250mm

Inner diameter: 450-550mm

Decoiler

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
Floor deck roll forming machine

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.
main machine

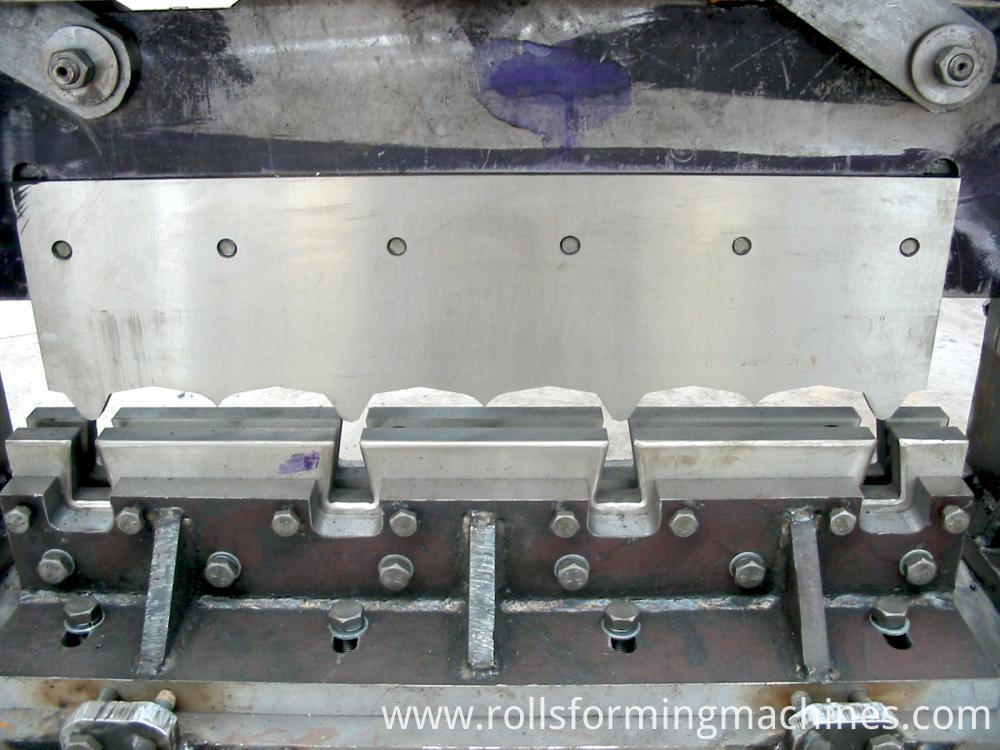

Cutting device

Advanced hydraulic drive with track cutting, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

Blade Material: Cr12 steel with quenched treated 60-62°C; Cutting system: Full automatic

cutting


Main parameter of Floor Deck Roll Forming Machine

1. Length of the main part: 14200*1300*1400mm

2. Weight of main part: About 14 t

3. Voltage: 380V/50HZ3Phase (as customer`s request)

4. Roller fixer: Guide column

5. Frame: Middle plate welded (Memorial arch frame type)

6. feeding width: 1000mm

7. Drive mode: chain

8. Material of rollers: 5# steel with tempering

9. Material of shafts: 45# steel with tempering

10. cutting: hydralic cutting

11. Number of rollers: 30 rollers

14. Main power: 15kw (Cycloidal planetary gear speed reducer)

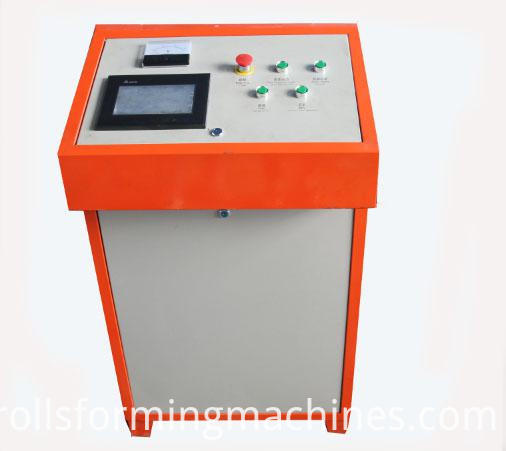

Controlling device

Screen: Text screen displayer

PLC: Taida DVP14ES from Taiwan

Coder: Omron

plc control system

Hydraulic

Orgin: Advanced hydraulic system from Taiwan

Power: 3kw

hydralic station


Components of Floor Deck Roll Forming Machine:

Machine Description: Floor Deck Roll Forming Machine

Quantity: 1 SET

Delivery time: 45 working days after receiving deposit

Container Type: One 40GP

Price/ USD (FOB TIANJIN): 19500-29500

Product name: floor deck roll former

Floor Deck Roll Forming MachineProcess Flow:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Double Layer Machine For Color Steel Profile


Our Services

1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling
