Wire Steel Sheet Simple Slitting Machine 5 Tons Manual Decoiler
Raw Material:
All of our machine profile is customized, above raw material is only for your reference.
1. Coil width: 1200mm
2. Thickness: 0.8-1.5mm
Layout:

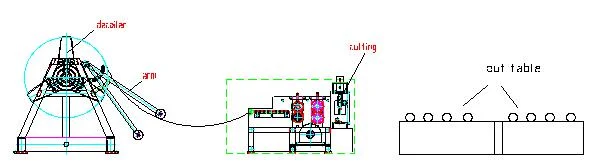

Manual de-coiler—Feeding—Cutting—Out table
Specifications:
| Item NO | Description |
Offered specification |
| 1 | Roll Forming Machine | Cut to Length Machine |
| 2 | Coil width | 1200mm |
| 3 | Rolling Speed | 12-15m/min(not include cutting time) |
| 4 | Rolling Thickness | 0.8-1.5mm GI |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 5T manual de-coiler |
| 7 | Roller Stations | 2 stations for feeding |
| 8 | Roller Material | Rubber roller |
| 9 | Shaft Material and DIA | ￠85mm, material is 45# forge steel |
| 10 | Slitting | Maximum in 6 strips |
| 11 | Blades of slitting | 5 sets of slitting |
| 12 | Post cutting | Hydraulic cutting slitting |
| 13 | Main Motor Power | 7.5kw |
| 14 | Hydraulic Station Power | 5.5kw |
| 15 | Hydraulic Pressure | 12-16Mpa adjustable |
| 16 | Material Of Cutting | Cr12Mov quenching 58-62℃ |
| 17 | Structure Of The Stations | Wall panel |
| 18 | Tolerance | 3m+-1.5mm |
| 19 | Electric Source | 380V, 50HZ,3 phase According to customer’s require |
| 20 | Way Of Drive | By chain |
| 21 | Color Of The Machine | Yellow and blue |
| 22 | Size of the machine | L*W*H about 2.0m*1.7m*1.2m |
| 23 | Container Need | 1x20 feet |
Main Features
1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. It is very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.
