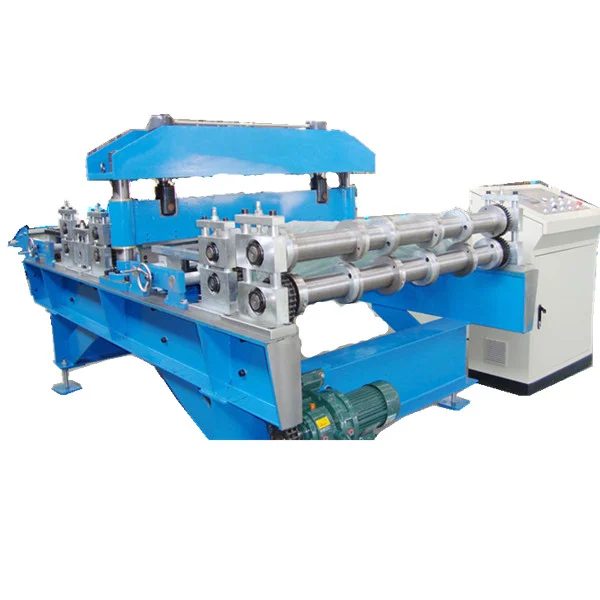

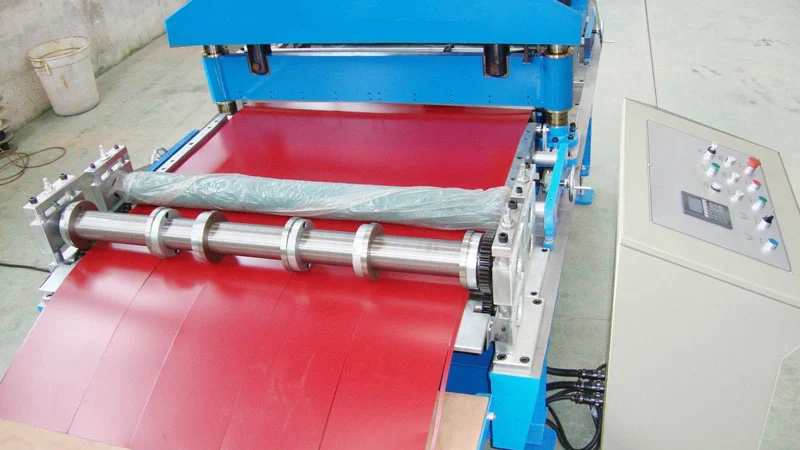

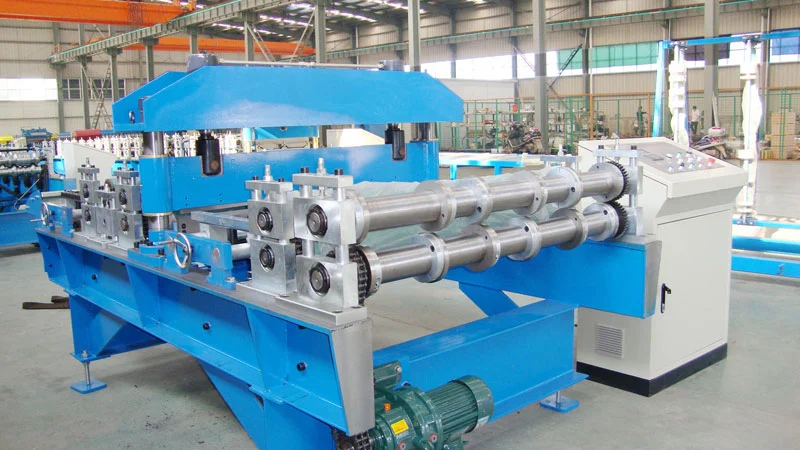

Simple Cut to Length and Slitting Machine
Brief Introduction of Simple Cut to Length and Slitting Machine
This machine is the accessorial equipment for roll forming machine or folding machine,which is used to slit the coil sheet to strips and transfer it to support it. In order to get some nonstandard width length sheets.It has many advantages such as low noise, stable running, simple operation,and nice appearance etc.

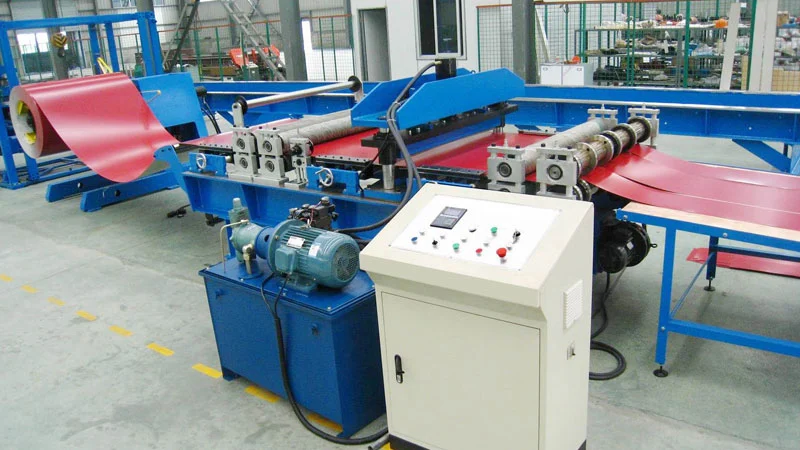

Working Flow of Simple Cut to Length and Slitting Machine
Coil Charging Car (optional)→Decoiler (passive/auto)→Filming Covering (optional)→Output supporter→Slitter→Cutting to length
Parameters of Simple Cut to Length and Slitting Machine
| Suitable coil width | 1000-1250mm |
| Material strength | 230-300Mpa |
| sheet coil | Max. weight: 5T |
| Decoiler suitable coil I.D. | Inner diameter: φ508 or 610 |
| slitter | 8 pairs |
| slitted strip width | Min 60mm (adjustable.) |
| Suitable coil thickness | 0.4~1.2mm |
| Length tolerance | +/- 2mm in 3M in length |
| Slitting speed | 10 M/min |
| Motor power | slitter power: 3 KW |
| Hydraulic motor power: 3 KW | |
| Cutting | cut to length automatically |
| Power source | 380V/3phase/50/60 Hz (can meet your demand) |
| Certificates | Certified with Multi-Patents; CE Certified , EUROPEAN quality standard |
| Machine Condition | New, A Grade quality |
| Operator | 1 person |
| Decoiler Capacity | 3t, 5t, 8t, 10t, 15t |
| Power Voltage | 220V/380V/415V/460V |
| Products Usage | This machine is the accessorial equipment for roll forming machine or folding machine, which is used to slit coil sheet to strips, and transfer it to support it. |
| Equipment Color | According to customer's requirements; normally Blue/White |
