Snaplock standing seam cladding machine snap lock roofing panel roll forming machine

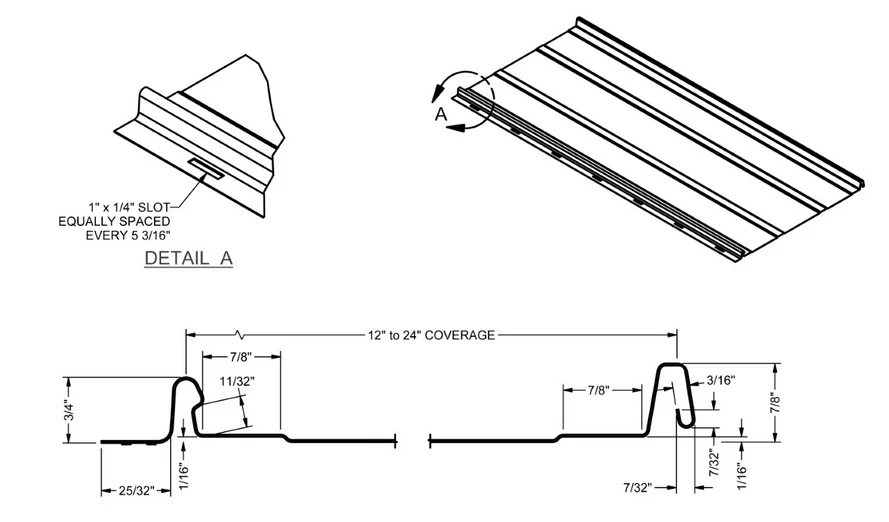

Panel seam: 1 3/4” high
Panel material: 28 ga. to 22 ga. steel (painted, Galvalume, coated galvanized), .027″ to .040″ aluminum (painted), and 16 oz. to 20 oz. 3/4 hard copper

Snaplock standing seam cladding machine Ideally which can produce cladding with the following features: - cladding at 25 and 38mm seam height. - with fixing holes, pre-punched. - at an adjustable width. - with a measuring and cutting system.

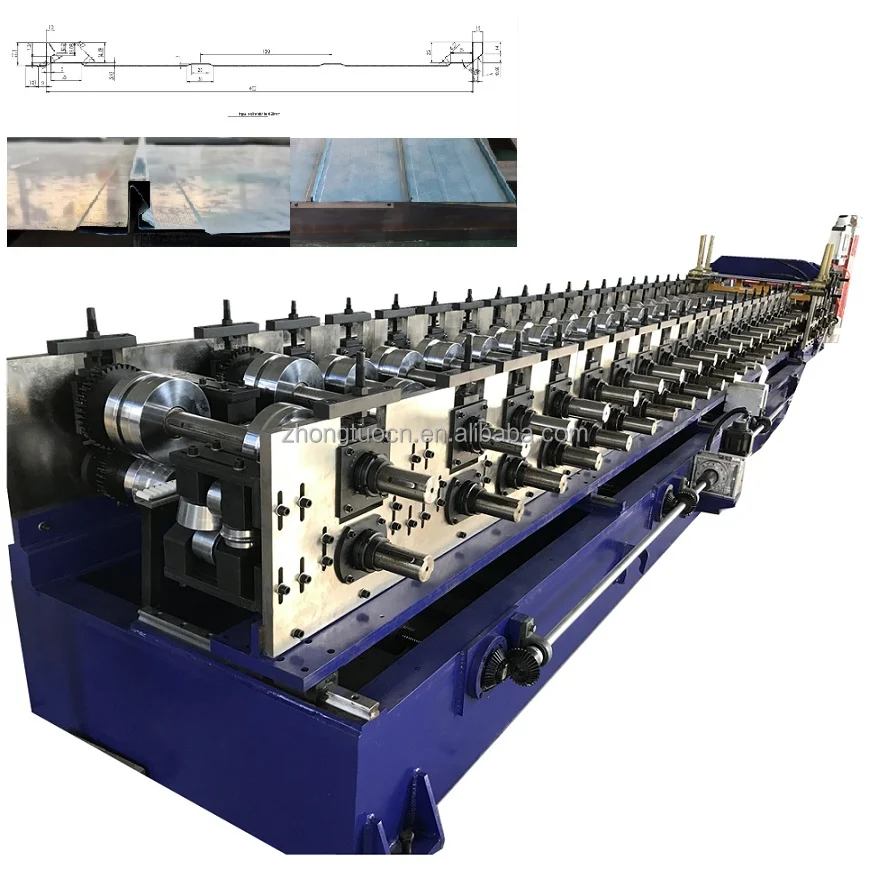

Snap lock roofing panel roll forming machine is designed and manufactured by cangzhou zhongtuo company as one of the flagman equipment for metal roofing panels production. Following machine makes standing seam roofing panels with self-closing lock on sides (snap lock).

The main advantage of such lock system is the easy way of installation: to connect two panels with each other you just need to cover bottom part with top part and press it with some force, you will hear specific click noise at this very moment. That is why name of system is self-closing lock one. Comparing to standard standing seam roofing panels with mechanical lock which you need to close with special tools or equipment, snap lock panels are much easier to install and don’t require additional expensive devices for work.
