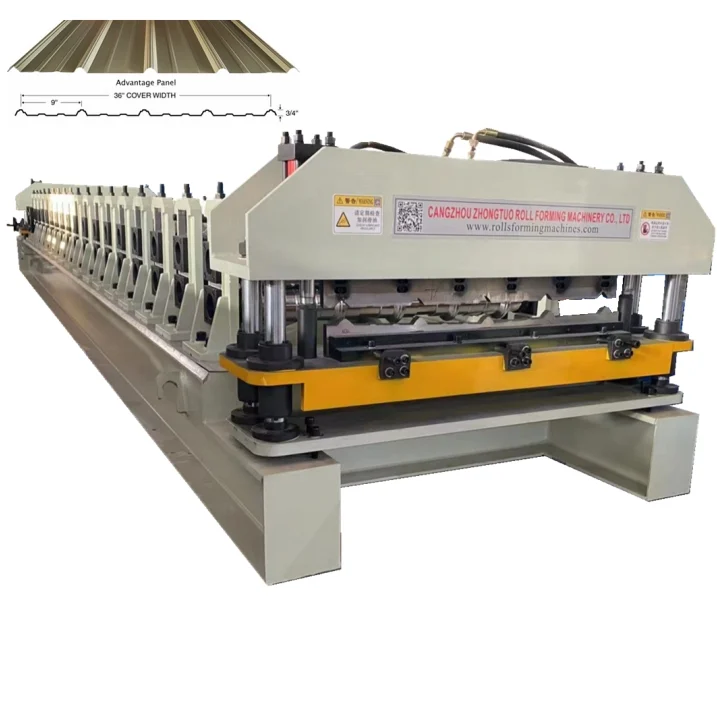

AG Panel Roll Forming Machine is a whole automatic line for AG Panel Metal Roof for USA Market. Cangzhou zhongtuo roll forming machine company can also R panel, U panel, B deck, Corrugated panel and other kinds of roll formers.

What’s AG Panel

AG Panel Metal Roof, a low depth profile, economical panel solution for residential, commercial and agricultural roofing or post frame buildings.
AG panels are a very durable, high-value metal roofing system. Manufactured from 0.3-0.8mm thickness material.
Tuff-Rib Panel is a light gauge through fastener roof tile and wall panel that is a great choice for commercial, industrial and agricultural.

1. Fastener Design
2. Standard and custom trim available
3. Excellent for roof and siding
4. Excellent for portable building.

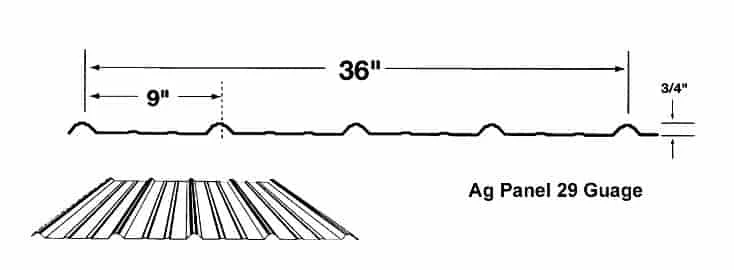

Profile drawings of AG Panel

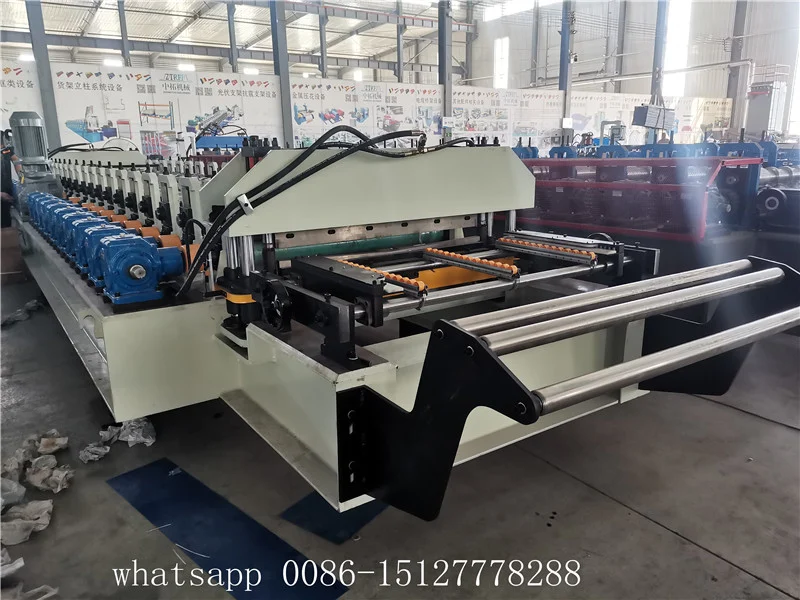

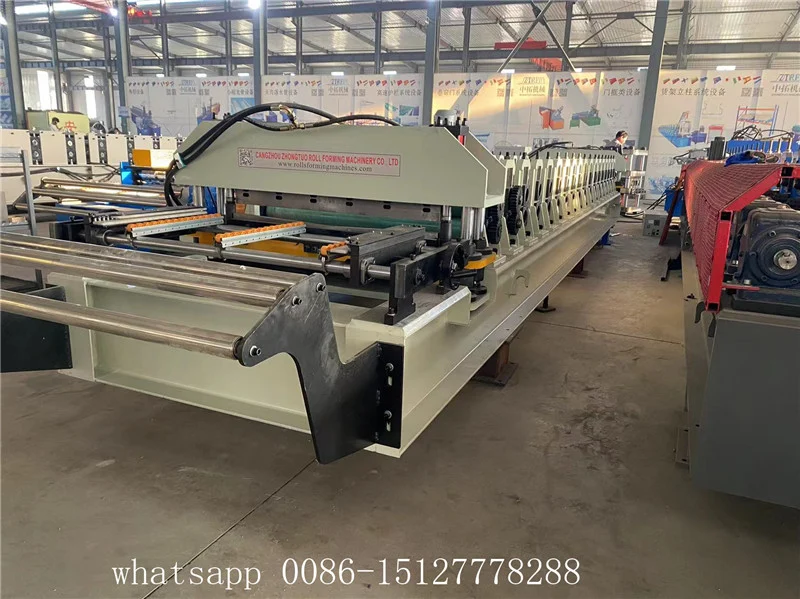

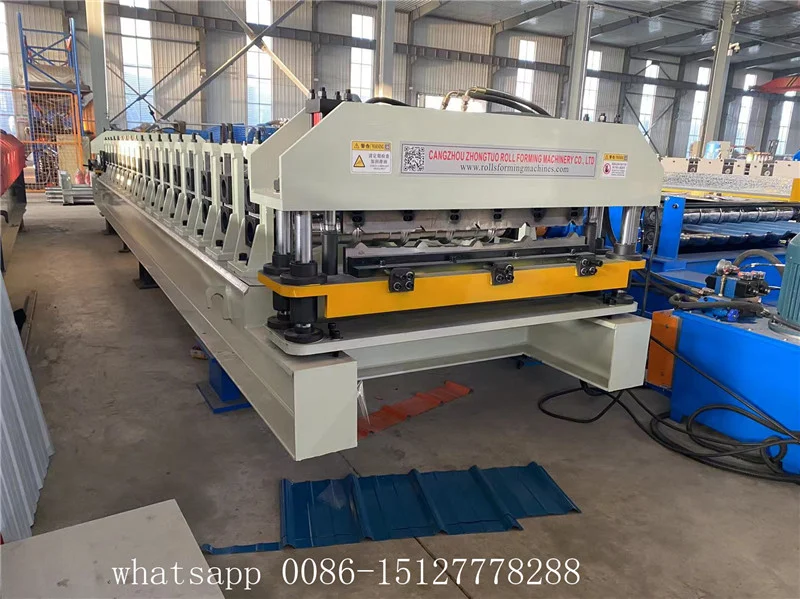

AG Panel Machine Components

AG Panel Metal Roofing Roll Forming Machine is consisit of:

1. 5 Ton Uncoiler: Manual or Automatic
2. Feeding and Guiding Device
3. Pre-shearing device is an option( Manual, electric or hydraulic)
4. Roll Forming Machine(We are offering different design of roll forming stands)
5. Cutting Device( Hydraulic or Electric)
6. Controlled Panel (with remote controller)
7. Hydraulic Station (with cooling fan to lower the oil temperature )
8. Collection Table or Auto stacker. (You can choose the length you need)

Technical Parameters

1. Work Flowing: Uncoiling- Feeding and Guiding- Roll Forming- Cutting- Collecting– Packaging
2. Uncoiler Capacity: 5 Ton
3. Coil Thickness: 0.3-0.8 mm
4. Coil Material: PPGI, GI, Alzn, SS, Alu.
5. Roller Material: 40 CR, HRD and Chromed
6. Forming Stands: 18
7. Shaft Material: 42 CR, 80 mm diameter
8. Motor Power: 7.5kW
9. Hydraulic Cutting Power: 5.5 KW
10. Transmission: Chain or Gear box
11. PLC Brand: Siemens or Delta
12. Encoder: Omron
13. AG Panel Machine Speed: 15-20 m/min
