AG panel Machine Metal Roof Roll Former R and AG Panel Machines galvalume ag panel machine for sale
AG Panel is an exposed fastener roofing system consisting of panels that are 3/4” deep, it measures 9” from each high corrugation, and provides 36” of coverage. Known for its economical through-fastened design, AG Panels, also known as U-Panels, or utility panels, are preferred for agricultural, light commercial, industrial roofing or wall applications, is very popular metal wall and roof panels on American market.
While there may be some minor differences in specifications and details, the drawings below represent the most popular Ag Panel profile in use today. The distinguishing feature of this popular Ag Panel are ¾” tall major ribs that are spaced 9” on-center. Anyway, all machines are custom sized, client can show us the sizes of their AG panel, then Cangzhou zhongtuo roll forming machine company can produce the machine according to buyers' drawing.(Panel Machine For Sale)
The specifications of the R and AG Panel roll forming machine
1.Profile drawing for reference (we can design as customer's profile drawing):
2.Components of the R and AG Panel roll forming machine
| Item | Name | Remark |
| 1 | Manual decoiler | 5 tons/7 tons |
| 2 | Main roll forming machine | Famous brand motor |
| 3 | Control system | Delta / Siemens brand |
| 4 | Hydraulic system | Chinese famous brand |
| 5 | Receive table | 3 meters |

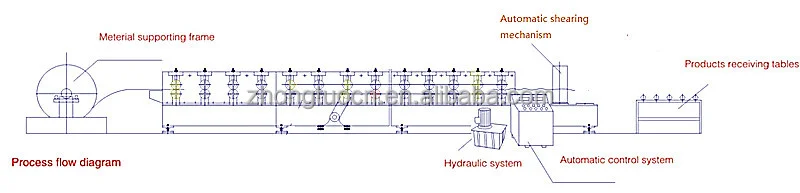

3.Process flow of the R and AG Panel roll former

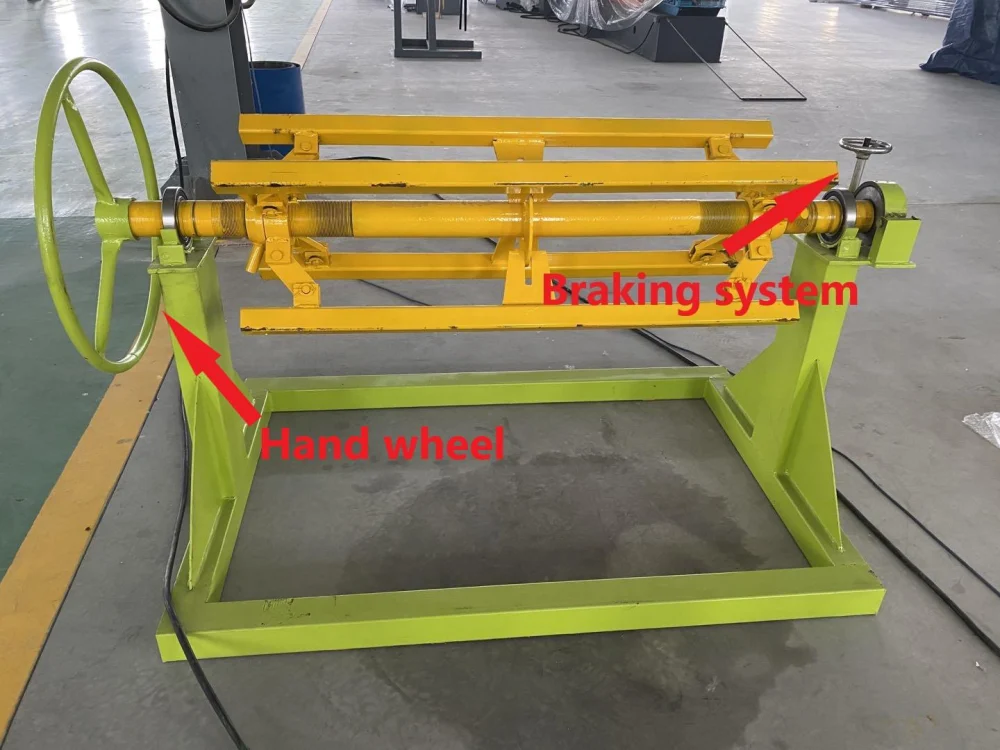

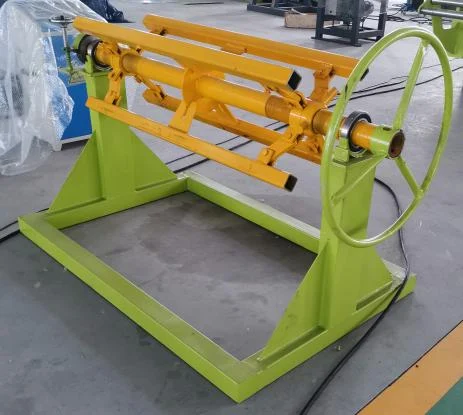

4.Manual decoiler (Hydraulic decoiler is also available)
| Item | Name | Description |
| 1 | Capacity | 5 tons /7 tons |
| 2 | Coil diameter | 450-550mm |
| 3 | Coil outer diameter: | 1500mm |
| 4 | Coil width | 1220mm(as customers' profile drawing) |

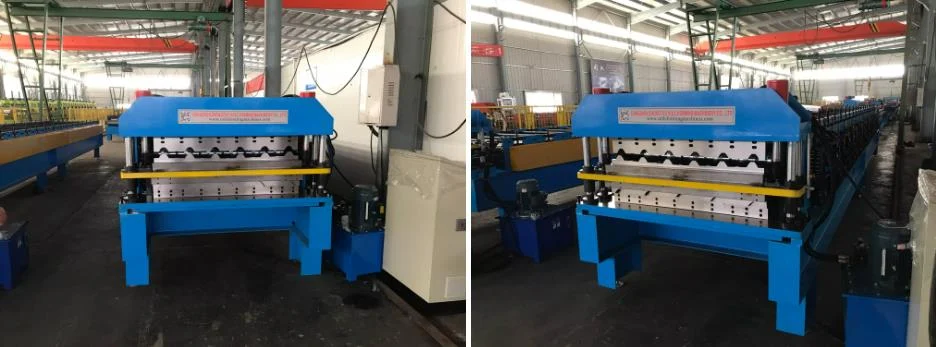

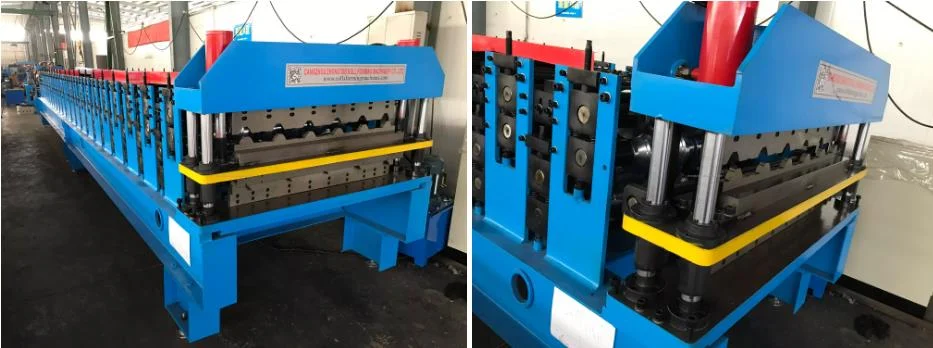

5.Main roll forming machine

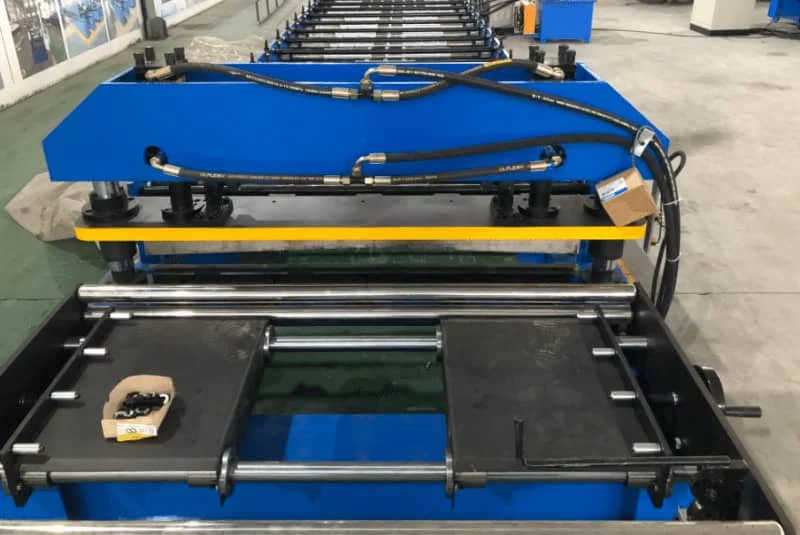

| Item | Name | Description |
| 1 | Feeding device | With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers. |
| 2 | Machine body | 350H steel welded |
| 3 | Machine frame | Iron cast molding frame |
| 4 | Roller station | 18 stations stations |
| 5 | Roller material | 45# steel with quenched treatment and hard chroming |
| 6 | Shaft diameter | 80mm,solid |
| 7 | Shaft material | 45# steel with tempering treatment |
| 8 | Motor power | 5.5 kw |
| 9 | Speed | 0-20m/min |
| 10 | Transmission | By double chains |
| 11 | Voltage | 220V,50HZ,3PH |
Panel Machine For Sale
6.Cutting system:Two cutters,pre-cutter and post cutter
| Item | Name | Description |
| 1 | Blade material | Cr12,with quenched treatment |
| 2 | Motor power | 4 kw |
| 3 | Cutting tolerance | +/-1 mm |
| 4 | Cooling system | With fan cooling |
| 5 | Cutting type | Hydraulic cutting |
| 6 | Feature | Low noise and high performance |

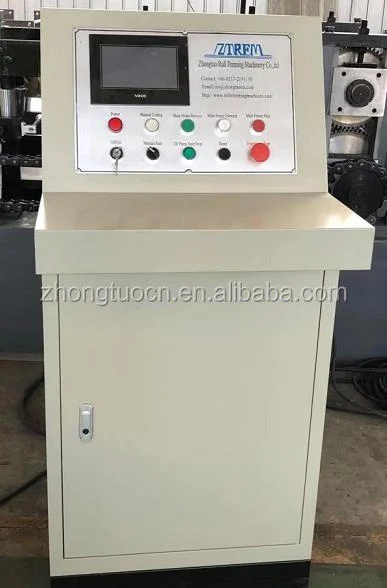

7.Control system
| Item | Name | Description |
| 1 | Control system | PLC |
| 2 | PLC brand | Delta from Taiwan |
| 3 | Frequency converter brand | Delta from Taiwan |
| 4 | 5 Encoder | Omron |
| 5 | Function | Automatic control the length,quantity and batch |

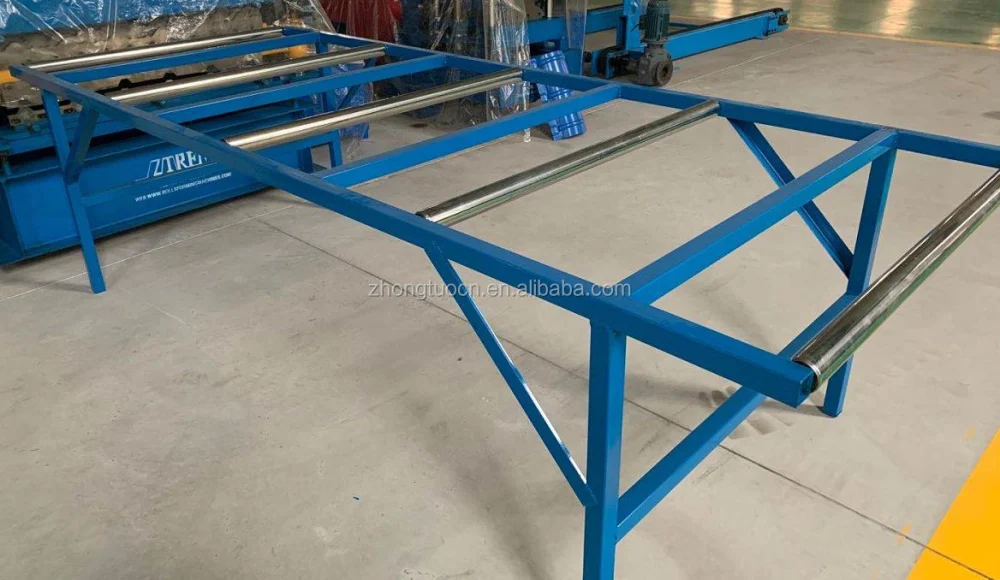

8.Product run out table
| Item | Name | Description |
| 1 | Type | Manul (Auto stacker is also available) |
| 2 | Length | 3 meters |
Roof Panel Roll Forming Machine
Roof Panel Roll Forming Machine
Roof Panel Roll Forming Machine
We also have other machines for your reference, any request, welcome inquiry.(Panel Machine For Sale)
