Drum Horizontal Wave Roof Sheet Machine
Drum Horizontal Wave Roof Sheet Machine
Drum barrel corrugated sheet rolling machine is developed based on the needs that thin sheet cannot be made to roof sheet by traditional roll forming machine. It can process material thickness from 0.13 to 0.35 mm and the roofing sheet length could be cus
Detailed Content

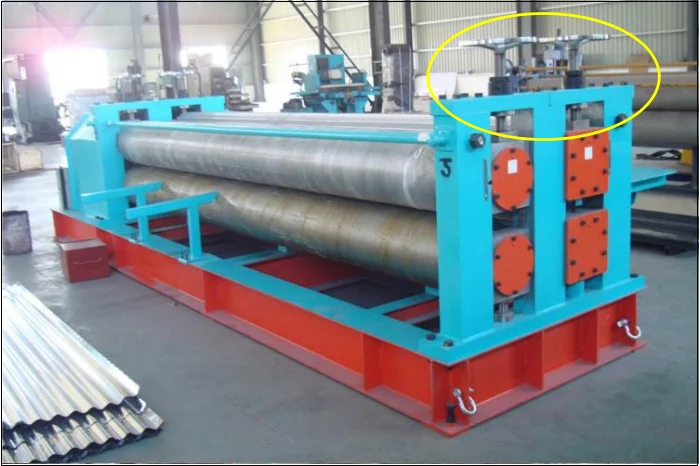

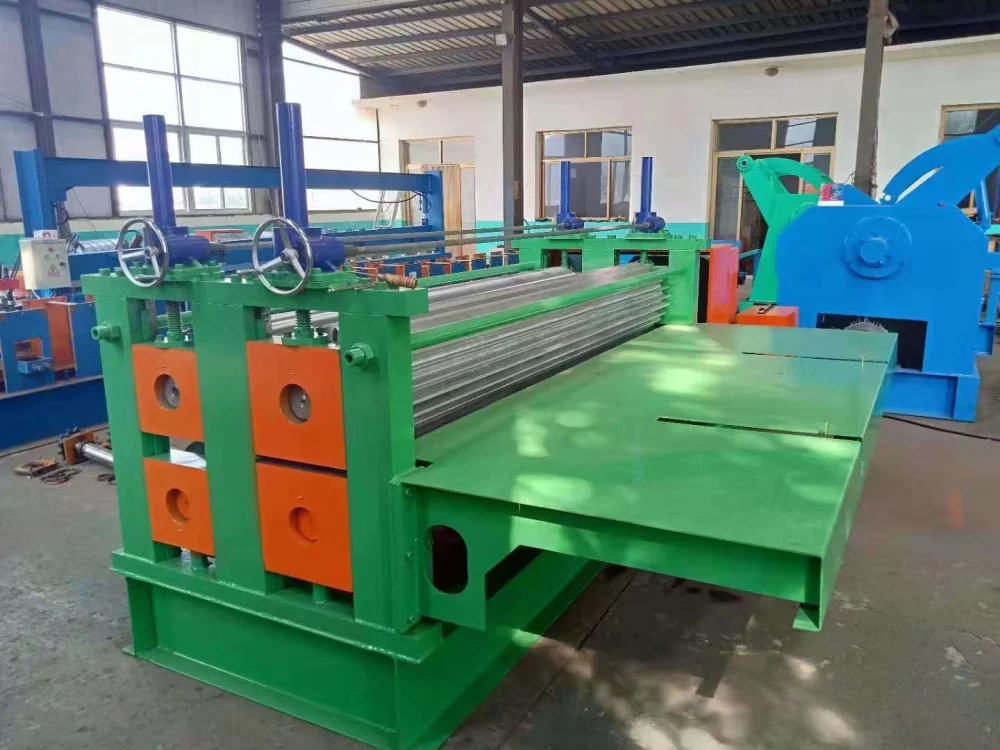

Description of Drum Horizontal Wave Roof Sheet Machine
Drum barrel corrugated sheet rolling machine is developed based on the needs that thin sheet cannot be made to roof sheet by traditional roll forming machine. It can process material thickness from 0.13 to 0.35 mm and the roofing sheet length could be customized according to customer’s personal requirement. But limited by roll forming method, this machine needs to feed sheet and receive sheet by manual.
Parameter of Drum Horizontal Wave Roof Sheet Machine
1. Width： ≤1250 mm
2. Length：3 meters
3. Thickness：0.13-0.5 mm
4. Speed： 10-15 p/min
5. Shaft diameter： 450 mm
6. Power： 7.5 KW
7. The movable range of the feeding platform：750-1200 mm
8. Control method: electric control box, forward and reverse rotation, speed regulation
Advantages of Drum Horizontal Wave Roof Sheet Machine

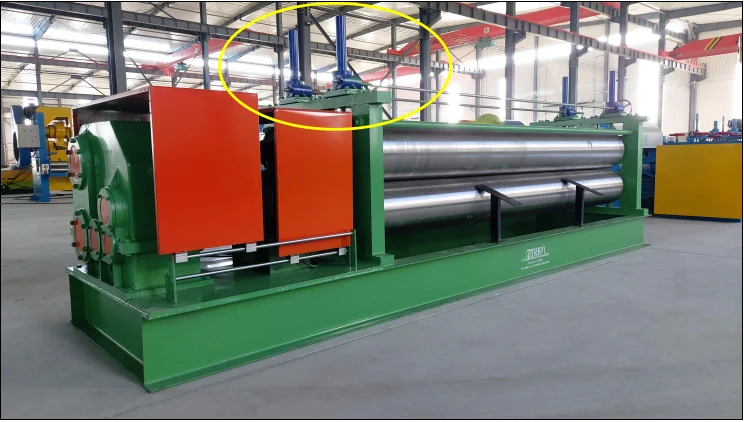

1. Adopting turbocharger adjustment method, only need to adjust one side, so when adjusting, single side adjustment then okay. When adjusting thickness, simple adjusting this one part then okay, with servo motor, it can adjust two parts: (Other company Handwheel adjustment, need to adjust both sides, slow efficiency, inaccurate)

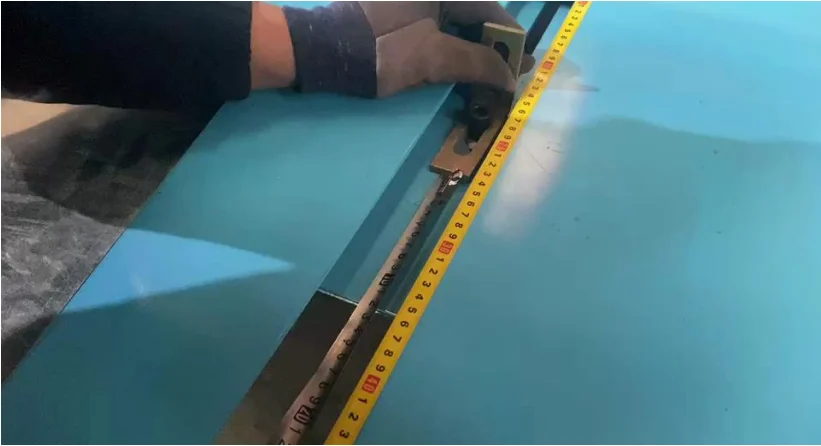

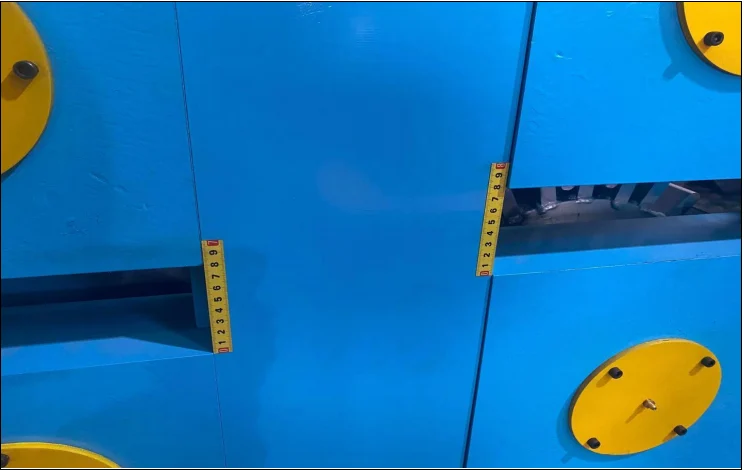

2. There are rulers on the feeding platform and roller shaft space to help adjust the accuracy;

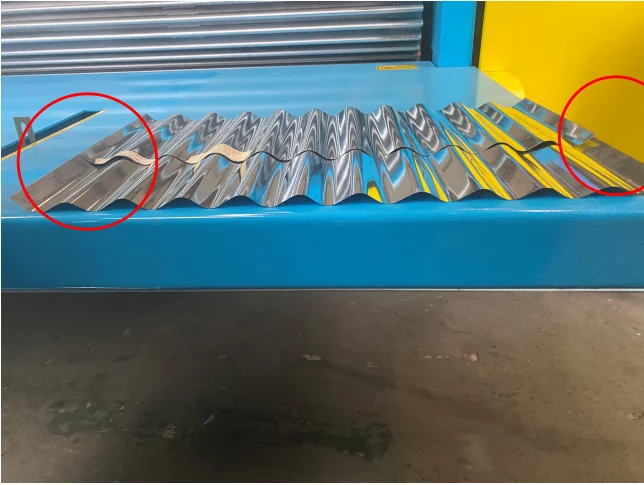

3. The gear shaft has more processing procedures than others, which can solve the problem of small side rebound. The thinnest is pressed to 0.12-0.13 mm, and 2-3 sheets are fed at a time.

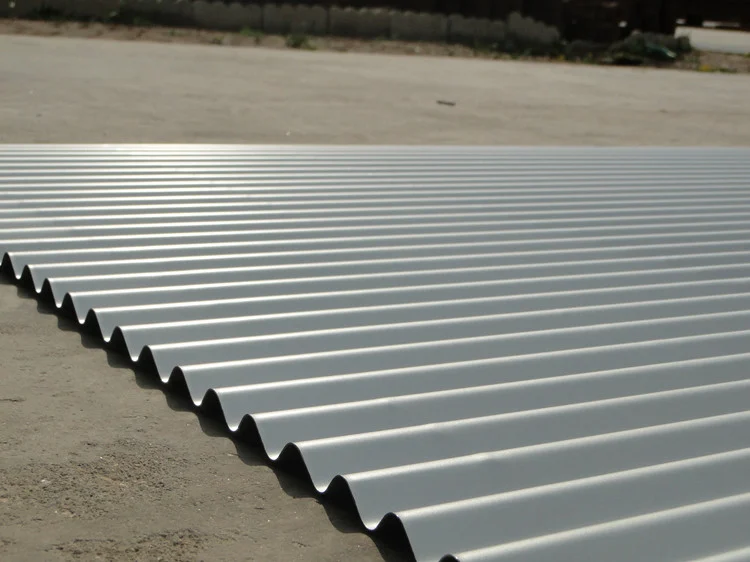

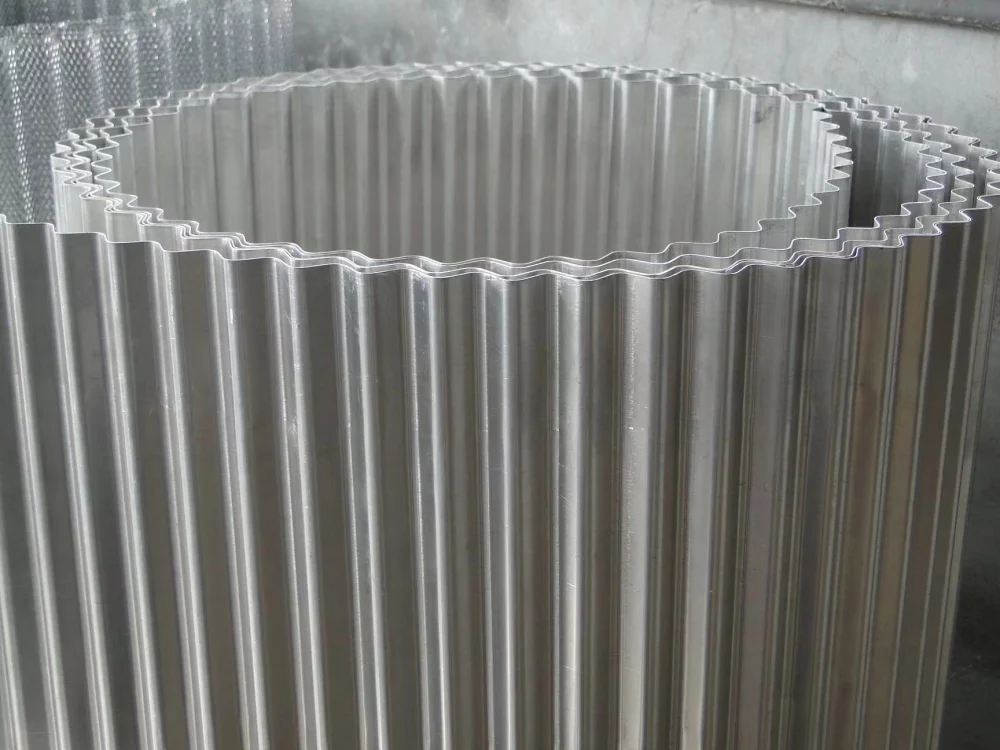

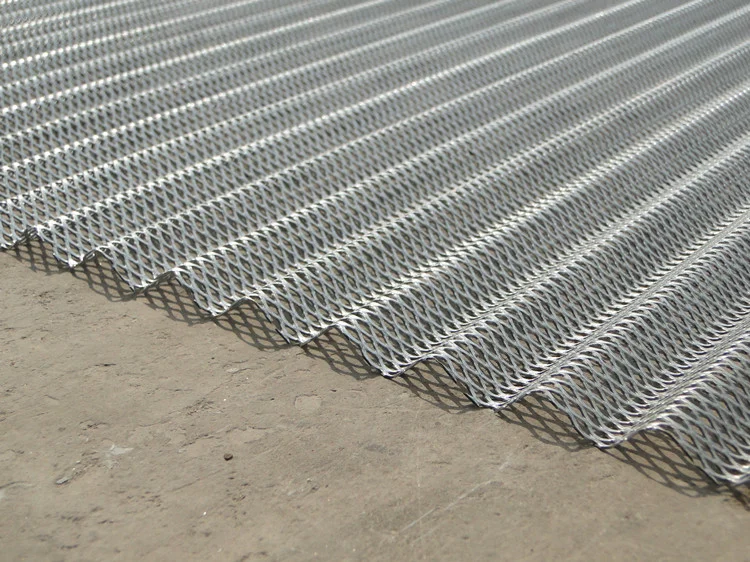

Picture of the Drum Horizontal Wave Roof Sheet Machine's Product

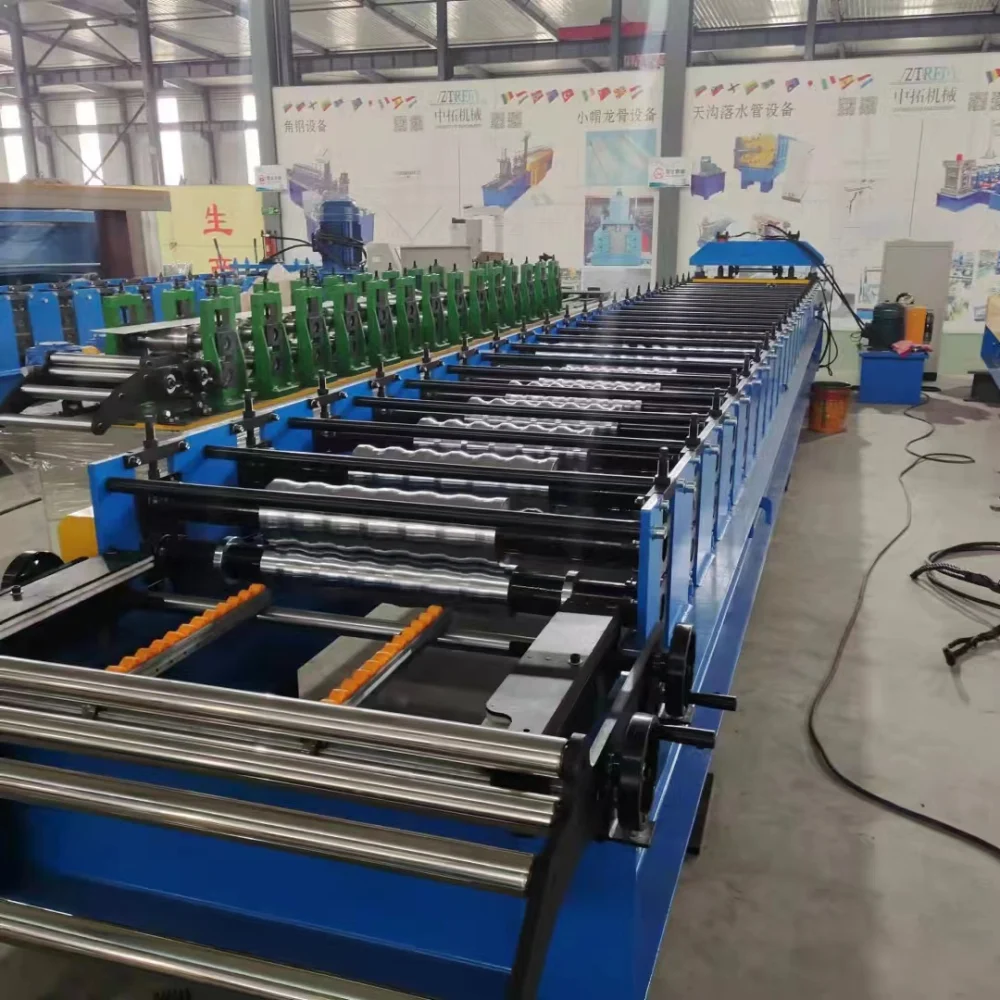

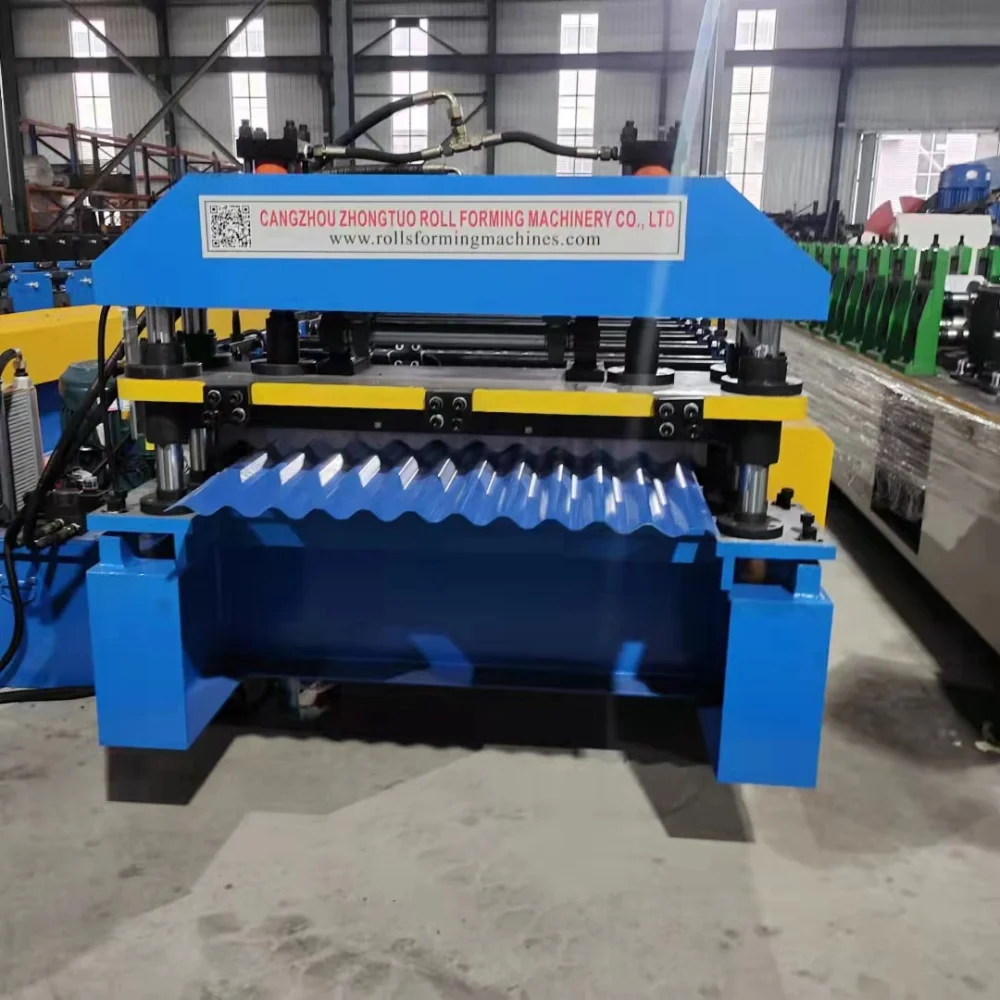

We can provide the corrugated roofing sheet machine as well, here is the picture of this machine.
