Tr4 roof panel rolling forming machine

Tr4 roof panel rolling forming machine is use to produce a kind of popular roof panel that much popular in Peru market.

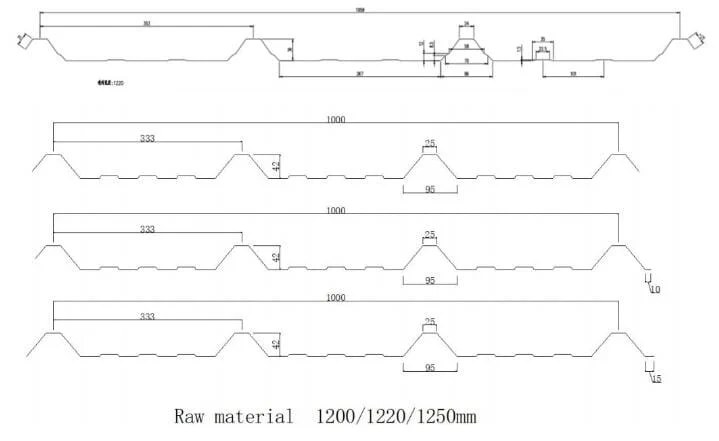

We called this kind of roof sheet Tr4. About Tr4 roof sheet, it have some different profile dimension, in general both of them have four waves, here as below for your reference, different profile drawing may have differnt machine price, you can choose according to your needed.

About the Tr4 roof panel rolling forming machine, we designed it according to your confirmed profile drawing. The machine mainly include five parts, one set 5 Tons manual decoiler, one set main roll forming machine, one set hydraulic oil pump station, one set PLC control system and one set product collect table.

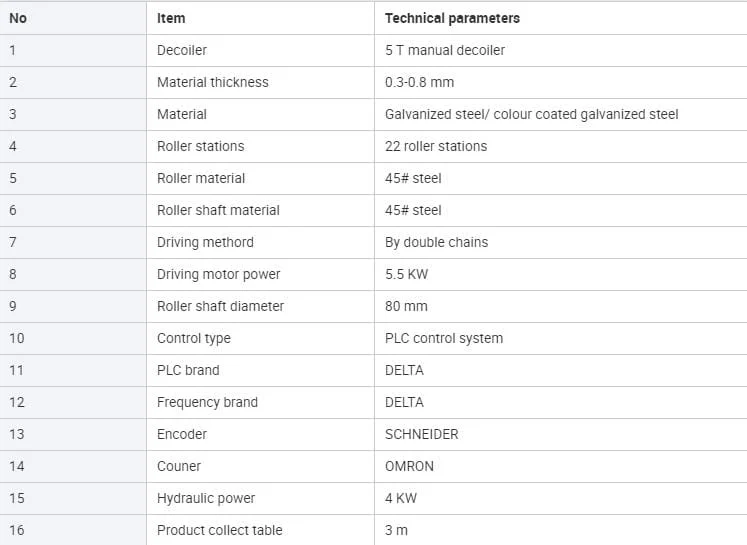

Here are some important technical parameters:

Above all is our machine regular configuration, all electric part brand are famous brand, we want to provide you a high quality machine with long service life and low broken rate. If you have any special requirement, please let me know, I will make a exact machine solution according to your requirement.
