Snap-Lock Standing Seam roofing sheet rolling forming machine
Snap-Lock Standing Seam roofing sheet rolling forming machine
Snap lock standing seam roofing sheet rolling forming machine is designed to produce stand seam roof sheets in batch and in an automatic way.
Detailed Content
Snap lock standing seam is created by “snapping” on side of a metal roofing panel onto another so that they hook together and are fastened to the roof by a nailing flange then hidden by the next sheet, no special tools needed for installation. As the demand of the market, we have developed the Snap-Lock Standing Seam roofing sheet rolling forming machine.
Take the following Snap-Lock Standing Seam roofing sheet drawing profile for examples:
Popular design 1:
Popular design 2:
Snap-Lock Standing Seam roofing sheet rolling forming machine design:
| Product sheet | Raw material | GI&PPGI&G550 | ||
| Material thickness | 0.3-0.8 mm | |||
| Feeding width | 1220mm | |||
| Effective width | 930 mm | |||
| Sheet cutting length | Adjustable | |||
| Main roll former | ||||
| Roll forming machine |
Feeding device |
One set guiding roller | ||
| Steel plate welded platform to carry the sheet and feed into roll forming system | ||||
| Feeding width is adjustable with the handle wheels. | ||||
| Rolling shaft Roller |
Shaft material:45# STEEL | |||
| Shaft diameter: 75 mm | ||||
| Tempering treatment to prevent deformed and improve hardness. | ||||
| 45# steel 45 # сталь | ||||
| Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life | ||||
| Rolling station | 20 rolling stations | |||
| Work speed | 20 m/min | |||
| Machine structure | Steel plate welded structure | |||
| Machine basic frame | 350# H steel welded | |||
| Work power | 7.5 kw | |||
| Rolling spacer | Anti rusty treatment | |||
| Pull rod | Anti rusty treatment | |||
| Transmission | By Chains with cover | |||
| Noted: please fill the lube in case the chains getting dry. | ||||
More details of the Snap-Lock Standing Seam roofing sheet rolling forming machine:

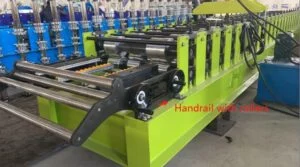

High quality leveling beach with rollers for protecting the surface of the coil.

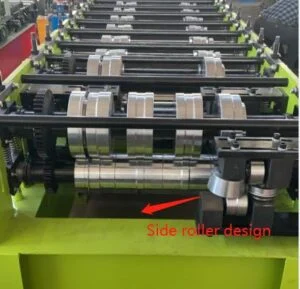

The side roller design:
Snap-Lock Standing Seam roofing sheet Usage in daily life:
Snap-Lock Standing Seam roofing sheet rolling forming machine working videos for your reference:
