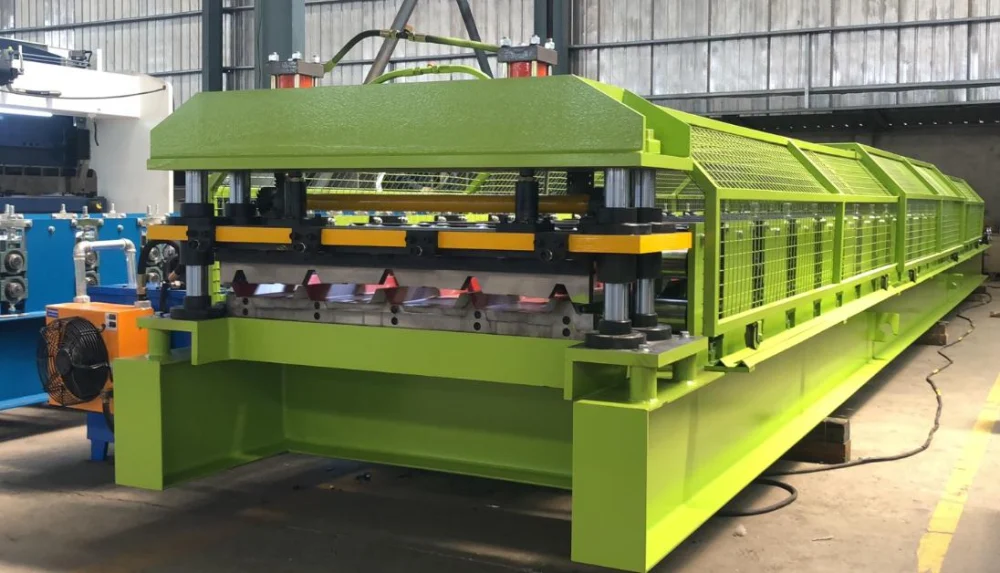

BOX PROFILE ROOFING SHEETS ROLL FORMING MACHINE
Box Profile Roofing Sheets Roll Forming Machine is designed to make the IBR sheets in batch fully automatically and those roofing sheets which are widely used in GBR.
Box Profile Roofing Sheets Roll Forming Machine
Layout of Box Profile Roofing Sheets Roll Forming Machine

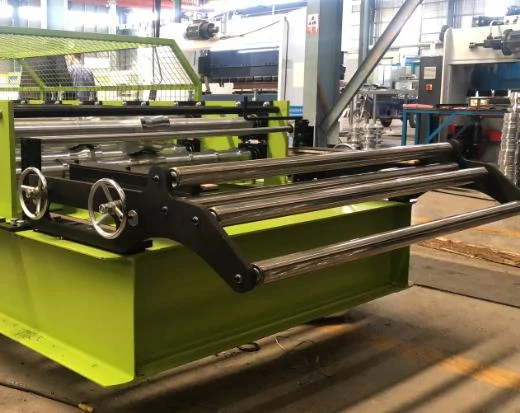

Uncoiling– Feeding and Guiding– Roll Forming– Cutting Off– Collecting.
Main Machine Components and Technical Specifications of Box Profile Roofing Sheets Roll Forming Machine:

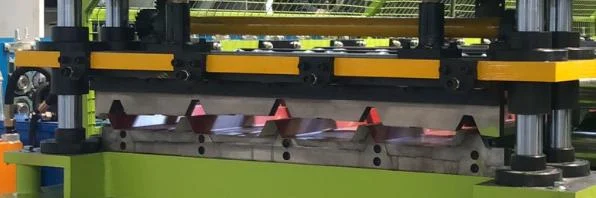

Roll Forming Machine Part:
-
Coil Material: GI, PPGI, SS, HR, CR. 235-550MPA
-
Thickness range: 0.2-0.8mm
-
Line Speed : 15-20m/min
-
Main motor power: 7.5KW
-
Machine Voltage, Frequency, Phase:440 V, 50 Hz, 3Phase
-
Roll station: 20 stations
-
Roller material:ASTM 1045 chrome plated surface with hardness 58-62 degree ,CNC,
-
Shaft diameter: ￠76mm material: ASTM1045 with quenching and tempering
-
Transmission: by chain
-
Machine base frame adopt H beam welding steel
-
Machine chromed pillar as the stands
-
To avoid accidents,all of drive part adopt protect cover
Shearing part of Box Profile Roofing Sheets Roll Forming Machine:
With 4 pillar poles for beautiful appearance and long time to use.
-
Cutting type: hydraulic, connect with the punching hydraulic unit
-
Cutting power by hydraulic, 5.5KWAC motor
-
Hydraulic working pressure: 12-16Mpa
-
Cutting after forming: Cut the sheet before roll forming to required length
-
Cutting motion: The roll forming part is NON-stop when cutting
-
Material of blade:Cr12 with heat treatment
-
Length measuring: Automatic encoder length measuring, brand: Omron
-
Tolerance of length: +/- 1.5mm each piece end product
Controlled Box
-
Programmable setting of profile dimensions: to be provided
-
Programmable cutting unit, various lengths in one programming cycle without quantity restrictions (without stopping the operating equipment)
-
Automatic stopping of the equipment after completion of the cutting program
-
Operating system language: English and Chinese.
-
Voltage, Frequency, Phase: 415 V, 50 Hz, 3Phase
-
Length inaccuracy can be amended easily.
-
Control panel: Button-type switch and touch screen
-
Unit of length: millimeter (switched on the control panel)
-
PLC brand: Panasonic
-
Frequency converter brand: Yaskawa
-
Touch screen: MCGS

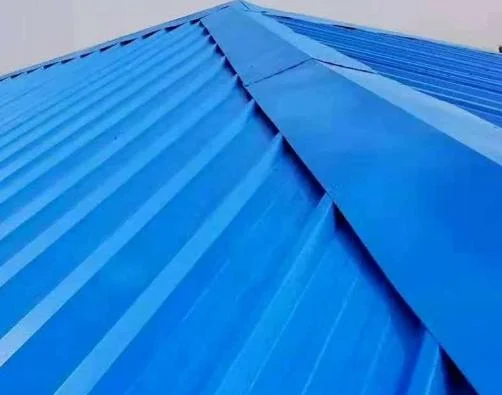

What Box Profile Roofing Sheets

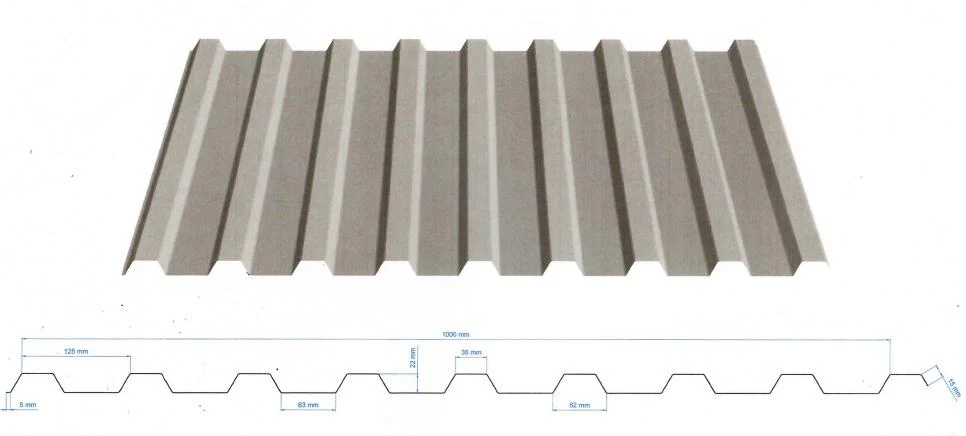

Box Profile Roofing Sheets consist of six profiles and five valleys where the water runs. The profiles are 32mm deep and at 200mm cent res. For extra support and stability, two extra ribs can be roll formed into every valley of the sheet.
Box profile is a modern alternative to corrugated metal sheets, which effective cover width is 1000mm. It also has a capillary groove down one edge which eliminates the need for using sealing strips and is proof.
