TN40 Trapezoidal Roof Panel Roll Forming Machine With PLC Control System
TN40 sheet roll forming machine is a common roof sheet roll forming machine, but the finished products are used mainly in European and Africa market.
Metal sheet roll formers are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here.
Quick Detail:
Thickness : 0.4-0.8mm
Material : G550, pre-painted sheets
Input width : 1250mm
Coil ID: 508mm
Effective width:1000+/-4mm
Material weight: 5Tons cap.
Certificate : CE by TUV
Driven motor: by 7.5Kw or 11kw motor with gear box or higher
Cutter Material: Cr12, heat treatment
Description/Technical Parameter details of complete line:
1.5TX1250mm Hydraulic Un-CoilerHydraulic system to expand coil inner hole, Pump motor: 3KW
Coil Inner-diameter= 510±30mm
Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm
Taper wedge expand type
Driving motor to turn the coil, 3KW,
Delta/Schneider brand inverter
Other design such as snubber arm /support arm/coil car as per request
2.Entry bench & Manual Pre-shearing deviceto cut off the end of the final piece of sheet only
Working thickness: max. 0.8mm
3.Roll forming machine with cutting details as below table :
| Suitable roll forming material | Color steel sheet or galvanized steel sheet, G550 |
| Thickness | 0.4-0.8mm |
| Coil feed in width | 1219mm |
| Carriage Frame design | Wall-plate-frame-design or stand frame desig |
| Roll forming stages | 24 stages |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75/95mm |
| Main motor power | 7.5Kw with reducer |
| Line speed of roll former | 15m/min or higher |
| Hydraulic group power | 4.0 Kw |
| Cutting material | Cr12, hear treatment |
| Electric Voltage Standard | 415V/50Hz/3PH or as request |
| Major Painting Color | Customized and RAL5015 as standard |
1.PLC Control SystemCut to length control
Cut-to-length tolerance≤±1mm
Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder
Schneider brand low voltage electric elements
2.Product Rack 3 units, no power rack
Normally, the full mesh around un-coiler and the roll forming machine and cutting device is required as the CE request, the interlock and safe relay is also included.

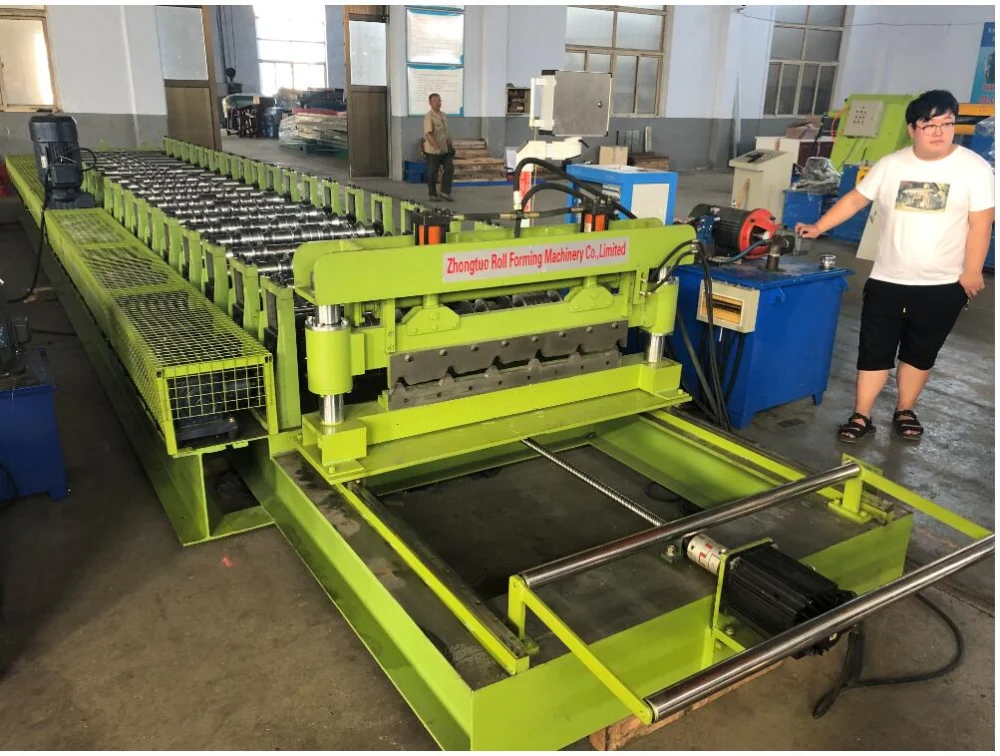

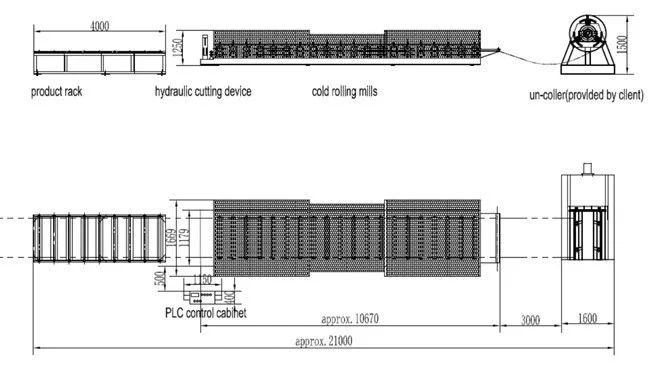

Profile Drawing/Layout/Equipment reference pictures:

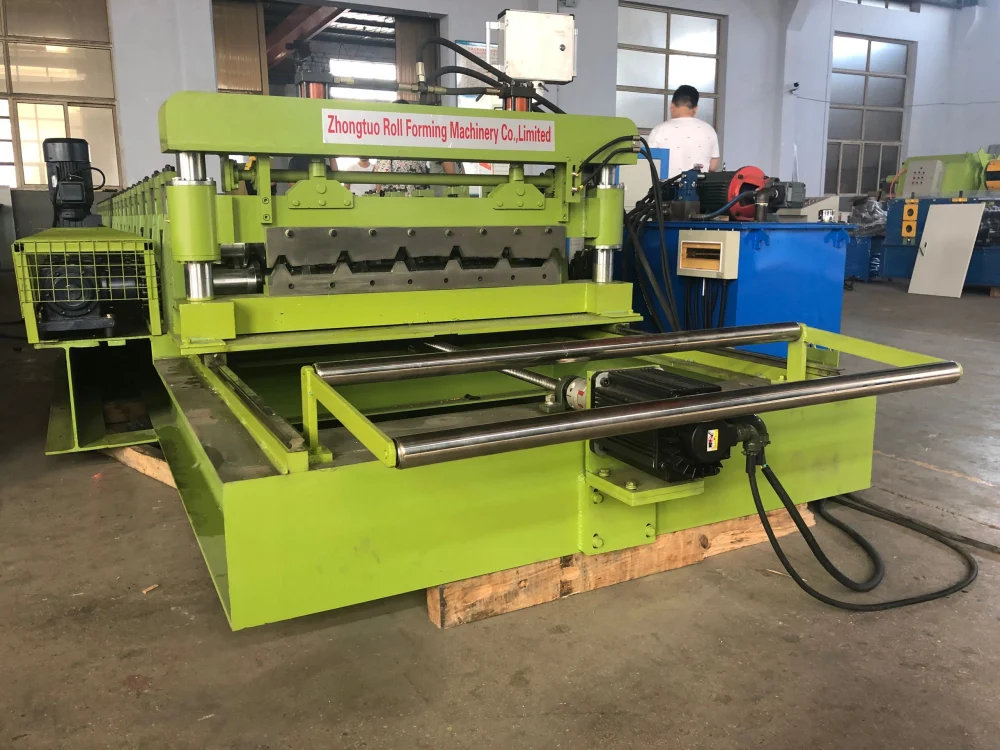

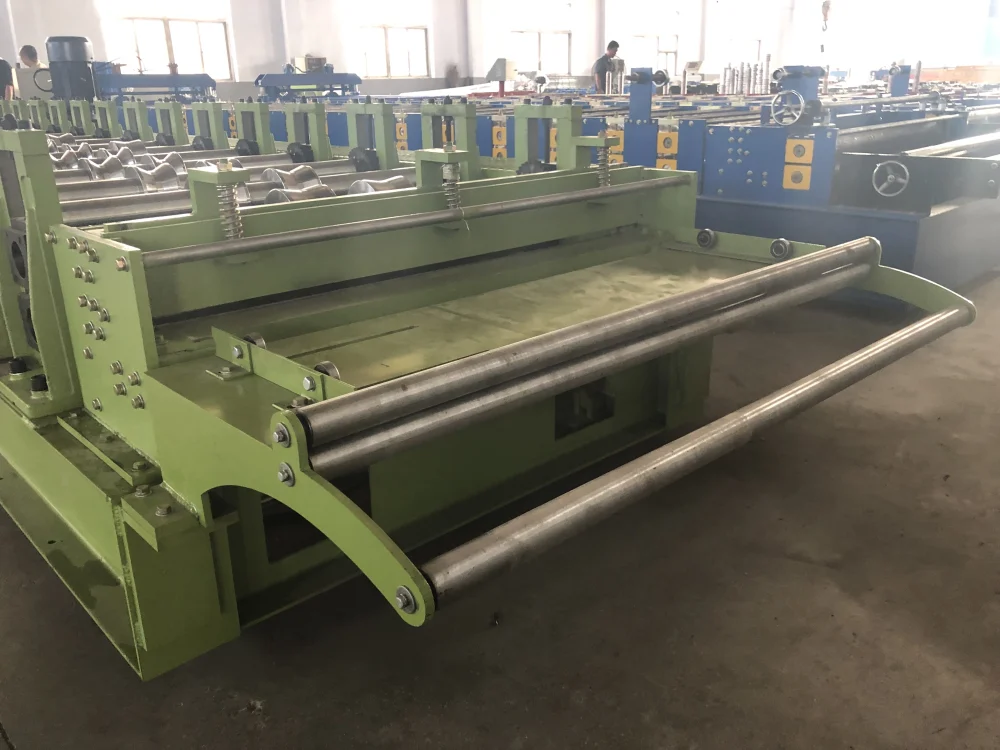

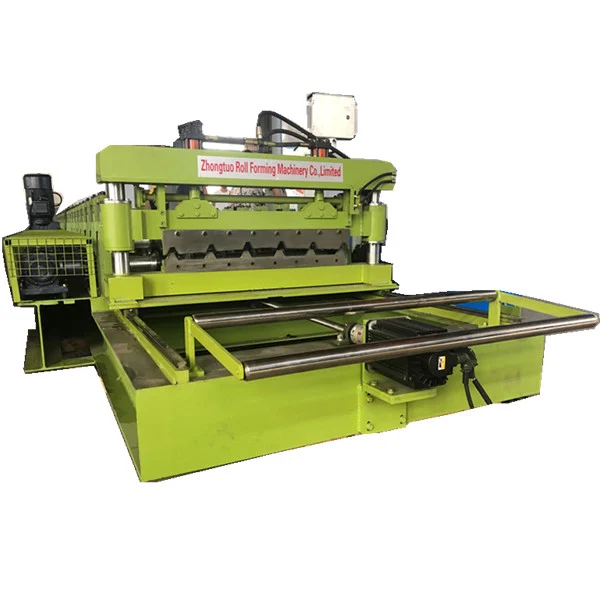

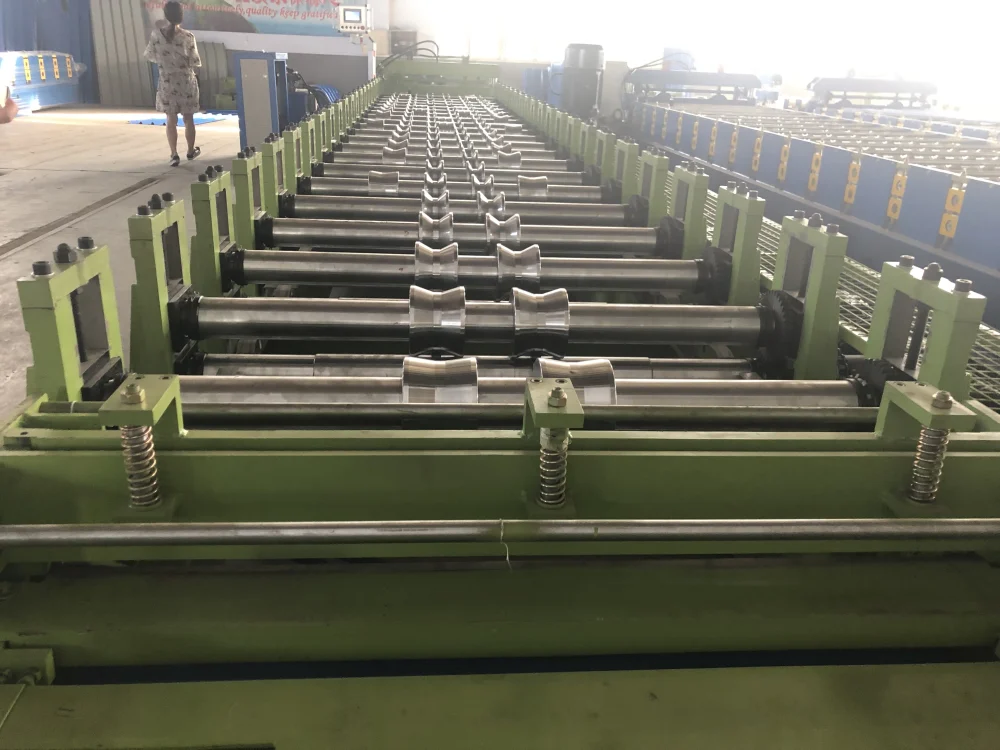

More pictures of TN40 roof panel machine:
