CORRUGATED SHEET ROLL FORMING MACHINE

Corrugated sheets machine is designed to make the corrugated sheets in batch fully automatically. This machine is good which can produce various width of sheets without any mould change, only adjusting the feeding guiding.
Take a random drawing profile for example:

Introduction of Corrugated Sheet Roll Forming Machine：

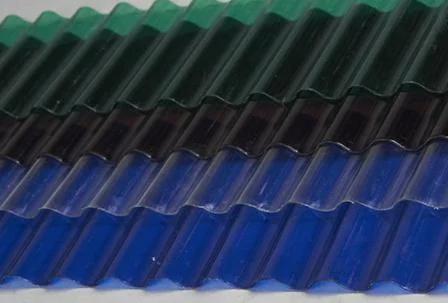

Where the corrugated sheet is used and how it is

Metal corrugated sheet is a very important for wall cladding  metal roofing a  element for commercial, residential and industrial roofing and walling. The traditional shape of corrugated material is the round wavy style derived from sinus curve. And today a lot of corrugated profiles come out to meet the needs of different applications. If you have your conjugation profile, let’s customize the corrugated sheet roll forming machine for you.  Furthermore Believe Industry have several design of metal sheet roll forming machines for corrugated sheets. And we are the manufacturer of such Roll Forming Machine.

What’s Corrugated Sheet Roll Forming Machine and how to adjust different coil width

Corrugated sheets roll forming machine is very special, Because it accept different input width coil to get different out width product. ZT have 18-76.2-1000 type machine, it’s obvious that 1000mm output width is the standard width or design width. While you use 1250mm width coil, you will get 1000mm corrugated sheet. While 1000mm width coil, 838mm output. And while 914mm width coil, 762mm output product, only adjust the feeding guide.
ZT also have Mini Corrugated Sheets Roll Forming Machine, the product is famous in South African

Technical Specification of the corrugated sheet roll forming machine

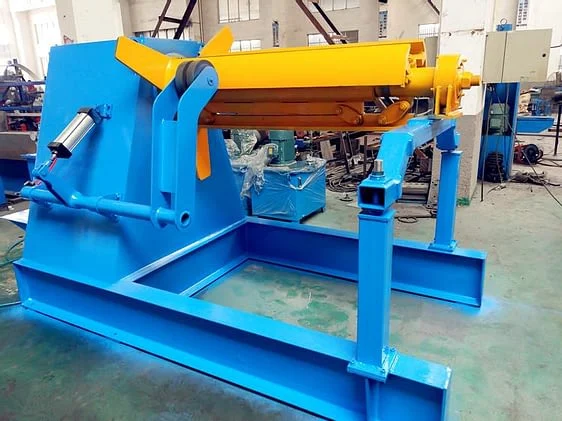

5Ton Hydraulic Decoiler

1. Structure And Function: Steel plate and beam
2. welded structure, used for supporting and uncoiling the steel strips.
3. Decoiler Mandrel Expansion And Tension: Hydraulic expansion and tension, hydraulic power offered by 4kw electric motor
4. Mandrel Expansion Range: 480mm to 560mm
5. Decoiling:5kw motor power for decoiling
6. Decoiling Speed: 0-15m/min, adjustable
7. Speed Control: By frequency converter, YASKAWA brand
8. Maximum Capacity: 5000kg
9. Coil I.D: 508mm; Max Coil O.D: 1350mm

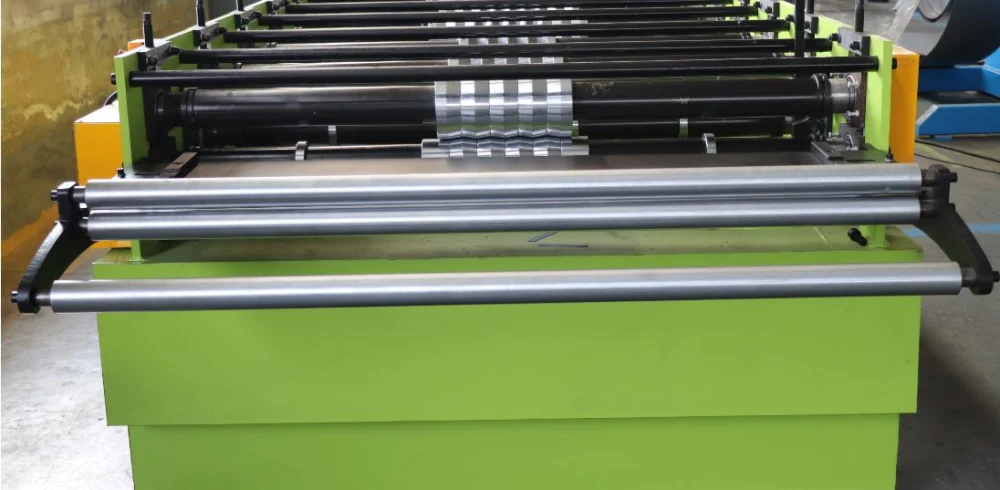

Feeding And Guiding with manual cutter or hydraulic cutter:

1. Feeding Width:600mm to 1450mm
2. Guiding Adjust: Manual rotate the side hand-wheel to adjust

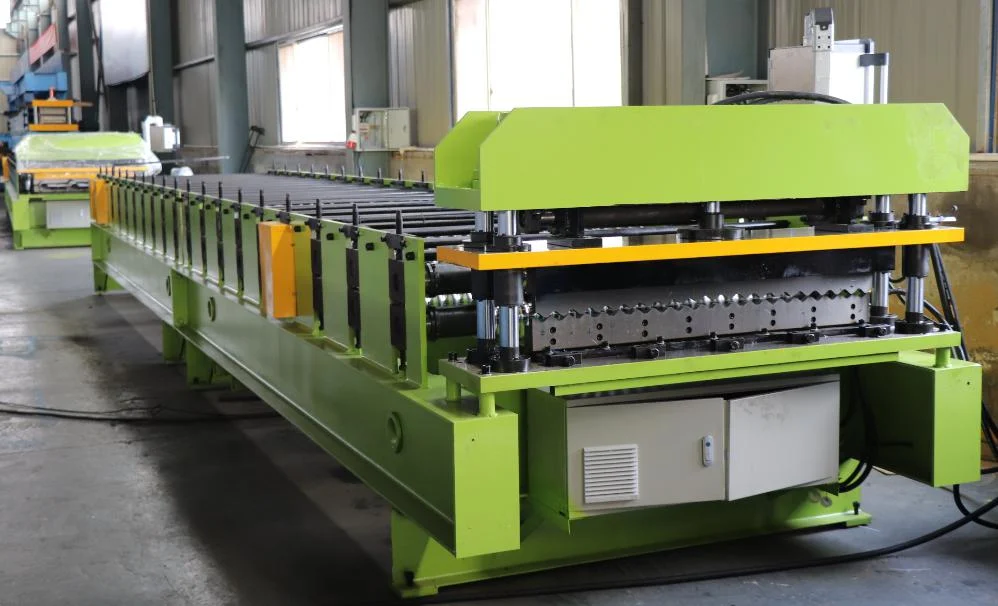

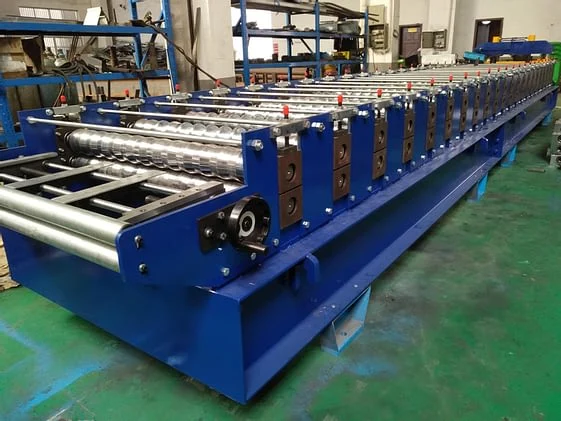

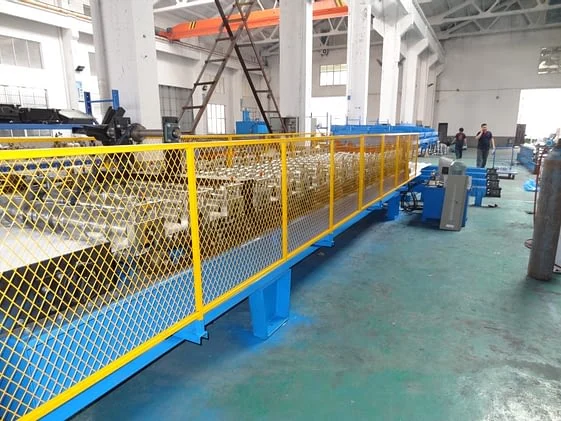

Roll Forming Machine

1. Machine Structure: Adopt H beam steel welded frame as the machine base, steel plated welded on the machine machine as the roller stands
2. Roller Station/Forming Steps: 24 forming steps
3. Material Thickness: 16mm to 0.4mm
4. Shaft Material: 40Cr; Diameter: 80mm

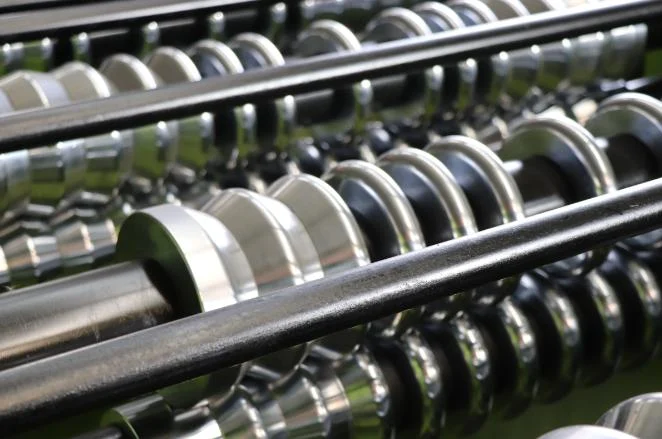

5. Roller Material: 45 steel, fine machining;surface with 0.05mm chromeplated
6. Main Motor Power for Corrugated Sheet Machine: 5kw
7. Forming Speed: 10-15m/min
8. Drive: Chain drive
9. Speed Control: by Frequency Inverter

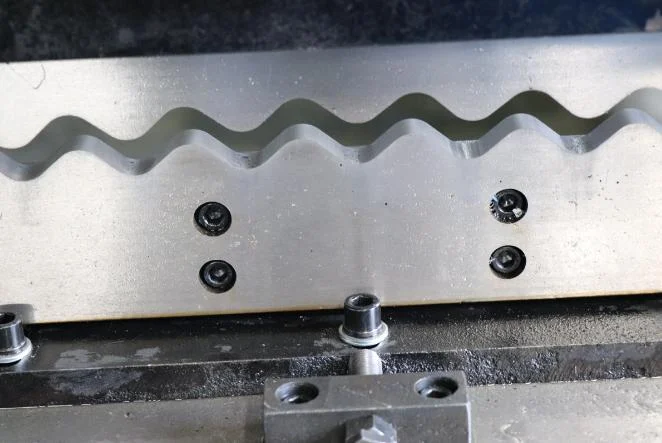

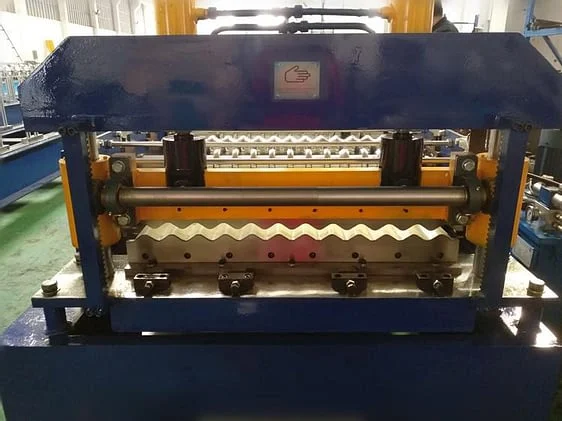

Hydraulic Cutting Device

1. Cutting Length And Quantity: Controlled by PLC control system, users input required length and quantity on touch screen
2. Material Of Cutting Mold: Cr12Mov, HRC 60-62
3. Cutting Length Measuring: Encoder measuring; Ormon Brand
4. Hydraulic Station Power:4kw
5. Tolerance Of Cutting Length: +/-5mm

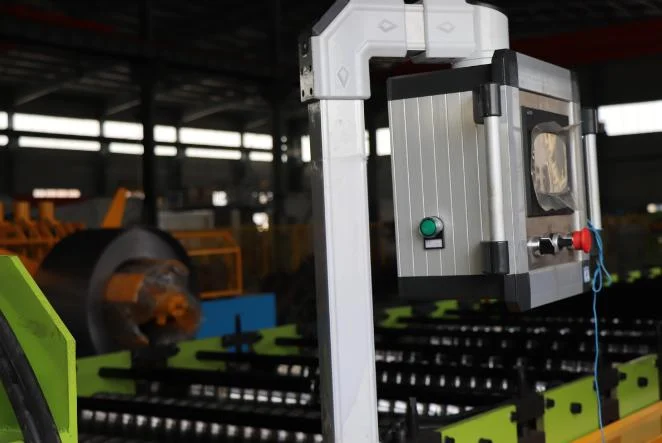

Control System

1. User input the length and quantity of the product through touch screen, the touch screen will show the working status of the corrugated sheet machine
2. PLC Control Box: 700mmx300mm x 1000mm(L x W x H)
3. Control System: Panasonic PLC control system
4. Encoder: Omron Brand
5. Inverter: Yaskawa Brand
6. Pressure Of Hydraulic Station: ≧12Mpa
7. Current: 380V Direct Current, 50Hz, 3 Phase

Collection Table

Function: Support the final products
Type: Angle steel welded frame, roll-path type
Size: According to final design, 2 pieces
