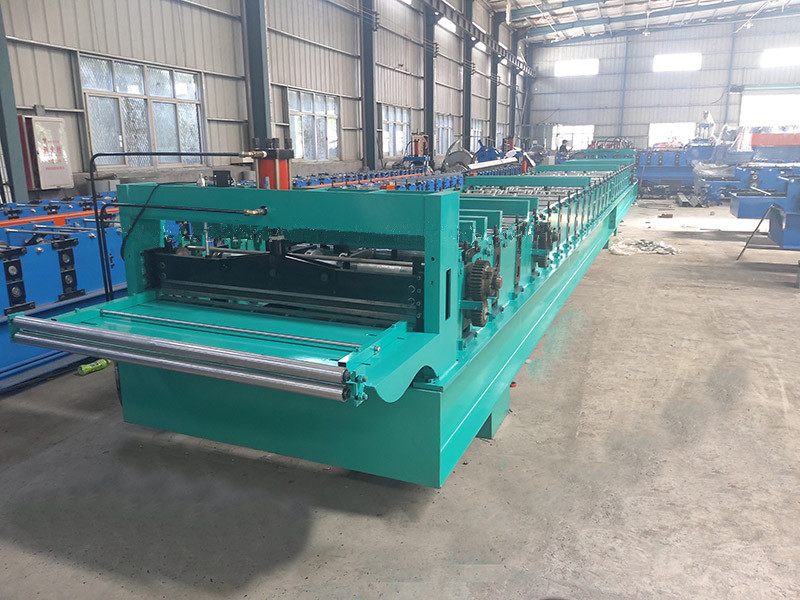

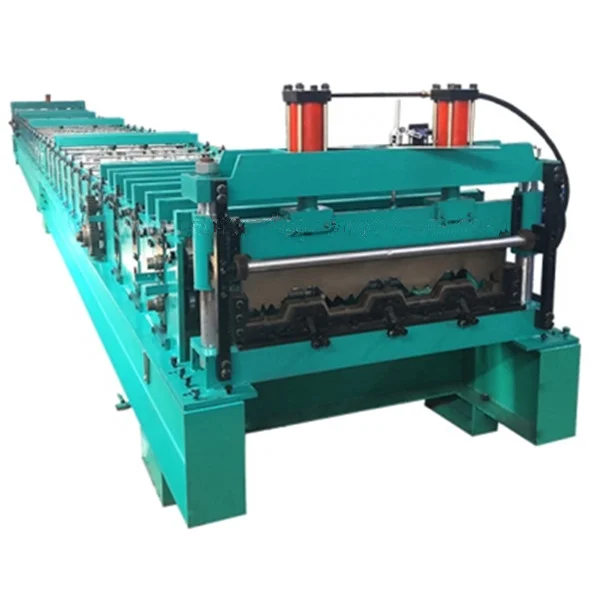

Metal Floor Decking Roll Forming Machine

Floor Decking Roll Forming Machine

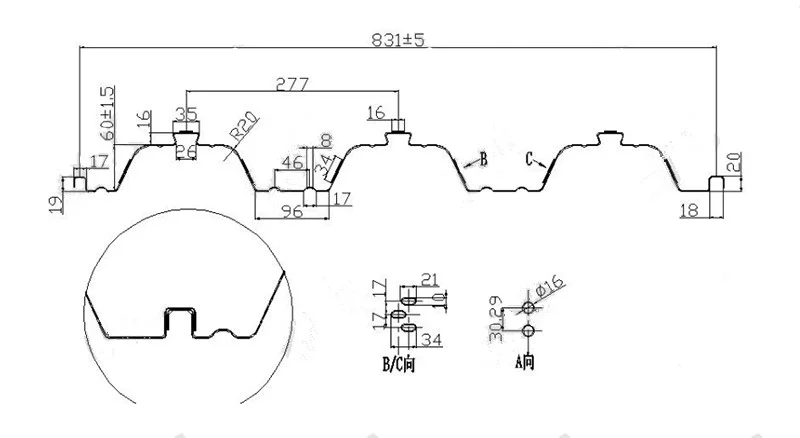

The drawing profile is as following:

The parameter of the material:
Effective Width:831mmFeeding Width:1219mm
Material Thickness:0.8-1.5mmApplicable Material:Gl
With Yield Strength:39OMpa

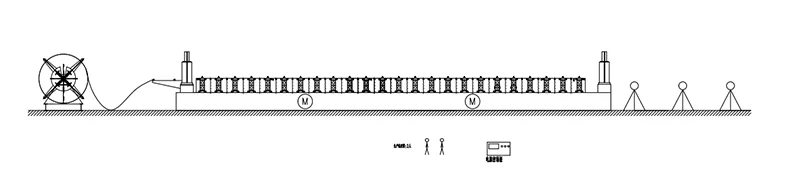

The work flow of metal floor decking roll forming machine
5T Hydraulic Decoiler→Hydraulic Pre-Cutter Device→Feeding GuideDevice→Roll Forming System-Hydraulic Post Cutter Device→ExitRack

Machine parts

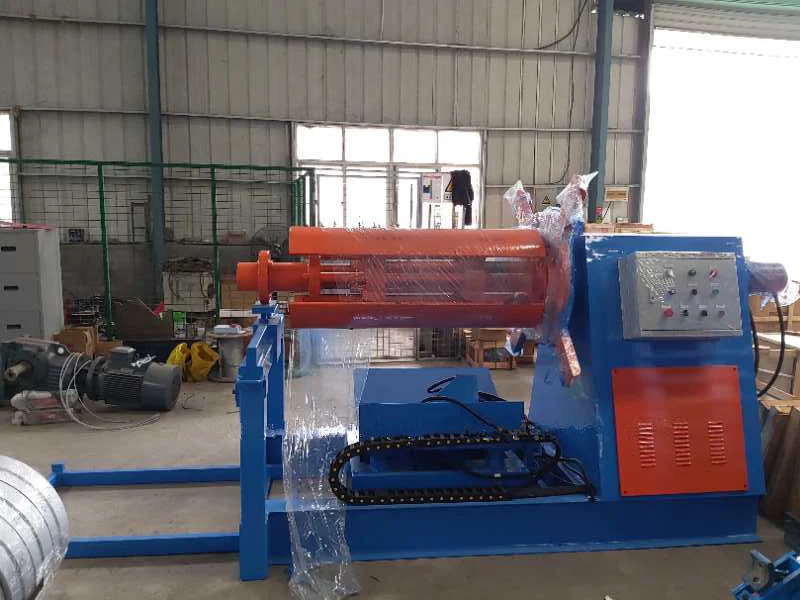

1) 5T Hydraulic Decoiler:one set
Hydraulic Control Steel Coil lnner Bore Shrinkage And StopAuto Feeding Power And Self-Stop Device
Max Feeding Width:1250mm
Inside Coil lD Range:508mm+30mm,Outside Diameter:1600mmmotor:3KW,oil pump motor:2.2Kw
capacity:Max.5 Ton,With Coil Car

2) Hydraulic Pre-Cutter Device
Shearing Cutter Material Use Cr12MoV Steel(=SKD11 Steel)

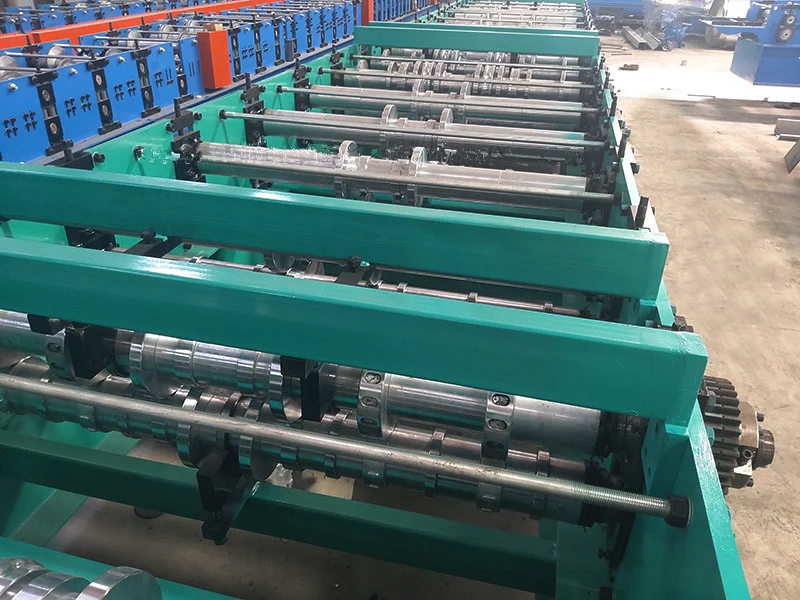

3) Main Machine

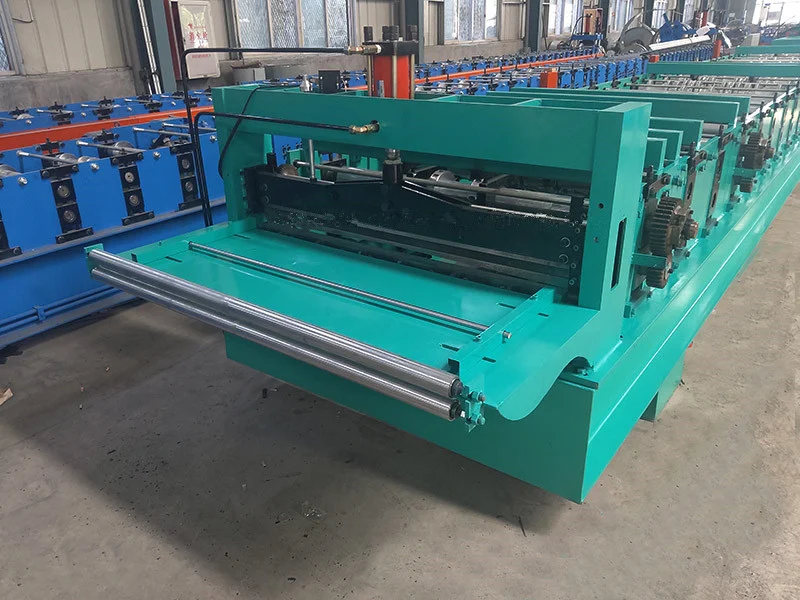

with Feeding Material Guide Device

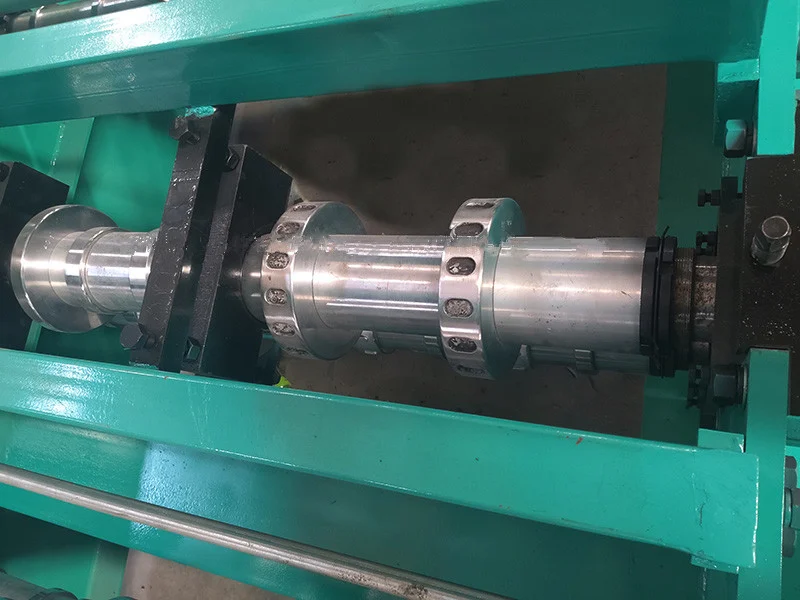

Embossing Rollers Manufactured From GCr15 Steel(=EN31 Steel)Heat Treatment,HRC 58-62 Degree

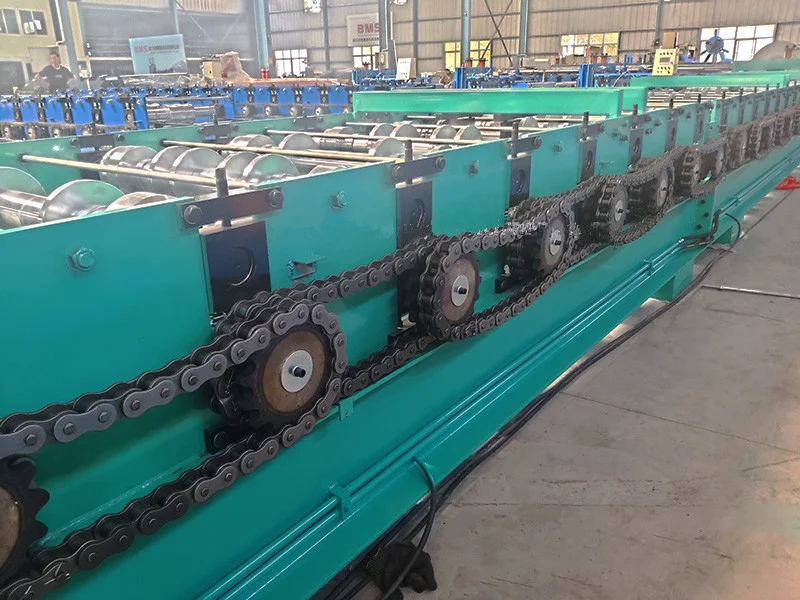

Gear/Sprocket Driving,up 32-step To Form
Main Motor=18.5*2KW,Frequency Speed ControlRoll forming Speed:18-22m/min

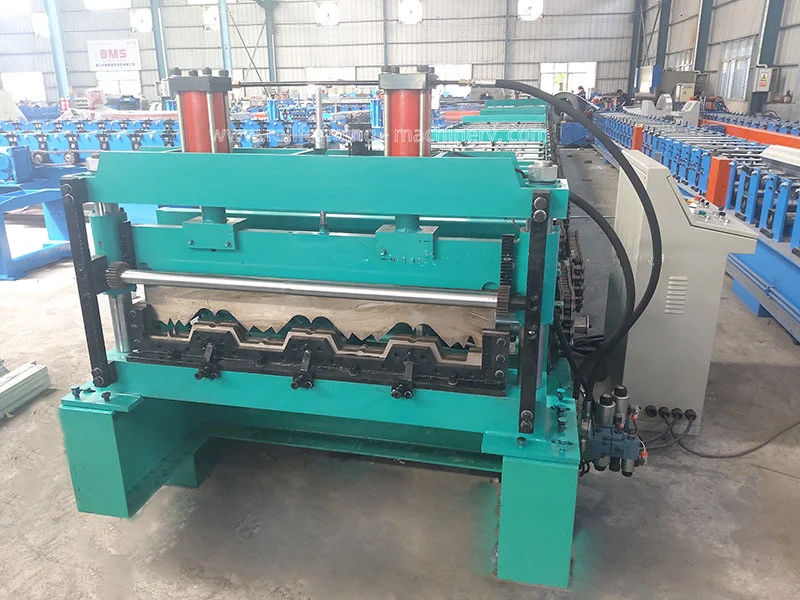

4)Post Hydraulic Cutting Device
Post To Cut,Stop To Cutting,Two Pieces Type Of Cutting BladeDesign
Hydraulic Motor:5.5KW;Cutting Pressure:0-16Mpa
cutting Tool Material:Cr12MoV(= SKD11 Steel),Heat treatment toHRC58-62
With At Least One Million Times Of Cutting Life
The Cutting Power ls Provided By The Main Engine Hydraulic Station
