Double Layer Roll Forming Machine for Saving Budget and Space

Can you imagine one roof machine being used as two completely different machines, that is to say, it can produce two completely different kinds of roofing tiles, like IBR and corrugated. Click here, the double layer roll forming machine will satisfy you.
Now, I will introduce it briefly, click here to know more, please.

What’s Double Layer Roll Forming Machine

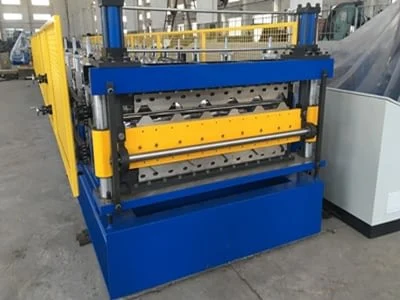

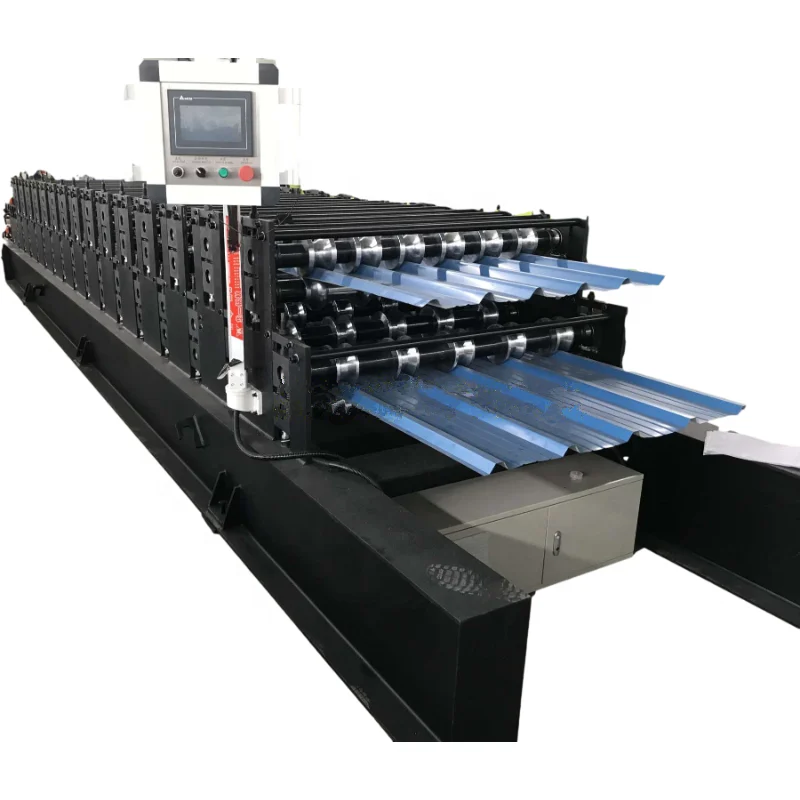

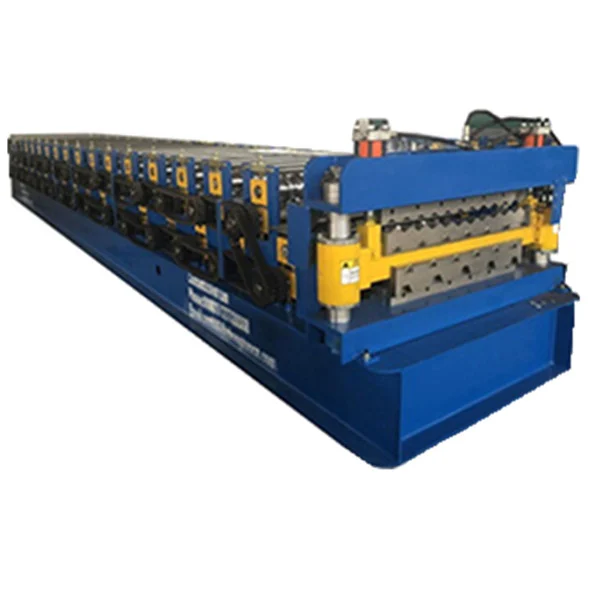

Double Layer Roll Forming Machine has alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another one (like corrugated sheeting )are mounted on the upper stands. Though can’t it produce the 2 profiles at the same time, it can save much more space and budget, because the whole line will use only one uncoiler, one cutoff unit, one controlled box.



Double Layer Roll Forming Machine Components

1. Uncoiler( Manual or Automatic)
2. 2 Roll Forming Mills(stands) with own guiding device

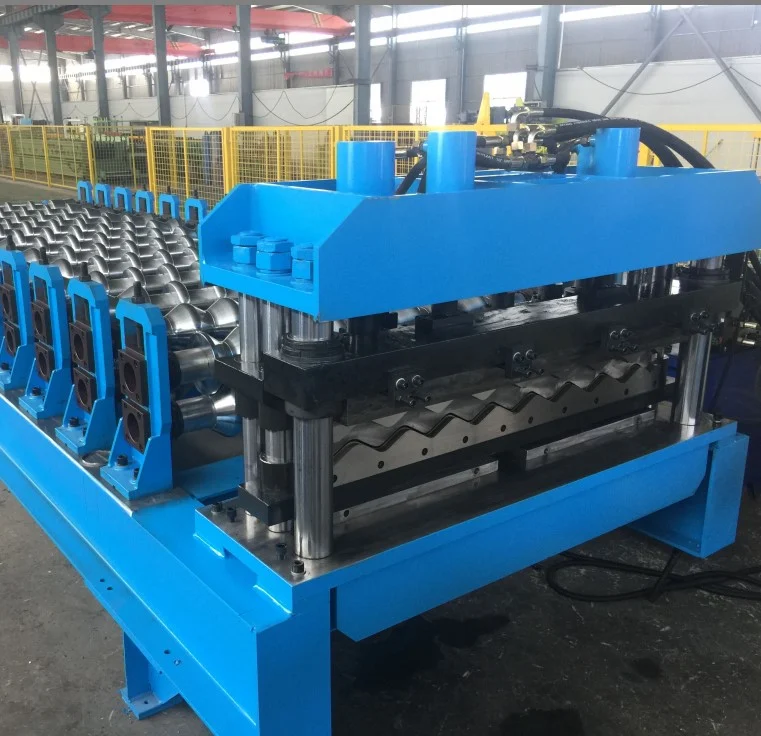

3. Cutting Device, 2 couples of blade assembled in one device to suit the 2 profiles
4. Controlled Box, 2 pieces of Encoder for both mills
5. Hydraulic Station
6. Collection Table, the height is adjustable to suit to product exit height.

Brief Specifications

1. Uncoiler Capacity:  5 Ton( Option: 10 Ton)
2. Material Width: 500-1500mm, subjected to the profile design
3. Material Thickness: 0.18-0.8, subjected to profile design
4. Line Speed: 12-15m/min( High speed is a option)
5. Motor Power: 5.5KW As usual
6. Machine structure: Siding Plate, Chromed Stands, Iron Cast cassette
7. Material of Blade: CR12
8. Hydraulic Power； 4KW as usual
9. PLC: Siemens or Panasonic
10. Encoder: Omron
11. Inverter: Yaskawa
12. Touch Screen: MCGS or Siemens
13. Controlled box adopt Aviation plug  for easy connection the wires
14. Voltage: 380V, 50HZ or customized(We can design different kinds of profile for machine, as every customer's requirement.)
