Double layer roofing sheet roll forming machine

Double layer machine, Double layer roofing sheet machine, Double layer roof panel machine
Double layer roofing sheet roll forming machine is a kind of roofing sheet machine that one machine can produce 2 types different roofing sheet. This machine the working space is smaller than 2 sets single layer roofing sheet machine,and at the same time the cost is cheaper than 2 sets single layer roofing sheet machine.This is a good option for the customers who want supply more options for the final clients.
Main parameters:
Material thickness: 0.3-0.8 mm
Input material width: 1000mm for both
Effective width after forming: 750mm & 825 mm & 840mm
Voltage: 380v 50hz 3phase or as customer require
Working speed: 0-15 m per minute
Working space: about 18m x 1.5m x 1.5m
Processing material: GI & PPGI & PPGL

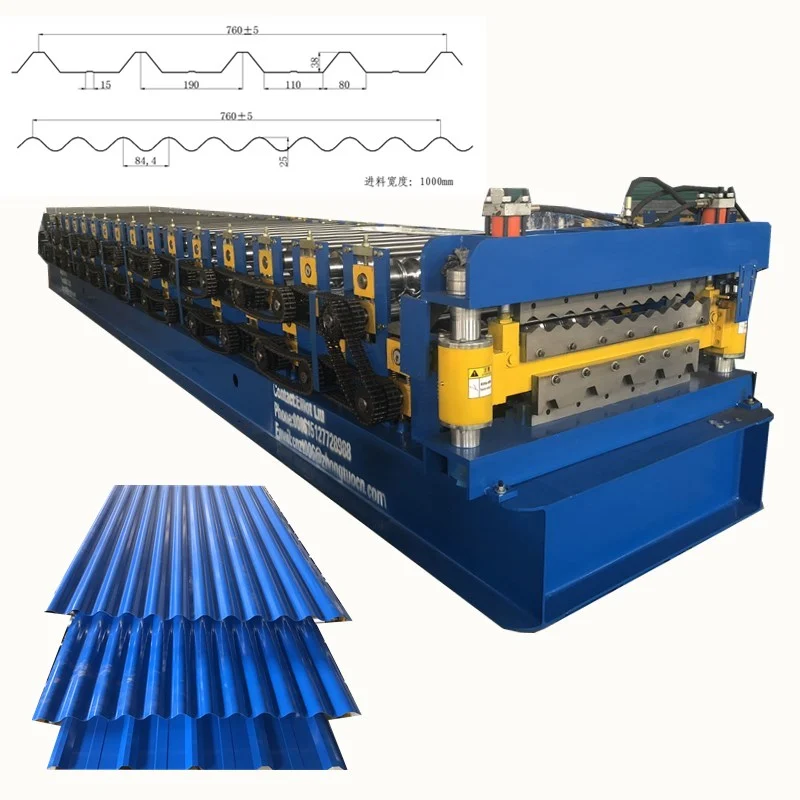

Here attached is our machine photos for you reference:

Customer requirements:

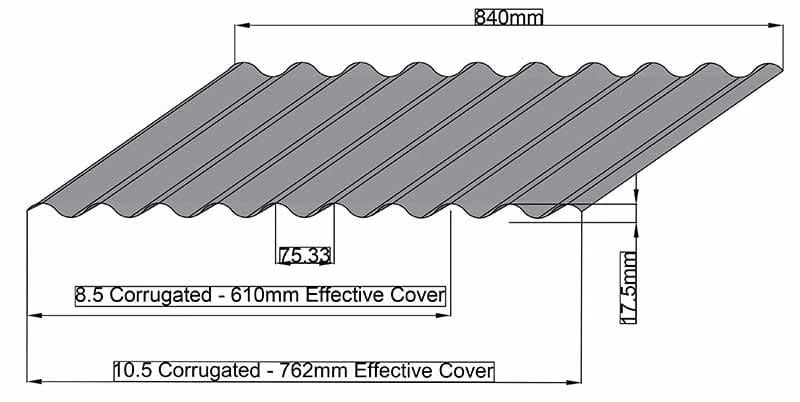

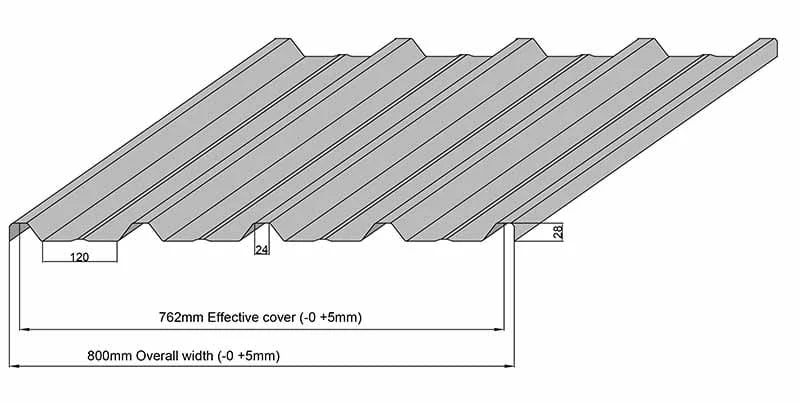

Top layer profile drawing and Bottom layer profile drawing:
Here the profile drawings for you reference:



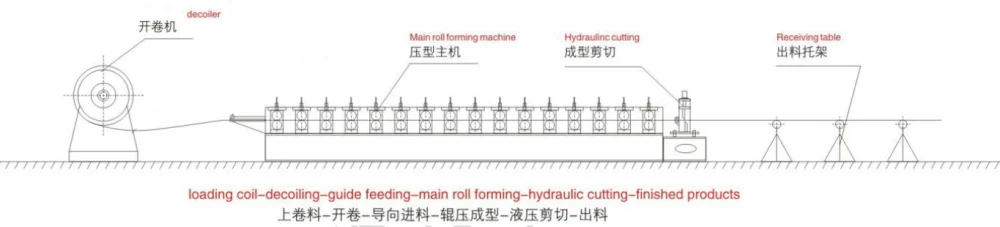

Machine components:
Manual decoiler 2 sets; main roll forming machine (feeding-forming-cutting) 1 set; No power receiving table 2 sets;
Hydraulic station 1 set; Electric controller 1 set; Maintain tools 1 set; Instruction manual 1 brochure; Spare parts as so on.

Main Roll Forming System Parameters:
Length of the main part: about 8000 mm х 1500 mm х 1300 mm
Weight of main part: 6.5 tons
Voltage: 380v 50hz 3phase or as customer’s requirement
Roller fixer: Middle plate
Frame: 350 H steel welded
Drive mode: Double chain 2 inches
Material of rollers: 45# steel with surface hard chromium plating
Material of shafts: 45# steel with quench treatment
Diameter of shafts: φ 75 mm
Number of rollers: 13 rollers + 13 rollers
Main motor power: 5.5 kw
Material thickness: 0.3-0.8 mm
Working speed: 0-15 m per minute
Processing material: GI & PPGI & PPGL
​​​​​​​Roofing sheet application photos for you reference:
