Zhongtuo Solar Panel Bracket Roll Forming Machine for PV Mounting System Manufacturing

Transform Your Solar Power Construction with Our Roll Forming Machine

In modern photovoltaic power plants, efficiency, precision, and reliability are key. Our Solar Panel Bracket Roll Forming Machine is designed to deliver all three, helping you produce high-quality solar panel support brackets with rapid assembly and intelligent operation.

Whether you are building large-scale solar farms, industrial rooftop PV systems, or floating solar projects, our machines provide the precision and flexibility your projects demand.

Advantages for Your Solar Projects

1. Boost Construction Speed: Automate bracket production and installation, saving time and labor.

2. Ensure Consistent Quality: CNC precision guarantees uniform solar panel support brackets.

3. Adaptable to All Project Sizes: Ideal for utility-scale, commercial, residential, and special scenario PV stations.

4. Smart Operation & Maintenance: Remote monitoring and intelligent adjustments improve long-term efficiency.


Why Choose Our Solar Panel Bracket Roll Forming Machine

1. High-Precision Bracket Production

Equipped with advanced CNC technology and high-precision positioning, our machine ensures every solar mounting structure is formed accurately. This guarantees consistent installation quality and improves the long-term stability of photovoltaic brackets.

2. Intelligent and Automated Operation

Our PLC control system allows fully automated production, including batch processing, length setting, and quantity control. Reduce labor costs and human error while improving construction efficiency.

3. Strong Environmental Adaptability

From desert solar farms to mountainous regions, and from industrial rooftops to floating solar panels, our equipment adapts to any environment. With adjustable-height installation machines for agricultural and water-surface PV projects, you can balance power generation and environmental requirements.

Perfect for Any Photovoltaic Project

• Centralized Solar Power Stations: Combine bracket assembly robots and CNC production lines to quickly install solar support brackets on a large scale.

• Distributed PV Systems: Lightweight, flexible, and easy-to-install roof support machines for industrial buildings, residential rooftops, and commercial complexes.

• Special Scenario PV Stations: Floating solar, agricultural-light complementary, or fishing-light complementary projects are supported by customized installation equipment for height adjustment and precision alignment.


Key Specifications

• Formed Material: GI, Thickness 0.8–1.8 mm

• Decoiler: 3 Tons (manual decoiler included)

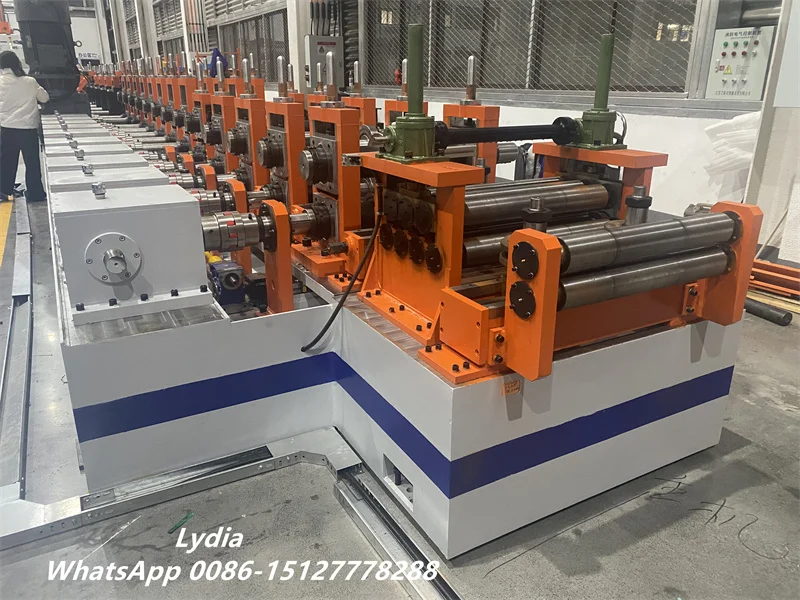

• Main Body: 16 roller stations, 60 mm solid shaft, GCr15 rollers, 400 H steel frame, gear and chain drive

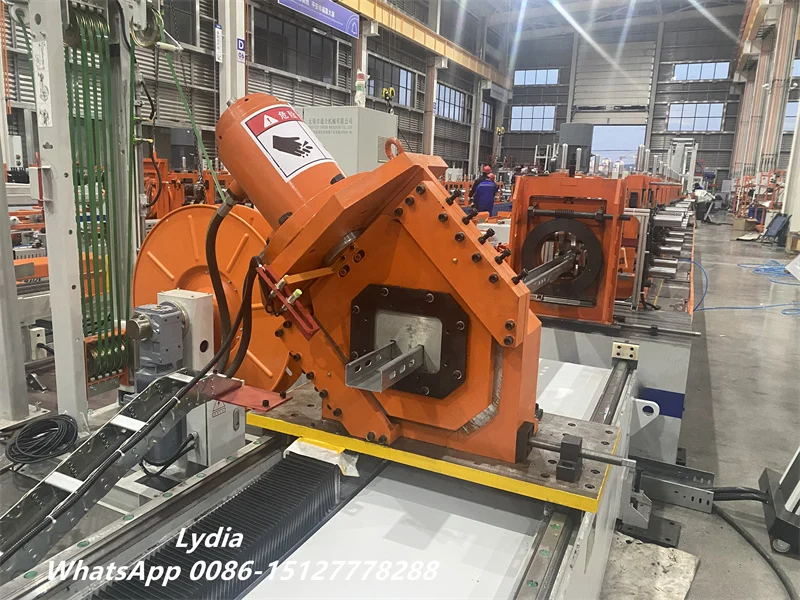

• Cutter: Automatic, CR12MOV, scratch-free

• Motor Power: 7.5KW × 2, Hydraulic 15KW

• Voltage: 380V, 50Hz, 3 Phase (customizable)

• Control System: PLC with multi-language support, batch and quantity settings

• Forming Speed: Up to 25 m/min (depending on profile and material thickness)

• Machine Size: 15000 × 1800 × 1600 mm, Weight 5T
