High Speed Automatic Omega Purlin Roll Former Metal Top Hat Purlin Roll Forming Machine High-Speed Top Hat Section Roll Forming Machine with Servo Flying Cutoff This machine, exported to Canada, is expertly designed to manufacture steel top hat sections
Detailed Content
Specializations of High-Speed Top Hat Section Roll Forming Machine
Steel framing machines for wall panels, trusses, and floor joists in residential and commercial buildings.Prefabricated steel systems for modular construction.Framing solutions for low-rise and high-rise buildings.Equipment for walls, floors, beams, roofing, and prefabricated modules like kitchen and bathroom pods.

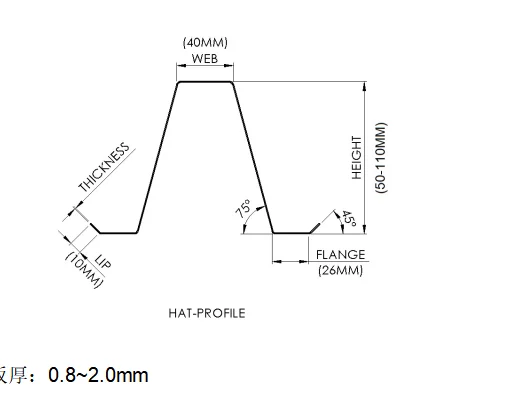

Profile drawing:
High-Speed Top Hat Section Roll Forming Machine with Servo Flying Cutoff
This machine, exported to Canada, is expertly designed to manufacture steel top hat sections tailored to client specifications. By utilizing the Hat Section Cold Roll Forming Machine, profiles are created with high precision and production speeds reaching up to 15 meters per minute. The line is controlled by an advanced PLC system, allowing operators to easily input production details such as hole distances and cutting lengths through a touchscreen interface. Once programmed, the machine, including features from the Omega Purlin Roll Former, operates automatically and halts after completing the assigned production.
ZTRFM is a leader in manufacturing cutting-edge roll-forming machines like the Omega Purlin Roll Former and the Hat Section Cold Roll Forming Machine, designed for the construction of light steel frames and cold-formed steel structures. Since 2009, ZTRFM has collaborated closely with clients to deliver innovative solutions. By combining advanced technology, robust designs, and easy-to-use systems, ZTRFM ensures its customers stay ahead in competitive markets. All machines, including the Omega Purlin Roll Former, come with a Windows-based control system compatible with CSV files from various design software, giving clients flexibility and convenience. ZTRFM is your go-to partner for intelligent manufacturing solutions for multi-story prefabricated buildings, offering reliable, efficient.

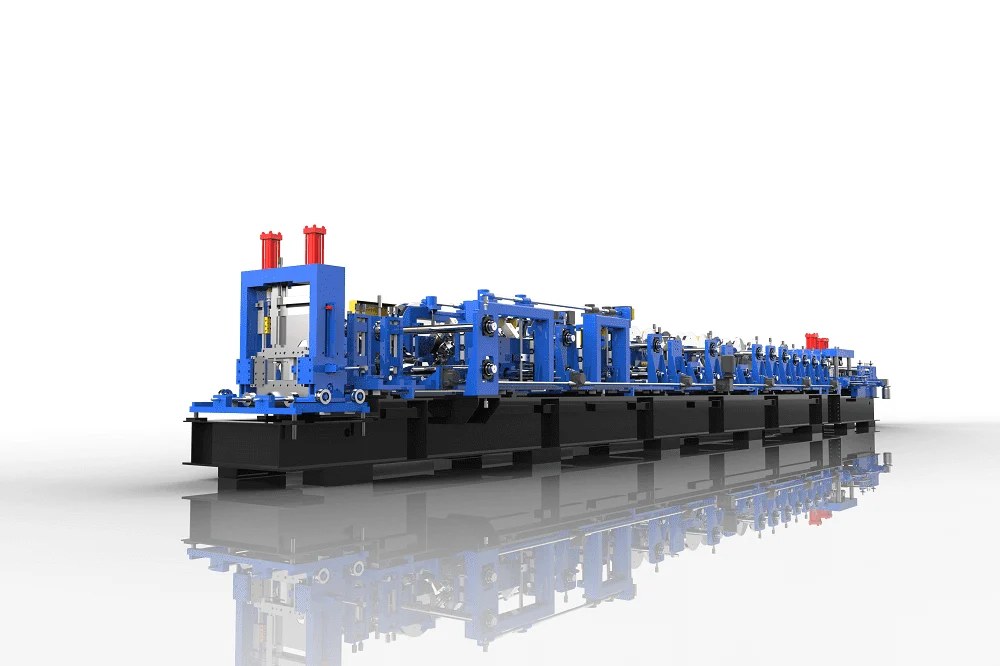

Top Hat Section Cold Roll Forming Machine
Machine Specifications of Top Hat Section Cold Roll Forming Machine
| Type of material to be processed: | C.R. | GI (550 MPA ) | |
| No. of Station | 16 | |
| Length of profile sheet: | No limit | |
| Total connected power required: | 35 Kw. | |
| Coil Width range: | 150mm to 300mm | |
| Coil Thickness range: | 0.80 mm to 2 mm | |
| Coil weight (Allowed on Decoiler): | Up To 5000 Kg. | |
| Production line speed: | Without Cutting & Punching: | 0 to 20 MPM |
| With Cutting & Punching: | 5 to 7 MPM (as per job length) | |
| Automation level in performance | P.L.C. controlled length | |
| Accuracy level | length: ±2 M.M. | |
| BEND/TWIST: 1.5 MM/MTR. | ||
| DIMN:+/- 2 M.M. | ||

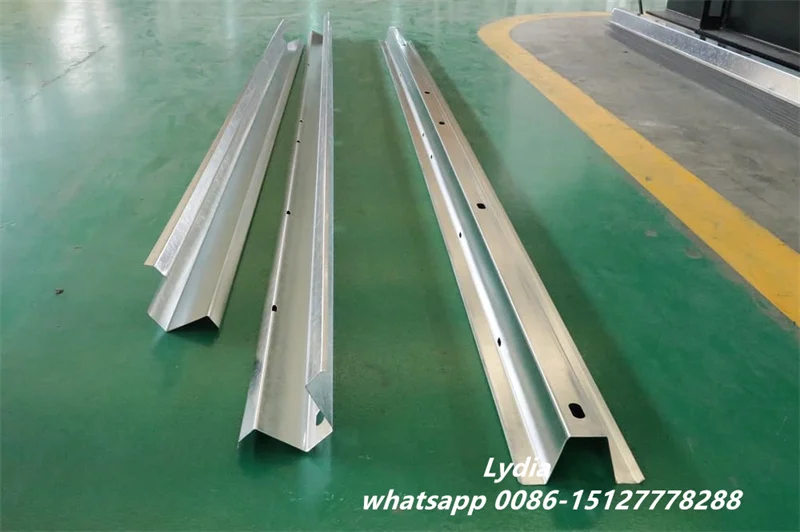

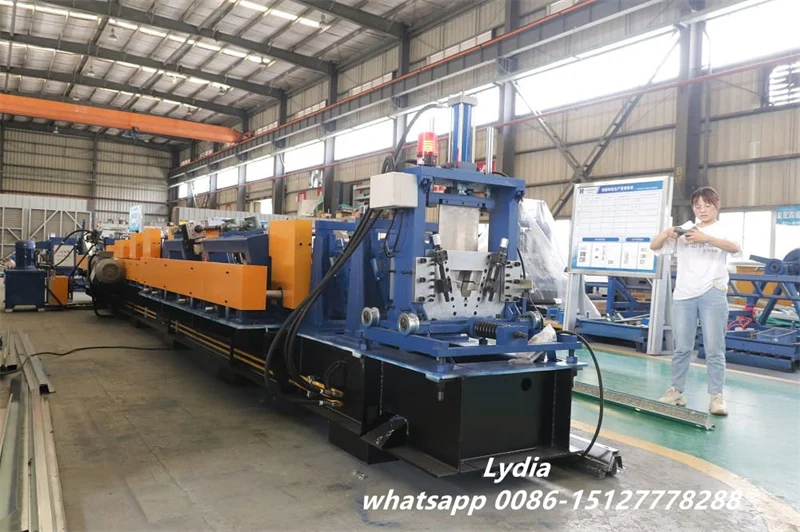

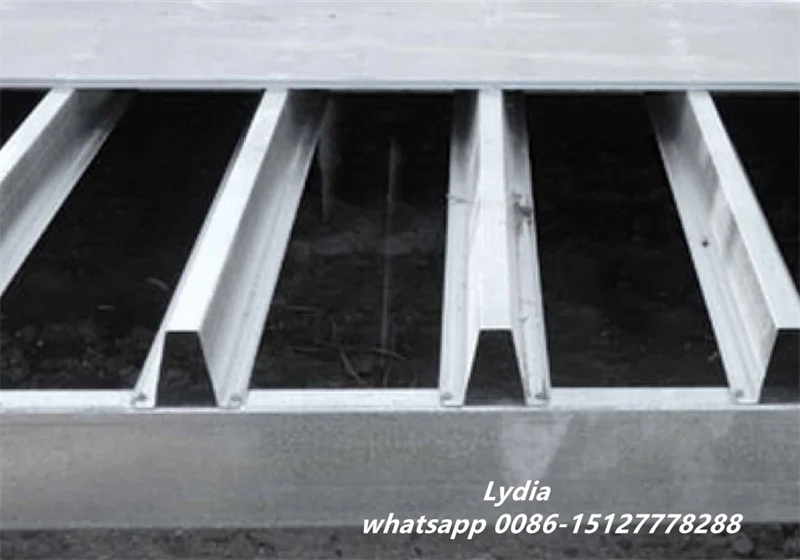

More Pictures of High-Speed Top Hat Section Roll Forming Machine：
